The circuit shown is used to charge and then discharge a capacitor C - Scottish Highers Physics - Question 19 - 2018

Question icon

Question 19

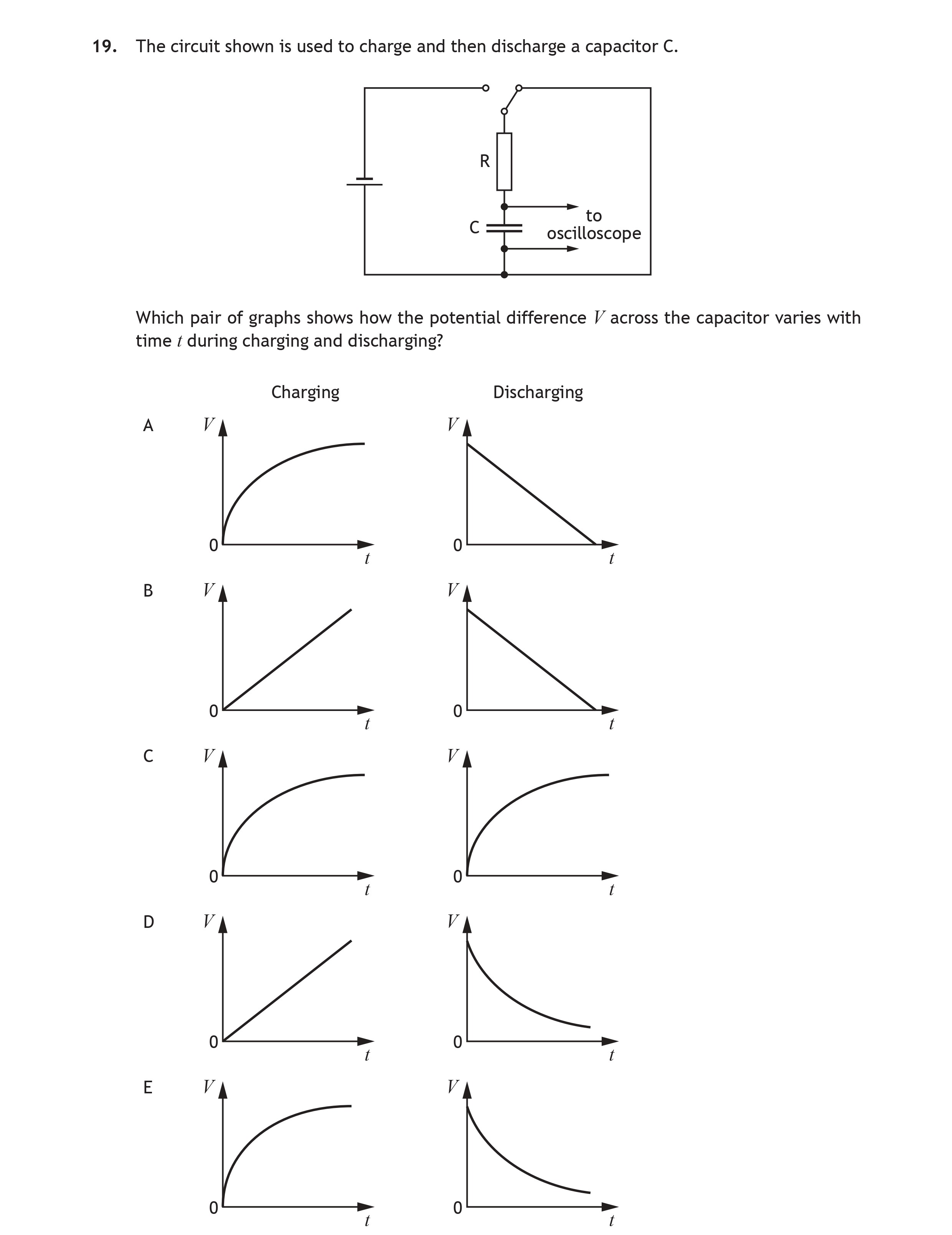

The-circuit-shown-is-used-to-charge-and-then-discharge-a-capacitor-C-Scottish Highers Physics-Question 19-2018.png

The circuit shown is used to charge and then discharge a capacitor C. Which pair of graphs shows how the potential difference V across the capacitor varies with tim... show full transcript

Worked Solution & Example Answer:The circuit shown is used to charge and then discharge a capacitor C - Scottish Highers Physics - Question 19 - 2018

Step 1

Charging

96%

114 rated

Answer

During the charging process, the potential difference V across the capacitor increases exponentially as it approaches the supply voltage. This behavior can be described by the equation:

V(t)=V0(1et/RC)V(t) = V_0 (1 - e^{-t/RC})

where V0V_0 is the maximum potential difference (supply voltage), R is the resistance, and C is the capacitance.

This means that the graph of V against t during charging will start from 0 and rise asymptotically towards V0V_0. In the options provided, only graph E represents this charging curve correctly.

Step 2

Discharging

99%

104 rated

Answer

During the discharging phase, the potential difference V decreases exponentially as the capacitor releases its stored energy. This can be described by the equation:

V(t)=V0et/RCV(t) = V_0 e^{-t/RC}

where V0V_0 is the initial potential difference across the capacitor at the start of discharging. Thus, the potential difference will start at V0V_0 and decrease towards 0. Again, only graph E accurately reflects this behavior for discharging.
