A student makes the following statements about metals, insulators, and semiconductors - Scottish Highers Physics - Question 23 - 2023
Question 23

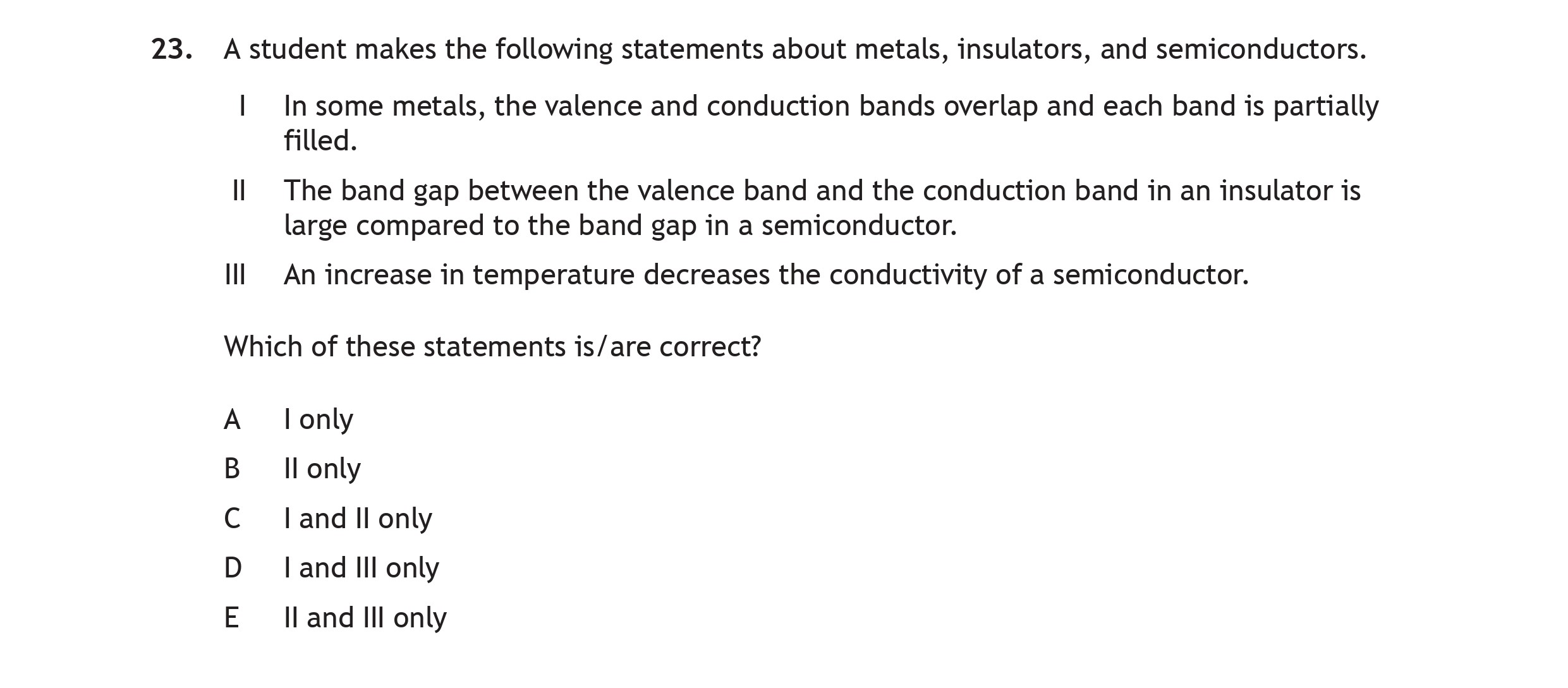

A student makes the following statements about metals, insulators, and semiconductors.
I In some metals, the valence and conduction bands overlap and each band is p... show full transcript
Worked Solution & Example Answer:A student makes the following statements about metals, insulators, and semiconductors - Scottish Highers Physics - Question 23 - 2023
Step 1
I In some metals, the valence and conduction bands overlap and each band is partially filled.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This statement is correct. In certain metals, the conduction band overlaps with the valence band, allowing for the free movement of electrons.
Step 2
II The band gap between the valence band and the conduction band in an insulator is large compared to the band gap in a semiconductor.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This statement is correct. Insulators typically have a large band gap (often greater than 4 eV), while semiconductors have a much smaller band gap (around 1 eV), which allows for easier excitation of electrons at room temperature.
Step 3
III An increase in temperature decreases the conductivity of a semiconductor.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This statement is incorrect. An increase in temperature actually increases the conductivity of a semiconductor, as more electrons gain sufficient energy to jump from the valence band to the conduction band.
Step 4
Conclusion
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Given that statements I and II are correct, while III is not, the answer is C: I and II only.
