Question 17

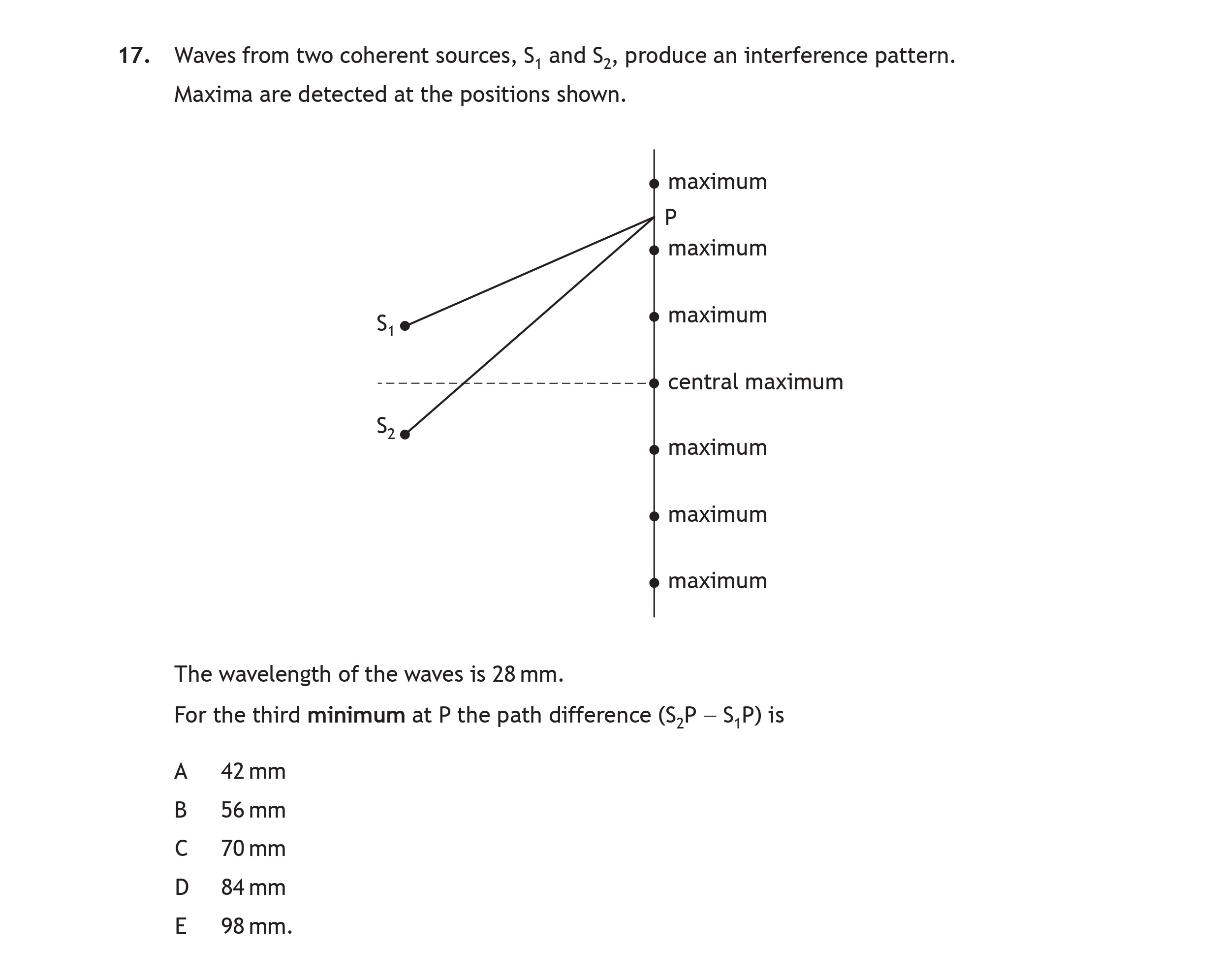

Waves from two coherent sources, S₁ and S₂, produce an interference pattern. Maxima are detected at the positions shown.
The wavelength of the waves is 28 mm.
For ... show full transcript
Worked Solution & Example Answer:Waves from two coherent sources, S₁ and S₂, produce an interference pattern - Scottish Highers Physics - Question 17 - 2019
Step 1
Determine the condition for the third minimum
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The condition for minima in an interference pattern is given by:
S₁P - S₂P = (m + rac{1}{2})\lambda
where ( m ) is the order of the minimum, and ( \lambda ) is the wavelength. For the third minimum, ( m = 3 ). Thus, we have:
S1P−S2P=(3+21)⋅28 mm
Step 2
Calculate the path difference
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Now, calculating the path difference:
S1P−S2P=(3.5)⋅28 mm=98 mm
Step 3
Select the correct option from the choices
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Based on the calculation, the path difference for the third minimum is 98 mm. Therefore, the correct answer is:
E 98 mm.
