Waves from two coherent sources, S₁ and S₂, produce an interference pattern - Scottish Highers Physics - Question 13 - 2018

Question icon

Question 13

Waves-from-two-coherent-sources,-S₁-and-S₂,-produce-an-interference-pattern-Scottish Highers Physics-Question 13-2018.png

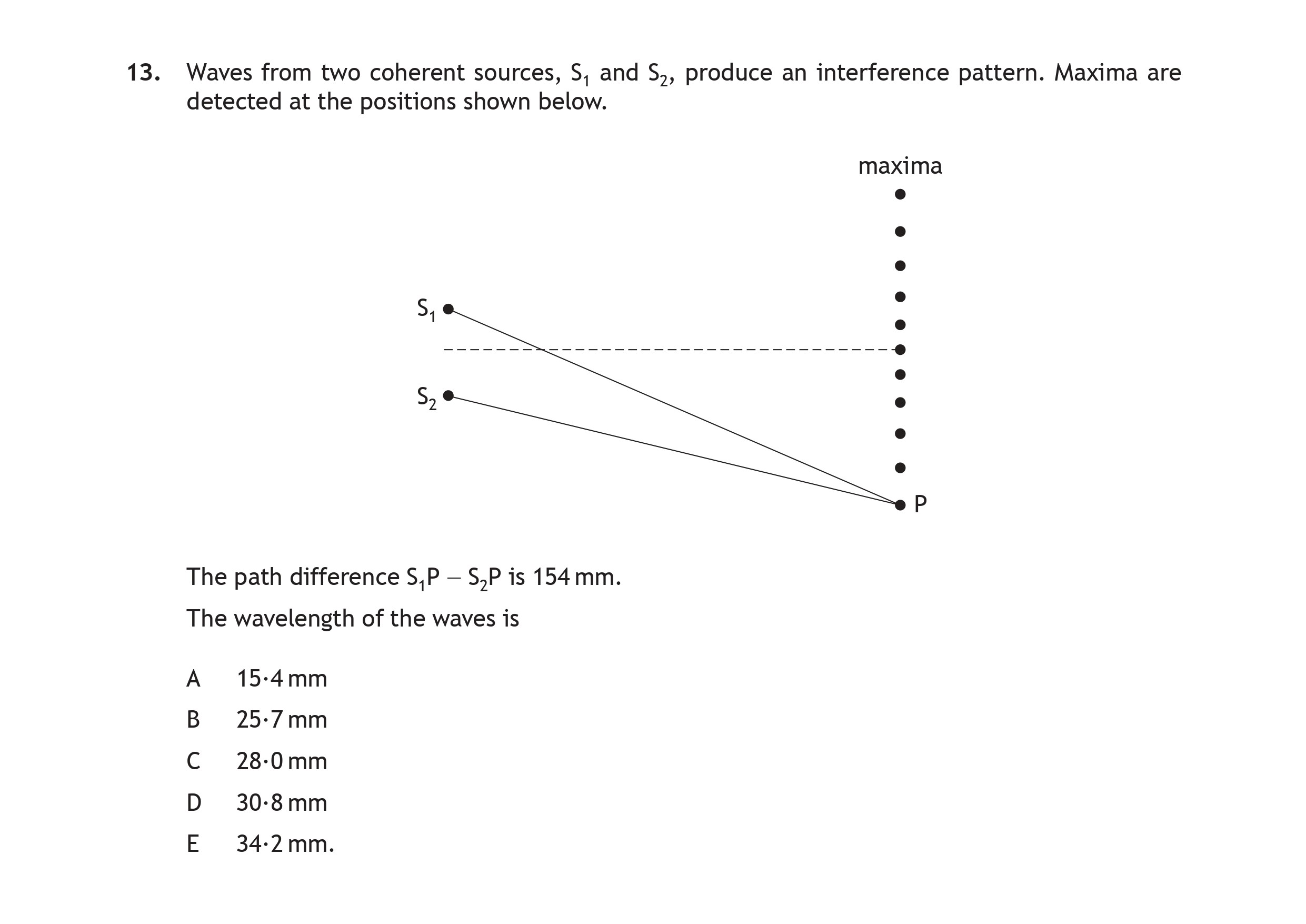

Waves from two coherent sources, S₁ and S₂, produce an interference pattern. Maxima are detected at the positions shown below. The path difference S₁P - S₂P is 154 ... show full transcript

Worked Solution & Example Answer:Waves from two coherent sources, S₁ and S₂, produce an interference pattern - Scottish Highers Physics - Question 13 - 2018

Step 1

Given Data

96%

114 rated

Answer

The path difference is given as S₁P - S₂P = 154 mm. In the context of interference, maxima occur when the path difference is an integral multiple of the wavelength, represented as:

S1PS2P=nλS_{1}P - S_{2}P = n \lambda

where nn is an integer (0, 1, 2,...), and λ\lambda is the wavelength.

Step 2

Calculate Wavelength

99%

104 rated

Answer

To find the wavelength, we can rearrange the equation as follows:

λ=S1PS2Pn\lambda = \frac{S_{1}P - S_{2}P}{n}

Given we need to find possible values of λ\lambda, we will consider different values of nn. Since the path difference is given as 154 mm, we will test each option for the integer nn.

  1. For n=1n=1: λ=154 mm1=154 mm\lambda = \frac{154 \text{ mm}}{1} = 154 \text{ mm}. (not an option)
  2. For n=2n=2: λ=154 mm2=77 mm\lambda = \frac{154 \text{ mm}}{2} = 77 \text{ mm}. (not an option)
  3. For n=3n=3: λ=154 mm351.33 mm\lambda = \frac{154 \text{ mm}}{3} \approx 51.33 \text{ mm}. (not an option)
  4. For n=4n=4: λ=154 mm4=38.5 mm\lambda = \frac{154 \text{ mm}}{4} = 38.5 \text{ mm}. (not an option)
  5. For n=5n=5: λ=154 mm5=30.8 mm\lambda = \frac{154 \text{ mm}}{5} = 30.8 \text{ mm}, which corresponds to option D.

Step 3

Conclusion

96%

101 rated

Answer

Based on our calculations and analysis, the wavelength of the waves is therefore approximately:

D. 30-8 mm.
