Question 1

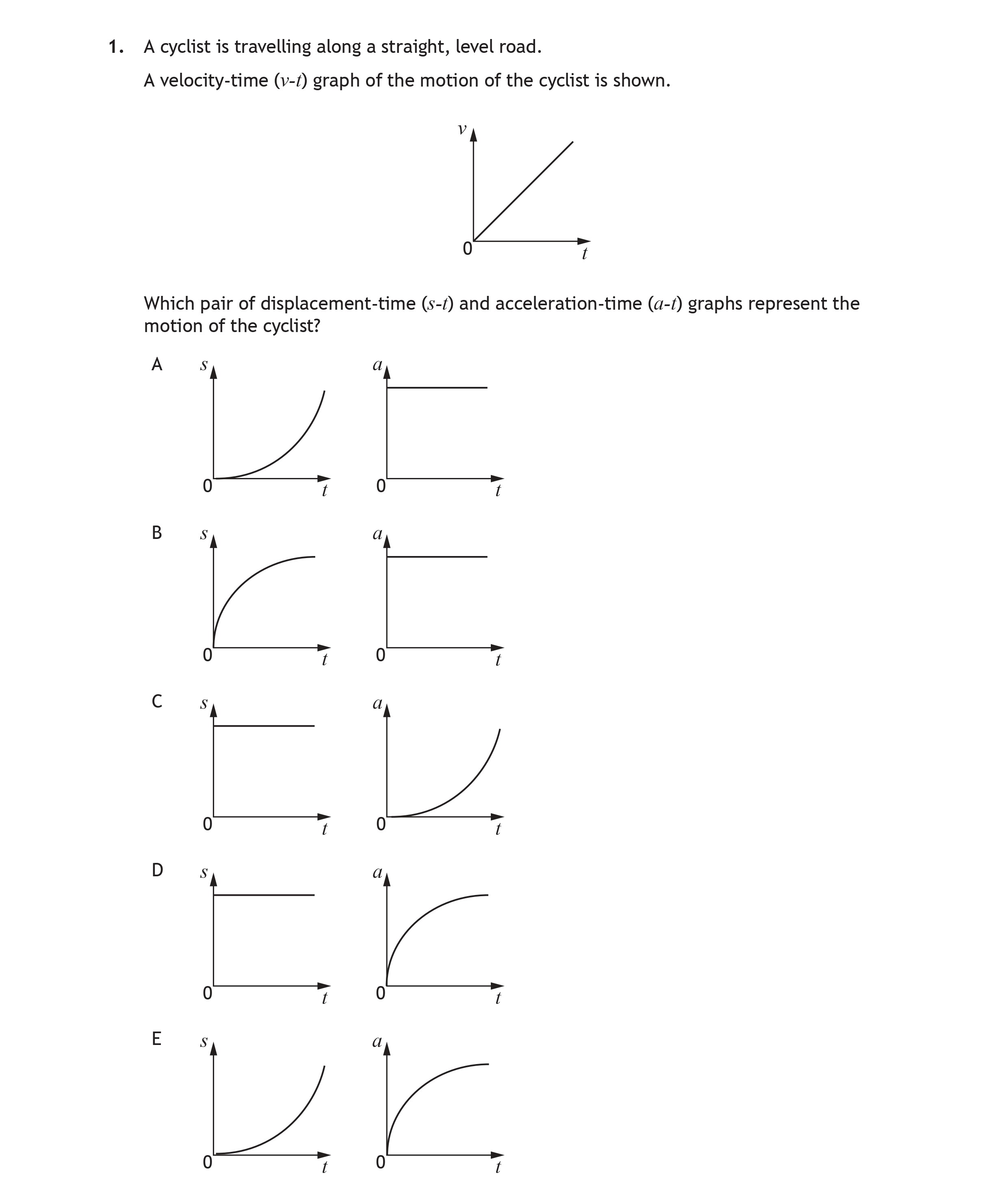

A cyclist is travelling along a straight, level road.
A velocity-time (v-t) graph of the motion of the cyclist is shown.
Which pair of displacement-time (s-t) and a... show full transcript
Worked Solution & Example Answer:A cyclist is travelling along a straight, level road - Scottish Highers Physics - Question 1 - 2023
Step 1
Identify the Characteristics of the Velocity-Time Graph
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The velocity-time graph shows an increase in velocity over time, indicating that the cyclist is accelerating. The slope of the graph represents acceleration, which is positive.
Step 2
Analyze the Displacement-Time Graph Options
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Given that the cyclist is accelerating, the displacement-time graph should curve upwards, indicating increasing displacement over time at an increasing rate. For this reason, only option A with a concave-up shape is valid.
Step 3
Analyze the Acceleration-Time Graph Options
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Since the cyclist is continuously accelerating, the corresponding acceleration-time graph must be a horizontal line above the time axis, indicating constant positive acceleration. Option A correctly represents this.
Step 4
Select the Correct Pair of Graphs
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The correct answer that represents the motion of the cyclist is option A, as it shows an upward displacement graph with constant positive acceleration.
