Two physics students are in an airport building on their way to visit CERN - Scottish Highers Physics - Question 4 - 2016

Question icon

Question 4

Two-physics-students-are-in-an-airport-building-on-their-way-to-visit-CERN-Scottish Highers Physics-Question 4-2016.png

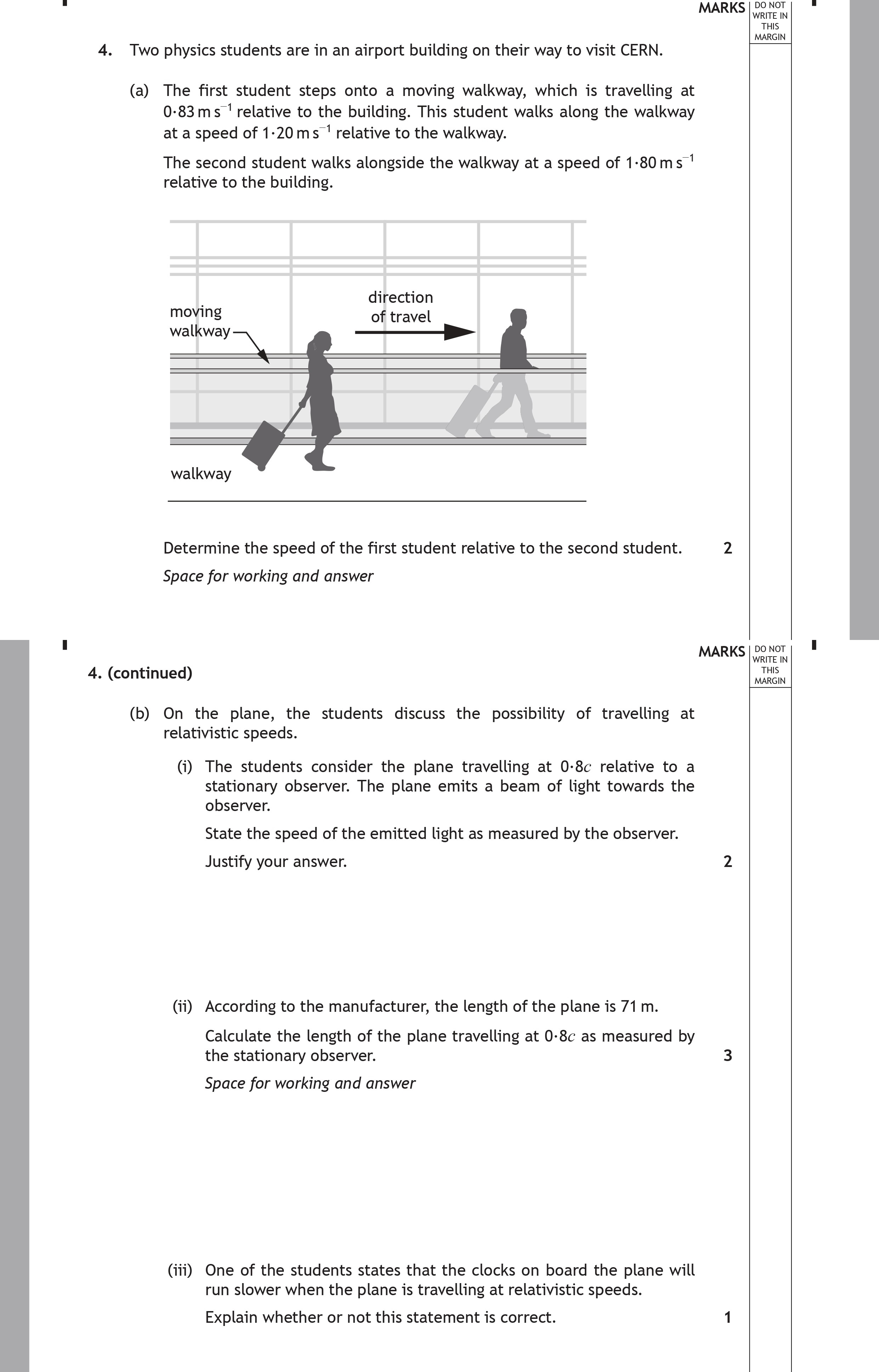

Two physics students are in an airport building on their way to visit CERN. (a) The first student steps onto a moving walkway, which is travelling at 0.83 ms⁻¹ rela... show full transcript

Worked Solution & Example Answer:Two physics students are in an airport building on their way to visit CERN - Scottish Highers Physics - Question 4 - 2016

Step 1

Determine the speed of the first student relative to the second student.

96%

114 rated

Answer

To find the speed of the first student relative to the second student, we can use the formula for relative velocity:

Let:

  • Speed of first student relative to walkway, v1=1.20extm/sv_1 = 1.20 \, ext{m/s}
  • Speed of walkway relative to building, vw=0.83extm/sv_w = 0.83 \, ext{m/s}
  • Speed of second student relative to building, v2=1.80extm/sv_2 = 1.80 \, ext{m/s}

The speed of the first student relative to the building is:

v1,extbuilding=v1+vw=1.20+0.83=2.03extm/sv_{1, ext{building}} = v_1 + v_w = 1.20 + 0.83 = 2.03 \, ext{m/s}

Now, to find the speed of the first student relative to the second student:

vrelative=v1,extbuildingv2=2.031.80=0.23extm/sv_{relative} = v_{1, ext{building}} - v_2 = 2.03 - 1.80 = 0.23 \, ext{m/s}

Thus, the speed of the first student relative to the second student is 0.23 m/s.

Step 2

State the speed of the emitted light as measured by the observer.

99%

104 rated

Answer

The speed of light is constant in all inertial frames of reference. Therefore, regardless of the speed of the plane moving at 0.8c, the speed of the emitted light as measured by the observer is:

c=3×108m/sc = 3 \times 10^8 \, \text{m/s}

This remains the same for all observers.

Step 3

Calculate the length of the plane travelling at 0.8c as measured by the stationary observer.

96%

101 rated

Answer

To calculate the length of the plane as measured by the stationary observer, we use the principle of length contraction, which is given by the formula:

L=L01v2c2L = L_0 \sqrt{1 - \frac{v^2}{c^2}}

Where:

  • L0=71mL_0 = 71 \, \text{m} (proper length of the plane)
  • v=0.8cv = 0.8c
  • c=3×108m/sc = 3 \times 10^8 \, \text{m/s}

Substituting the values:

L=711(0.8)2(c=1)L = 71 \cdot \sqrt{1 - (0.8)^2} \quad (c=1) L=7110.64L = 71 \cdot \sqrt{1 - 0.64} L=710.36L = 71 \cdot \sqrt{0.36} L=710.6=42.6mL = 71 \cdot 0.6 = 42.6 \, \text{m}

Therefore, the length of the plane travelling at 0.8c as measured by the stationary observer is 42.6 m.

Step 4

Explain whether or not this statement is correct.

98%

120 rated

Answer

The statement about the clocks on board the plane running slower when the plane is travelling at relativistic speeds is correct. From the perspective of the stationary observer, time dilation occurs. This means that time passes more slowly on board the plane compared to the stationary observer's reference frame. Therefore, the clocks on the plane will indeed run slower as viewed by the stationary observer.
