The visible spectrum of light emitted by a star is observed to contain a number of dark lines - Scottish Highers Physics - Question 6 - 2017

Question icon

Question 6

The-visible-spectrum-of-light-emitted-by-a-star-is-observed-to-contain-a-number-of-dark-lines-Scottish Highers Physics-Question 6-2017.png

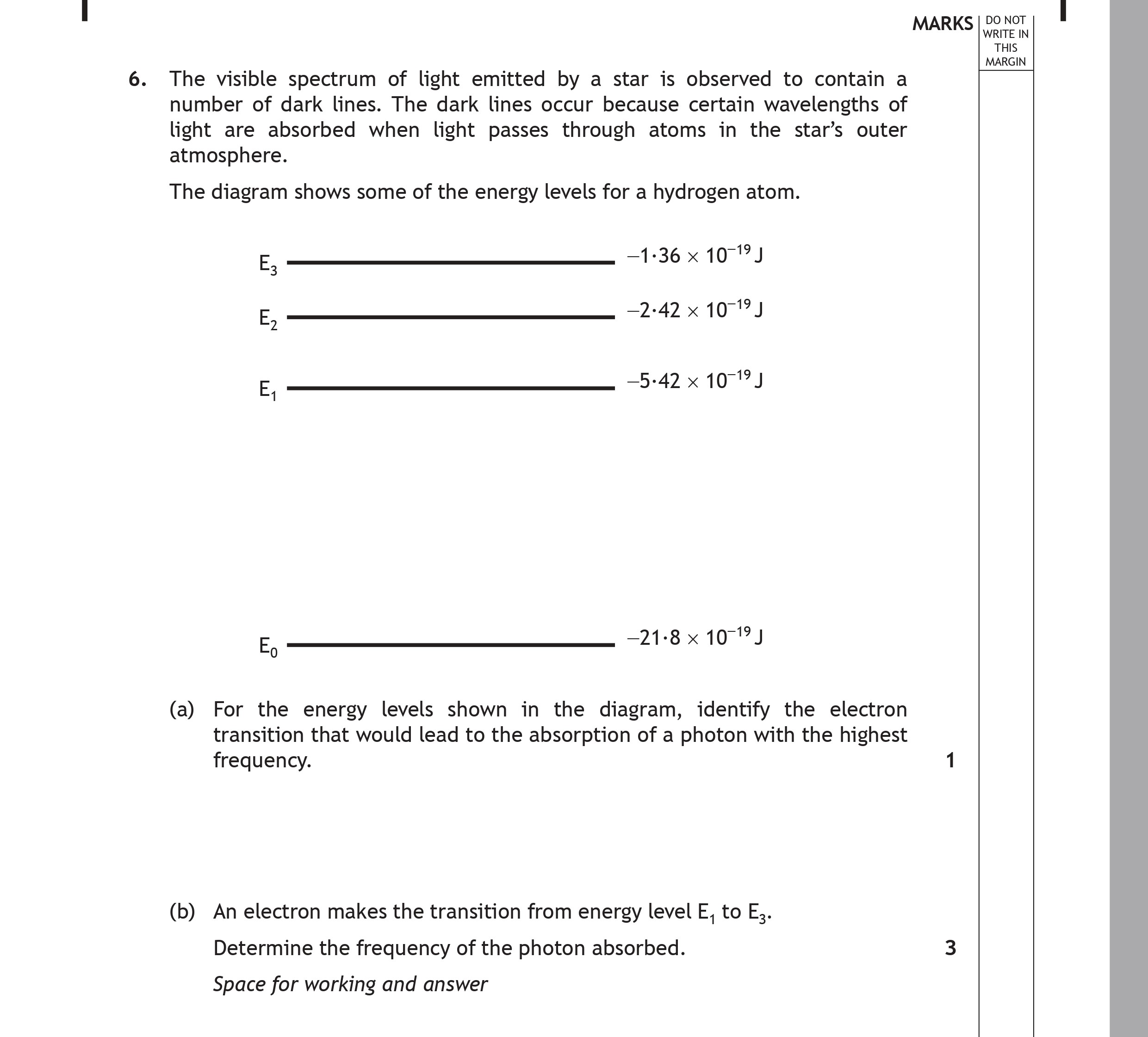

The visible spectrum of light emitted by a star is observed to contain a number of dark lines. The dark lines occur because certain wavelengths of light are absorbed... show full transcript

Worked Solution & Example Answer:The visible spectrum of light emitted by a star is observed to contain a number of dark lines - Scottish Highers Physics - Question 6 - 2017

Step 1

For the energy levels shown in the diagram, identify the electron transition that would lead to the absorption of a photon with the highest frequency.

96%

114 rated

Answer

The transition that leads to the absorption of a photon with the highest frequency is from the energy level E₀ to E₁. This is because the larger the energy difference between the levels, the higher the frequency of the absorbed photon.

Step 2

An electron makes the transition from energy level E₁ to E₃. Determine the frequency of the photon absorbed.

99%

104 rated

Answer

To find the frequency of the photon absorbed during the transition from E₁ to E₃, we first calculate the change in energy (ΔE):

ΔE=E3E1=(1.36imes1019J)(5.42imes1019J)=4.06imes1019JΔE = E₃ - E₁ = (-1.36 imes 10^{-19} J) - (-5.42 imes 10^{-19} J) = 4.06 imes 10^{-19} J

Next, we use the formula relating energy and frequency:

E=hfE = hf

Where:

  • EE is the energy of the photon,
  • hh is Planck's constant (6.63imes1034Js6.63 imes 10^{-34} Js), and
  • ff is the frequency.

Thus, we rearrange to find frequency:

f=Eh=4.06imes1019J6.63imes1034Js6.13×1014Hzf = \frac{E}{h} = \frac{4.06 imes 10^{-19} J}{6.63 imes 10^{-34} Js} \approx 6.13 \times 10^{14} Hz

Therefore, the frequency of the photon absorbed is approximately 6.13×1014Hz6.13 \times 10^{14} Hz.
