7.4.3 Friedel–Crafts Acylation

What is Acylation?

An acyl group consists of an alkyl group bonded to a carbon-oxygen double bond. Representing the alkyl group as "$R$," the general formula for an acyl group is $RCO-$. Acylation refers to the process of introducing an acyl group into a molecule—in this case, into a benzene ring.

The most commonly used acyl group is $CH₃CO-$, known as the ethanoyl group. In the following example, a $CH₃CO-$ group is added to the benzene ring, but any other alkyl group could be used in place of $CH₃$.

Friedel-Crafts Reactions

Friedel-Crafts reactions are a type of electrophilic substitution reaction. Due to the aromatic stability of arenes, these compounds are generally unreactive. To make arenes useful as starting materials for synthesizing other organic compounds, their structure must be altered to increase their reactivity.

Friedel-Crafts reactions achieve this by substituting a hydrogen atom on the benzene ring with either an alkyl group (Friedel-Crafts alkylation) or an acyl group (Friedel-Crafts acylation).

Like other electrophilic substitution reactions, Friedel-Crafts reactions proceed through three main steps:

1. Generation of the electrophile
2. Electrophilic attack on the benzene ring
3. Restoration of the aromatic system in the benzene ring
4. Regeneration of the Catalyst

The Friedel-Crafts acylation reaction involves attaching an acyl group to an aromatic ring. This is usually achieved using an acid chloride ($R-(C=O)-Cl$) along with a Lewis acid catalyst, such as $AlCl₃$**. During this reaction, the aromatic ring is converted into a ketone.

An acid anhydride can serve as an alternative to an acyl halide in Friedel-Crafts acylation reactions. In this reaction, the halogen in the acyl halide interacts with the Lewis acid, creating a highly electrophilic acylium ion ($RCO⁺$), which is stabilized by resonance.

Mechanism:

Friedel-Crafts acylations follow a four-step mechanism.

Step 1: Formation of the Electrophile

1. Equation:

The aluminium chloride catalyst removes a chloride ion from methyl chloride

creating a highly reactive methyl carbocation ((\text{CH}_3^+)), which serves as an electrophile.

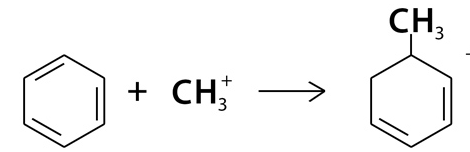

Step 2: Electrophilic Attack on Benzene

• The methyl carbocation $CH_3^+$ attacks the electron-rich benzene ring. This breaks the aromaticity of benzene temporarily, resulting in the formation of a positively charged intermediate (a carbocation) where the methyl group is now attached to the benzene ring.

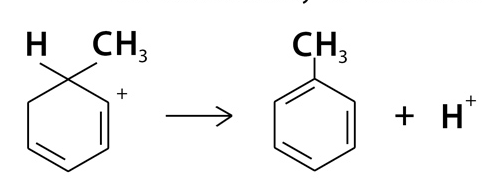

Step 3: Restoration of Aromaticity

• The positively charged intermediate releases a proton ${H}^+$, which allows the benzene ring to regain its aromatic stability. This step completes the formation of methylbenzene. Here's the equation written out:

Step 4: Regeneration of the Catalyst

• The released proton${H}^+$ reacts with the${AlCl}_4^-$ ion formed earlier, producing hydrochloric acid ${HCl}$ and regenerating the aluminium chloride catalyst${AlCl}_3$ which can then participate in further reactions.

Limitations

Although Friedel-Crafts acylation avoids some issues associated with Friedel-Crafts alkylation (such as carbocation rearrangement and polyalkylation), it still has a few drawbacks:

• Product Restriction: The reaction only produces ketones. This limitation arises because formyl chloride ($H(C=O)Cl$) decomposes into $CO$ and $HCl$ under reaction conditions.
• Reactivity of the Aromatic Compound: Only aromatic compounds more reactive than mono-halobenzene can participate in this reaction. Less reactive compounds will not undergo acylation.
• Incompatibility with Aryl Amines: Aryl amines are unsuitable for this reaction because they form highly unreactive complexes with the Lewis acid catalyst.
• Side Reactions with Amines or Alcohols: When amines or alcohols are present, acylation may occur on the nitrogen or oxygen atoms instead of the aromatic ring.

Advantages:

Friedel-Crafts Acylation offers several advantages over Friedel-Crafts Alkylation. These include greater control over the reaction products and the stability of the acylium ion due to resonance, which eliminates the possibility of rearrangement. Additionally, the ketones produced through acylation can be reduced to alkyl groups using the Clemmensen reduction method.
