7.2.1 Gradients, Tangents & Normal

Further Differentiation: Tangents and Normal to Curves

A tangent to a curve at a given point is a straight line that touches the curve only once at that point.

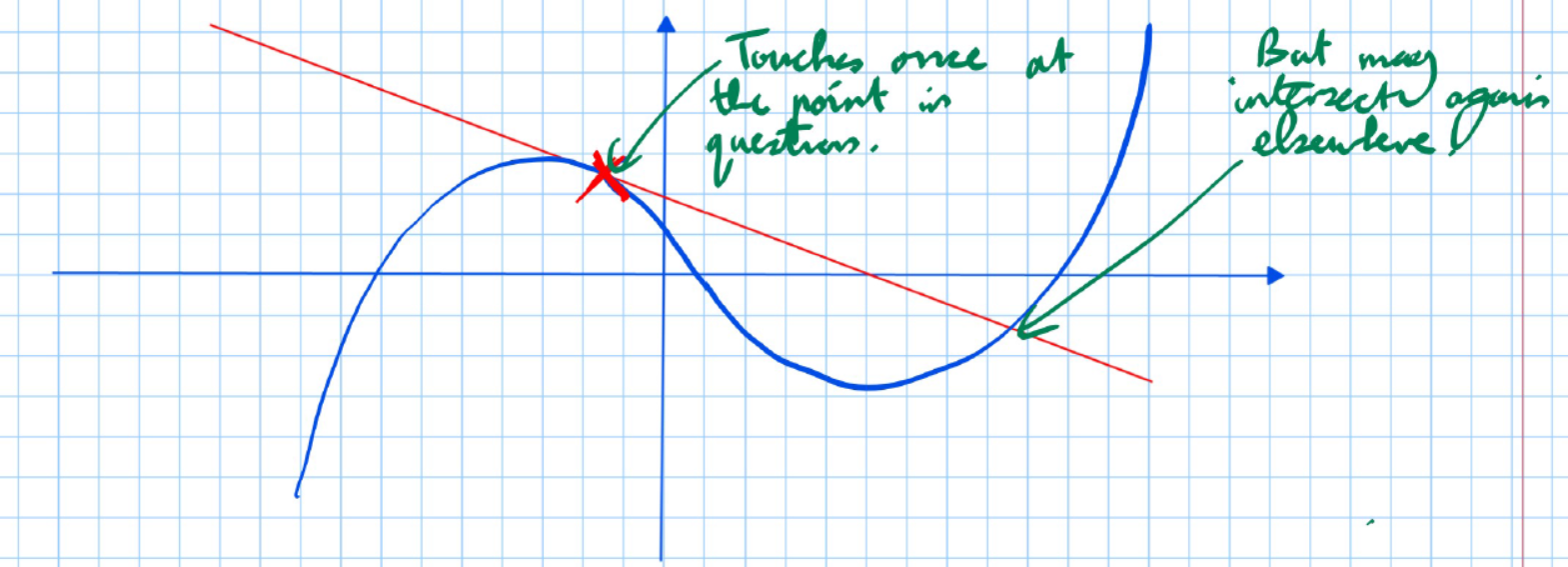

(Diagram illustrating a tangent touching a curve at one point and a line that may intersect the curve again elsewhere.)

Touches once at the point in question.

But may intersect again elsewhere.

Remember: The gradient of a curve is the gradient of its tangent at that point.


infoNote

e.g. Find the equation of the tangent to the curve y=x3+6x4y = x^3 + 6x - 4 when x=1x = 1.

  1. Find the gradient function, dydx\frac{dy}{dx} , of the curve.

dydx=3x2+6When x=1,dydx=3(1)2+6=9\frac{dy}{dx} = 3x^2 + 6 \Rightarrow \text{When } x = 1, \, \frac{dy}{dx} = 3(1)^2 + 6 = 9


  1. Find both coordinates of the point in question.

x=1y=(1)3+6(1)4=3x = 1 \Rightarrow y = (1)^3 + 6(1) - 4 = 3


  1. Use this point and gradient in the general straight line equation.

m=9Point (1,3)m = 9 \quad \text{Point } (1,3)

y3=9(x1)y3=9x9y=9x6\therefore y - 3 = 9(x - 1) \Rightarrow y - 3 = 9x - 9 \Rightarrow \boxed{y = 9x - 6}


infoNote

e.g. Find the equation of the normal to y=4x2+x3y = 4x^2 + x - 3 when x=2x = 2

dydx=8x+1=8(2)+1=17(when x=2)\frac{dy}{dx} = 8x + 1 = 8(2) + 1 = 17 \quad (\text{when } x = 2)

Gradient of normal=117\Rightarrow \text{Gradient of normal} = -\frac{1}{17}

y=4(2)2+23=15y = 4(2)^2 + 2 - 3 = 15

m=117Point (2,15)\therefore \, m = -\frac{1}{17} \quad \text{Point } (2, 15)

y15=117(x2)\Rightarrow y - 15 = -\frac{1}{17}(x - 2)

17y255=1(x2){×17}\Rightarrow 17y - 255 = -1(x - 2) \quad \left\{ \times 17 \right\}

17y255=x+2\Rightarrow 17y - 255 = -x + 2

x+17y257=0 \Rightarrow x + 17y - 257 = 0


Solution:

(i) dydx=3x26\frac{dy}{dx} = 3x^2 - 6 \checkmark

(ii)3x26<03x^2 - 6 < 0

x22<0\Rightarrow x^2 - 2 < 0

(x+2)(x2)<0\Rightarrow (x + \sqrt{2})(x - \sqrt{2}) < 0

2<x<2\Rightarrow -\sqrt{2} < x < \sqrt{2} \checkmark

(Diagram illustrating the interval between 2-\sqrt{2} and 2\sqrt{2} on the x-axis

(iii) Let x=1x = -1:

dydx=3(1)26=3 \Rightarrow \frac{dy}{dx} = 3(-1)^2 - 6 = -3

Point (1,7)m=3 \text{Point } (-1, 7) \quad m = -3

y7=3(x1) \Rightarrow y - 7 = -3(x - 1)

y7=3x3\Rightarrow y - 7 = -3x - 3

y=3x+4 \Rightarrow y = -3x + 4

3x+4=x36x+2x33x2=0-3x + 4 = x^3 - 6x + 2 \Rightarrow x^3 - 3x - 2 = 0

x=2(valid root)\Rightarrow x = 2 \, (\text{valid root})

y=(2)36(2)+2=2(2,2)\Rightarrow y = (2)^3 - 6(2) + 2 = -2 \quad \Rightarrow (2, -2) \checkmark

f(x)=6x52+4f(x)=52×6x32f(x) = 6x^{\frac{5}{2}} + 4 \Rightarrow f'(x) = \frac{5}{2} \times 6x^{\frac{3}{2}}

=15x32= 15x^{\frac{3}{2}}
