12.2.4 The discovery of photoelectricity

1. Background: Black Body Radiation and the UV Catastrophe

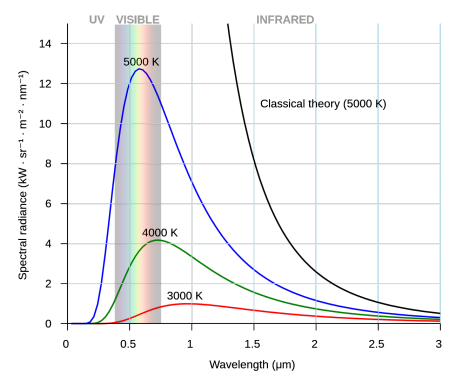

• A black body absorbs and emits radiation across all possible wavelengths. Classical wave theory predicted that as wavelength decreased, intensity of emitted radiation should increase, theoretically resulting in an infinite amount of ultraviolet radiation. However, this was not observed in experiments.
• This discrepancy became known as the ultraviolet catastrophe, showing that the wave theory of light could not explain observed data accurately.
• Planck's Solution:
  • Planck suggested that electromagnetic (EM) waves exist in discrete packets of energy, known as quanta. The energy of each quantum is directly proportional to its frequency, described by the equation:

$$E = hf$$

• Here, $E$ is energy, $h$ is Planck's constant, and $f$ is frequency. This quantisation helped resolve the UV catastrophe and formed a basis for quantum mechanics.

2. The Photoelectric Effect

• Overview: The photoelectric effect occurs when light shining on a metal surface causes electrons to be emitted from that surface.
• Wave theory failed to explain certain observations in the photoelectric effect:
  1. Threshold Frequency: Wave theory would suggest any light frequency should cause emission if intensity is high enough, but experimentally, only light above a certain frequency caused electron emission. This minimum frequency is called the threshold frequency.
  2. Instantaneous Emission: Electron emission was observed immediately when the light was turned on, contradicting wave theory, which would predict a delay as energy accumulates.
  3. Intensity and Kinetic Energy: Increasing light intensity raised the number of electrons emitted per second but did not increase the kinetic energy of individual electrons, contrary to what wave theory would predict.
  4. Variety of Kinetic Energies: Photoelectrons were emitted with a range of kinetic energies, which was not explainable by the wave model.

3. Einstein's Photon Model and Explanation of the Photoelectric Effect

• Photon Model: Einstein proposed that light is made up of particles, or photons, each carrying energy $E = hf$.
• Photon-Electron Interaction:
  • When a photon collides with an electron, all of the photon's energy is transferred to the electron. If this energy exceeds the work function (the minimum energy needed to release an electron from the metal), an electron is emitted.
  • The work function $\Phi$ represents the binding energy of the electron to the metal surface. Only photons with energy $hf \geq \Phi$ can cause electron emission.

4. Experimental Evidence Supporting the Photon Model

• Stopping Potential and Kinetic Energy:
  • When a positive potential is applied across a metal surface, it attracts electrons back, requiring electrons to do work to overcome this potential. The stopping potential $V_s$ is the voltage needed to halt the electrons with the highest kinetic energy.
  • The maximum kinetic energy of photoelectrons $E_k$ can be calculated from:

$$E_k = e V_s$$

where $e$ is the elementary charge.

• Substituting into Einstein's photoelectric equation $E_k = hf - \Phi$ allows:

$$hf = \Phi + e V_s$$

which can be rearranged to:

$$V_s = \frac{h}{e} f - \frac{\Phi}{e}$$

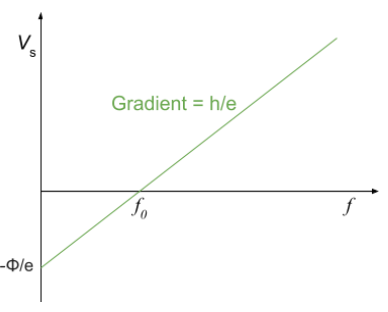

• Graphical Representation:
  • A graph of stopping potential $V_s$ against frequency $f$ yields a straight line with:
  • $Gradient = \frac{h}{e}$
  • $y-intercept = -\frac{\Phi}{e}$
  • x-intercept represents the threshold frequency $f_0$, the minimum frequency for photoemission.
