4.1.3 Motion along a straight line

1. Speed: A scalar quantity that describes how fast an object is moving, without any regard for direction.
2. Displacement ($s$): A vector quantity representing the overall distance moved from the initial position, including direction.
3. Velocity ($v$): The rate of change of displacement with respect to time, given by:

$$v = \frac{\Delta s}{\Delta t}$$

4. Acceleration ($a$): The rate of change of velocity with respect to time, given by:

$$a = \frac{\Delta v}{\Delta t}$$

Types of Velocity

• Instantaneous Velocity: The velocity at a specific moment in time. It can be found by determining the gradient of a tangent line on a displacement-time graph.
• Average Velocity: The velocity over a specified time period. It is calculated by dividing the total displacement by the total time taken.

Uniform Acceleration

When an object experiences constant acceleration, we describe it as having uniform acceleration.

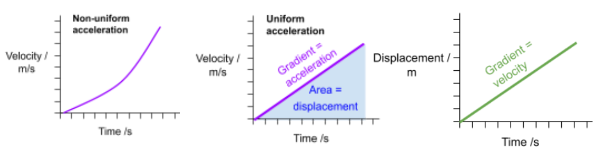

Interpreting Motion Graphs

1. Acceleration-Time Graphs:

• Show how velocity changes over time.
• The area under the graph gives the change in velocity.

2. Velocity-Time Graphs:

• Show how velocity varies over time.
• The gradient of this graph represents acceleration.
• The area under the graph represents displacement.

3. Displacement-Time Graphs:

• Show the change in displacement over time.
• The gradient of this graph represents velocity.

Equations of Motion for Uniform Acceleration

For objects moving with uniform acceleration, the following equations of motion apply:

4. $v = u + at$
5. $s = \left(\frac{u + v}{2}\right)t$
6. $s = ut + \frac{1}{2}at^2$
7. $v^2 = u^2 + 2as$

Where:

• $s$ = displacement
• $u$ = initial velocity
• $v$ = final velocity
• $a$ = acceleration
• $t$ = time Tip: When solving problems, list out known and unknown values and choose the equation that best fits.
