Interference Effects

Part 1: Young's Double-Slit Experiment

Equipment

Laser: Provides a coherent light source.

Double slit: Creates two coherent sources for the laser light to interfere.

White screen: To observe the interference pattern (fringes).

Metre ruler: For measuring distances between fringes and the screen.

infoNote

Method

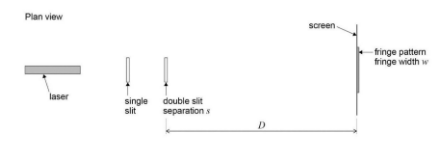

Setup: Darken the room partially to enhance visibility. Assemble the apparatus as per the diagram, ensuring the laser light passes through both slits.
Set Initial Distance: Adjust the distance $D$ between the double slit and the screen to 0.500 m, measured with a metre ruler.
Measure Fringe Width: Identify multiple bright fringes on the screen. Measure across a large number of fringes, then divide by the number of fringes to determine the fringe width $w$ .
Increment Distance: Increase $D$ in 0.100 m intervals, up to a maximum of 1.500 m, and repeat the measurements for $w$ at each distance.
Repeat: Perform the experiment twice more to obtain reliable averages for each value of $D$ .
Measure Slit Separation: If the slit separation $s$ is not provided, measure it using a vernier calliper or a travelling microscope.

Graphs and Calculations

Graph of Fringe Width vs. Distance:

Plot the fringe width $w$ against $D$ , then draw a line of best fit.
Calculate the wavelength $\lambda$ of the laser light by using:

\lambda = \frac{ws}{D} = Gs

where $G$ is the gradient of the graph.

infoNote

Safety

Laser Safety: Lasers can cause eye damage. Ensure the laser is directed away from people, and avoid direct eye exposure.

Improvements and Notes

Alignment: Ensure that the screen and double slit are perfectly aligned to avoid parallax error when measuring the fringe width.
Use of Set Square: A set square may help in achieving accurate perpendicular alignment of the ruler with the screen.

Part 2: Diffraction Grating Experiment

Equipment

Laser: Provides coherent light.
Diffraction grating: Creates multiple orders of interference.
White screen: To observe and measure the diffraction pattern.
Metre ruler: For distance measurements on the screen.

infoNote

Method

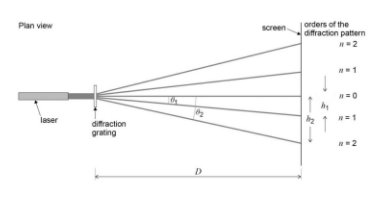

Setup: Darken the room partially and arrange the apparatus as shown in the diagram, ensuring alignment of the laser with the diffraction grating.
Set Initial Distance: Adjust the distance $D$ between the grating and the screen to 1.000 m, measured with the metre ruler.
Measure Diffraction Orders: Measure the distances $h_1$ and $h_2$ on either side of the central maximum for different orders (e.g., ( $n = 1$ and $n = 2)$ . Record the mean of each measurement.

Graphs and Calculations

Calculate Slit Separation:

If the slit separation $d$ is not given, find it by taking the reciprocal of the number of slits per metre (quoted on the diffraction grating).

Determine Angle:

Calculate the angles $\theta_1$ and $\theta_2$ for each order using:

\theta_n = \arctan\left(\frac{h_n}{D}\right)

Wavelength Calculation:

Using the formula $\lambda = d \sin(\theta_n)/n$ , calculate $\lambda$ for each angle and take the mean value.

infoNote

Safety

Laser Safety: As with the double-slit experiment, ensure the laser is directed safely to avoid eye exposure.

Improvements and Notes

Alignment: Like the double-slit experiment, ensure that the screen, grating, and laser are precisely aligned to avoid parallax errors.
Use of Set Square: A set square helps maintain perpendicular alignment of the ruler with the screen.

infoNote

Key Concepts

Interference Patterns: Created by light waves overlapping and forming areas of constructive (bright fringes) and destructive (dark fringes) interference.
Double-Slit Interference: Demonstrates Young's principle of coherence, showing that light behaves as a wave.
Diffraction Grating: Provides higher-order interference, allowing for precise measurements of wavelength.
Application of Trigonometry: Used to calculate angles in the diffraction grating experiment.
