Investigating ecosystems

Investigating the Relationship Between Organisms and Their Environment Using Quadrats

infoNote

Aim: The aim of this practical is to investigate the distribution of organisms within an environment and understand how their distribution is affected by abiotic factors. This is done using fieldwork techniques like quadrats and belt transects to study how species are distributed in different areas or along environmental gradients.

infoNote

Equipment:

1m² quadrat (for measuring distribution)
Tape measure (for marking out transects)
Random number generator (to select random coordinates)
Light meter (to measure light intensity)
Soil pH meter (to measure soil pH)
Pen and data sheet (to record results)

infoNote

What is a quadrat: Square frame enclosing a known area to compare how common an organism is in 2 sample areas

infoNote

Method

Place a 1m² quadrat on the ground at a random point within first sample area (can do this by dividing area in a grid & use number generator to pick cords )- this ensures results are representative of the whole sample area
Count all organisms within quadrat
Repeat steps 1 & 2
Work out mean number of organisms per quadrat within 1st sample area

\text{Mean number of organisms} = \frac{\text{Total number of organisms in all quadrats}}{\text{Number of quadrats used}}

Repeat steps 1-4 in second sample area
Compare two means

infoNote

Example Question:

Students used 0.5 m² quadrats to randomly sample daisies in a field. They found a mean of 10 daisies per quadrat. The field's area was 800 m². Estimate the population of daisies in the field.

Work out the mean number of organisms per m².

1 \div 0.5 = 2 \quad \text{and} \quad 2 \times 10 = 20 \, \text{daisies per m²}

Multiply the mean per m² by the total area (in m²) of the habitat.

20 \times 800 = 16,000 \, \text{daisies in the field}

infoNote

Sometimes abiotic factors will change across a habitat (change is known as gradient), using quadrats will help find out how organisms are distributed along gradient

Using a Belt Transect

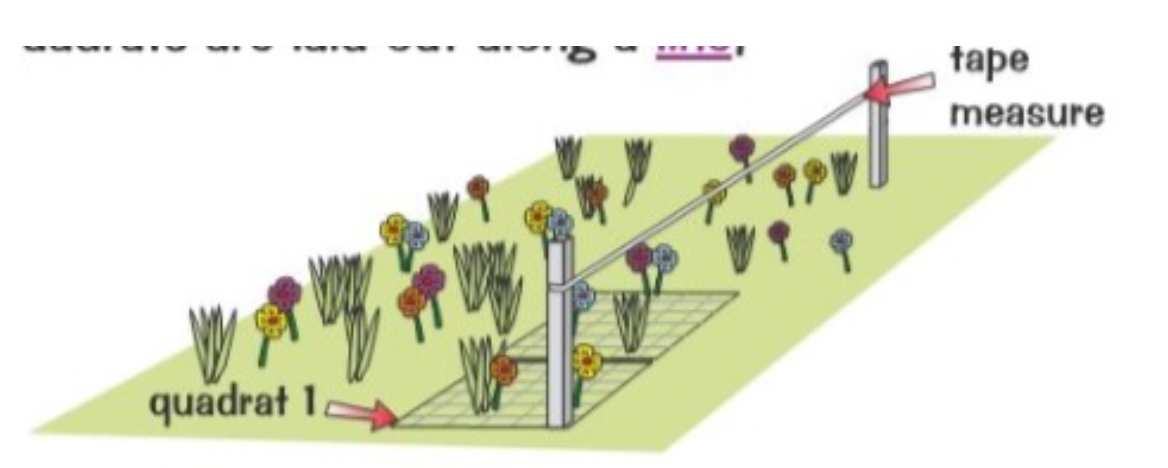

Belt transect - Quadrats are laid along a line forming a belt transect

infoNote

Use a belt transect to study distribution along a gradient 9. Mark out a line in the area you want to study 10. Collect data along the line using quadrats placed next to each other (if the transect is long, you can place quadrats at regular intervals) 11. Collect data by counting all organisms of the species you are interested in/ estimate percentage cover 12. Repeat the steps to find the mean number/ percentage covered for each quadrat 13. Plot graphs to see if the factors are correlated with a change of distribution You can also record other data (mean height of palms) and your counting/ the abiotic factors in each quadrat (light meter to measure light intensity) You can also record other data (mean height of palms) your counting/ the abiotic factors in each quadrat (light meter to measure light intensity)

Data Collection:

For both the quadrat and belt transect methods, you'll collect the following data:

Number of organisms or percentage covered within each quadrat.
Abiotic data, such as light intensity, soil moisture, or soil pH, depending on the focus of your investigation. Example data table for quadrat sampling:

Quadrat Number	Number of Organisms	Percentage Cover (%)	Light Intensity (lux)
1	5	50	200
2	7	60	250
3	6	55	180
...	...	...	...

Example data table for belt transect sampling:

Distance along Transect (m)	Number of Organisms	Percentage Cover (%)	Soil pH	Light Intensity (lux)
0	4	45	6.5	150
5	6	55	6.8	160
10	8	60	7.0	180
...	...	...	...	...

Conclusion:

The quadrat and belt transect techniques allow for a detailed analysis of how organisms are distributed across different areas of a habitat or along environmental gradients. By comparing two areas or by examining how organisms change along a transect, you can infer the impact of abiotic factors like light, temperature, or soil pH on the distribution of species in an ecosystem.
