Identify Syntax & Logic Errors in Testing

When writing programs, two common types of errors arise: syntax errors and logic errors. Understanding these errors is essential for effective debugging and testing.

Syntax Errors

Syntax errors occur when the rules (grammar) of the programming language are broken.

These errors prevent the program from running and must be corrected before the program can execute.

Examples include:

• Missing brackets or colons.
• Incorrectly spelt commands or variables.
• Misplaced operators or indentation issues.

Example

print("Hello World)  # Syntax Error: Missing closing quotation mark.

Logic Errors

• Logic errors happen when the program runs but produces incorrect results due to flaws in the logic.
• The program may not crash, but it won't work as intended, producing unexpected outputs.
• These errors can be harder to detect because they do not stop the program from running.

Example

def calculate_area(length, width):
    return length + width  # Logic Error: Should multiply, not add

Logic Gates and Truth Tables

Logic gates are used in computer circuits to perform simple logic operations. They work with binary values, where inputs and outputs are either 0 (false) or 1 (true). Each type of logic gate has a truth table that shows the output for every possible input combination.

Truth Tables for Common Gates:

NOT Gate		OR Gate		AND Gate
Input A	Output	Input A	Input B	Output	Input A
0	1	0	0	0	0
1	0	0	1	1	0
		1	0	1	1
		1	1	1	1

Combining Logic Gates:

Complex logic can be created by combining multiple gates. Below is an example of combining a NOT gate with an AND gate.

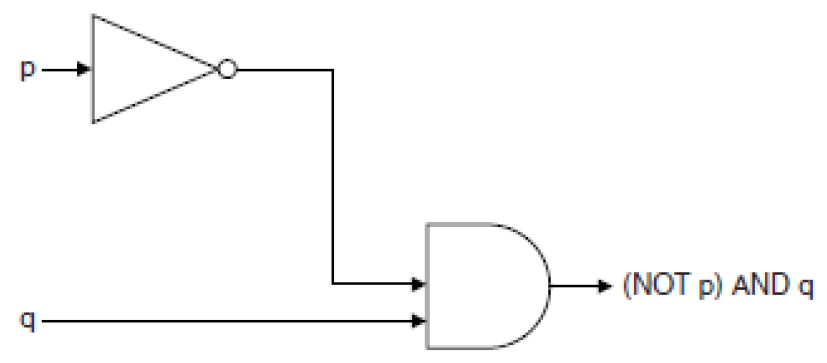

Circuit

• The NOT gate takes input p and produces NOT p.
• The output of NOT p and input q are passed into an AND gate.

Truth Table for the Combined Circuit

p	q	NOT p	(NOT p) AND q
0	0	1	0
0	1	1	1
1	0	0	0
1	1	0	0

Explanation

• Step 1: Work out the value of NOT p (the negation of p).
• Step 2: Use the result of NOT p and the value of q as inputs to the AND gate.
• Step 3: The final column shows the output of the entire circuit: (NOT p) AND q.

Identifying and Resolving Errors in Logic and Syntax

When designing programs and circuits:

• Syntax errors prevent execution and must be corrected for the program to run.
• Logic errors produce incorrect outputs despite the program running smoothly.
• Use truth tables to verify logic in circuits and ensure that complex logic gates work as intended.
