The graphs of two functions, $f$ and $g$, are shown on the co-ordinate grid below - Junior Cycle Mathematics - Question 11 - 2011
Question 11

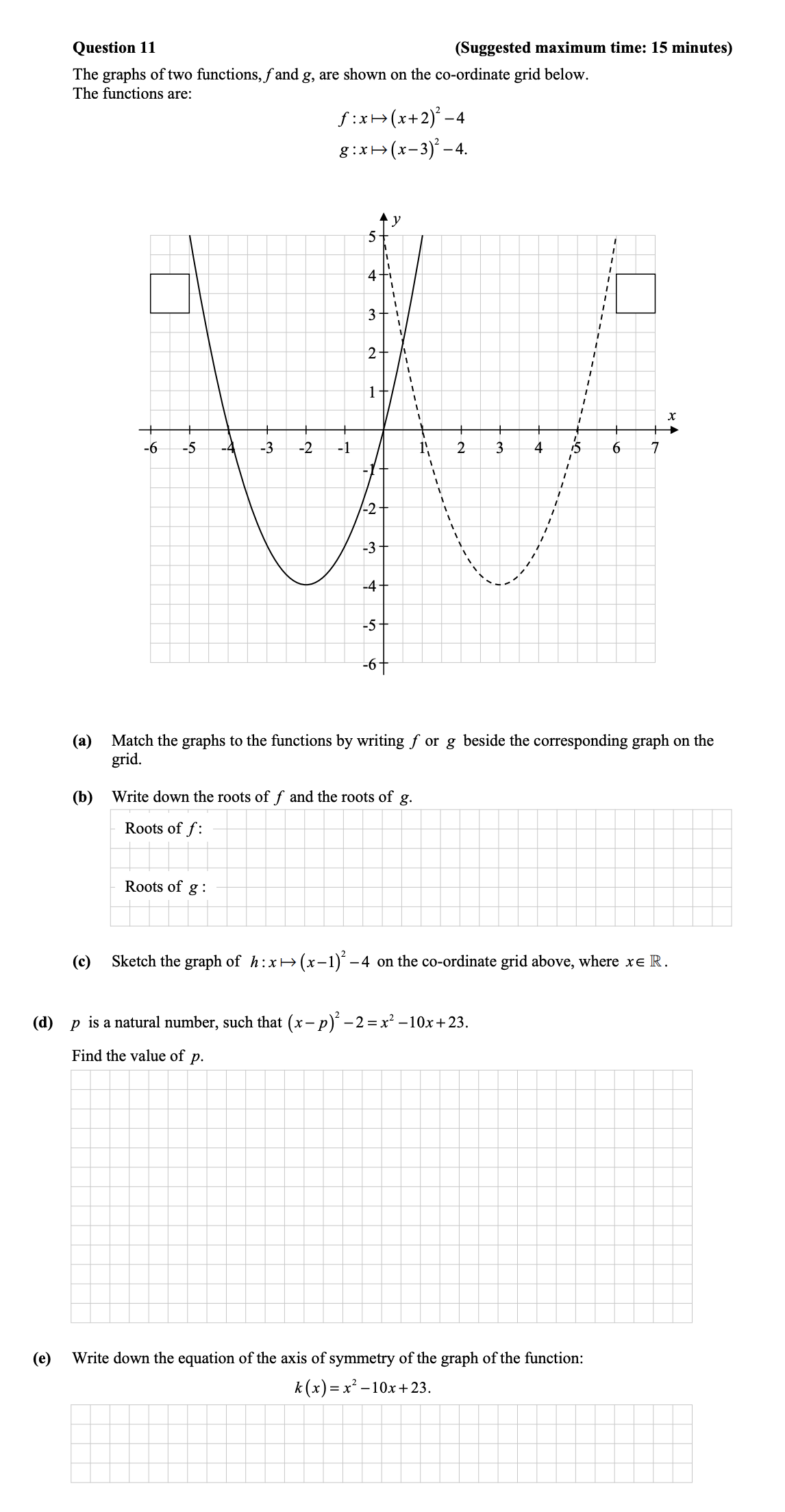

The graphs of two functions, $f$ and $g$, are shown on the co-ordinate grid below.
The functions are:
$$f: x o (x + 2)^2 - 4$$
$$g: x o (x - 3)^2 - 4$$
(a) Match ... show full transcript
Worked Solution & Example Answer:The graphs of two functions, $f$ and $g$, are shown on the co-ordinate grid below - Junior Cycle Mathematics - Question 11 - 2011
Step 1
Match the graphs to the functions by writing $f$ or $g$ beside the corresponding graph on the grid.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To determine which graph corresponds to each function, we can evaluate their values at specific points:
For f:
f(0)=(0+2)2−4=0
For g:
g(0)=(0−3)2−4=5
From the evaluations, we note that the graph of f will intersect the y-axis at 0 and is the parabola opening upwards on the grid, thus it must be on the left. Therefore, we designate;
Graph corresponding to f: Left parabola
Graph corresponding to g: Right dashed section.
Step 2
Write down the roots of $f$ and the roots of $g$.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To find the roots, we set each function equal to zero:
For f:
(x+2)2−4=0
Solving gives:
(x+2)2=4x+2=ext±2
Thus, the roots are:
x=0,−4
For g:
(x−3)2−4=0
Solving gives:
(x−3)2=4x−3=ext±2
Thus, the roots are:
x=1,5
Step 3
Sketch the graph of $h: x \to (x - 1)^2 - 4$ on the co-ordinate grid above, where $x \in \mathbb{R}$.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To sketch the graph of h, calculate several key points:
h(−1)=(−1−1)2−4=0−4=−4
h(1)=(1−1)2−4=0−4=−4
h(3)=(3−1)2−4=4−4=0
Plotting these points on the grid will show a parabola opening upwards with its vertex at (1,−4) and symmetry about x=1.
Step 4
Find the value of $p$.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To solve for p in the equation (x−p)2−2=x2−10x+23, we first rearrange it:
(x−p)2=x2−10x+25
Analyzing the right side reveals:
(x−5)2
Thus, we equate:
x−p=x−5
So, we find that:
p=5.
Step 5
Write down the equation of the axis of symmetry of the graph of the function: $k(x) = x^2 - 10x + 23$.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The axis of symmetry for a quadratic function in the form k(x)=ax2+bx+c can be found using the formula:
x=−2ab
Here, a=1 and b=−10, thus:
x=−2(1)−10=5
Therefore, the equation of the axis of symmetry is:
x=5.
