Poppy and Ella ran a 5 km race - Junior Cycle Mathematics - Question 6 - 2019
Question 6

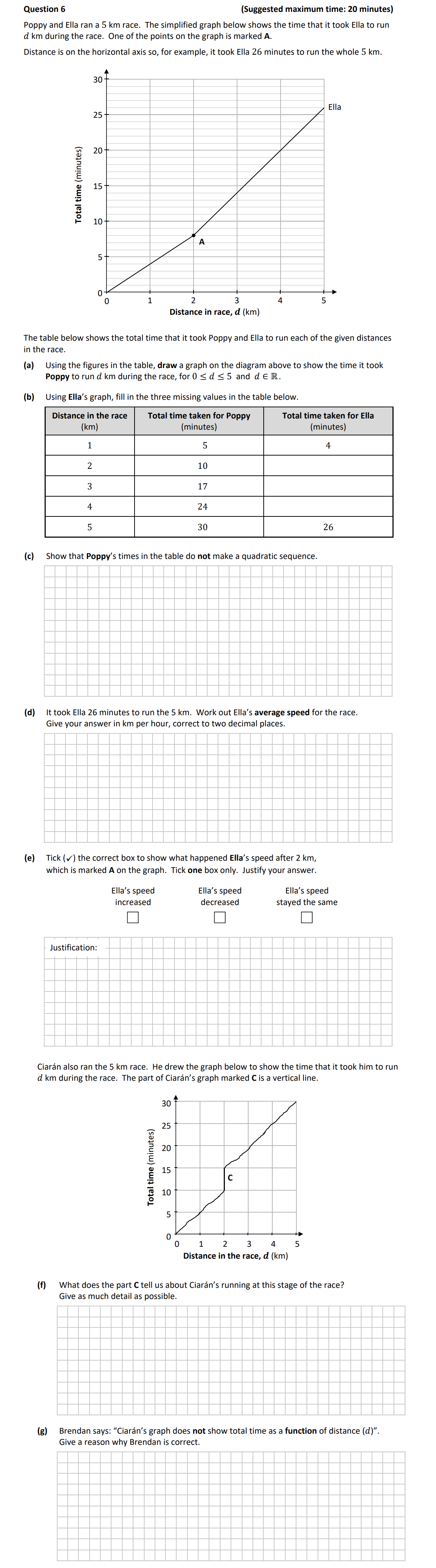

Poppy and Ella ran a 5 km race. The simplified graph below shows the time that it took Ella to run d km during the race. One of the points on the graph is marked A.
... show full transcript
Worked Solution & Example Answer:Poppy and Ella ran a 5 km race - Junior Cycle Mathematics - Question 6 - 2019
Step 1
Using the figures in the diagram above, draw a graph on the diagram to show the time it took Poppy to run d km during the race, for 0 ≤ d ≤ 5 and d ∈ ℝ.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To draw the graph for Poppy, observe that her running time is consistently greater than Ella's. For distances of:
1 km, time = 5 minutes
2 km, time = 10 minutes
3 km, time = 17 minutes
4 km, time = 30 minutes
5 km, time = 26 minutes
Plot points accordingly on the same diagram, ensuring the lines do not intersect as Poppy takes longer than Ella at most distance marks.
Step 2
Using Ella's graph, fill in the three missing values in the table below.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Distance in the race (km)
Total time taken for Poppy (minutes)
Total time taken for Ella (minutes)
1
5
4
2
10
14
3
17
20
4
30
24
5
30
26
Step 3
Show that Poppy's times in the table do not make a quadratic sequence.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To determine whether Poppy's times form a quadratic sequence, calculate the first differences:
10 - 5 = 5
17 - 10 = 7
30 - 17 = 13
30 - 30 = 0
The first differences are not constant, indicating that the sequence is not quadratic.
Step 4
It took Ella 26 minutes to run the 5 km. Work out Ella's average speed for the race. Give your answer in km per hour, correct to two decimal places.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To find Ella's average speed, use the formula:
extSpeed=TimeDistance
Substituting the known values:
Speed=26 min5 km×1 hour60 min=11.54 km/h
Step 5
Tick (✓) the correct box to show what happened Ella's speed after 2 km, which is marked A on the graph. Tick one box only. Justify your answer.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Ella's speed decreased. The justification for this can be inferred from the graph where the slope of Ella's line becomes less steep after the 2 km mark, indicating a reduction in speed.
Step 6
What does the part C tell us about Ciarán’s running at this stage of the race? Give as much detail as possible.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Part C of Ciarán's graph, which is a vertical line, indicates that he stopped running. This means that for a certain distance, his total time taken continued to increase without any distance being covered, suggesting a pause or a break in running.
Step 7
Give a reason why Brendan is correct.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Brendan is correct because a function must have one output for each input. In Ciarán’s graph, the vertical line implies multiple times for the same distance, which violates the definition of a function.
