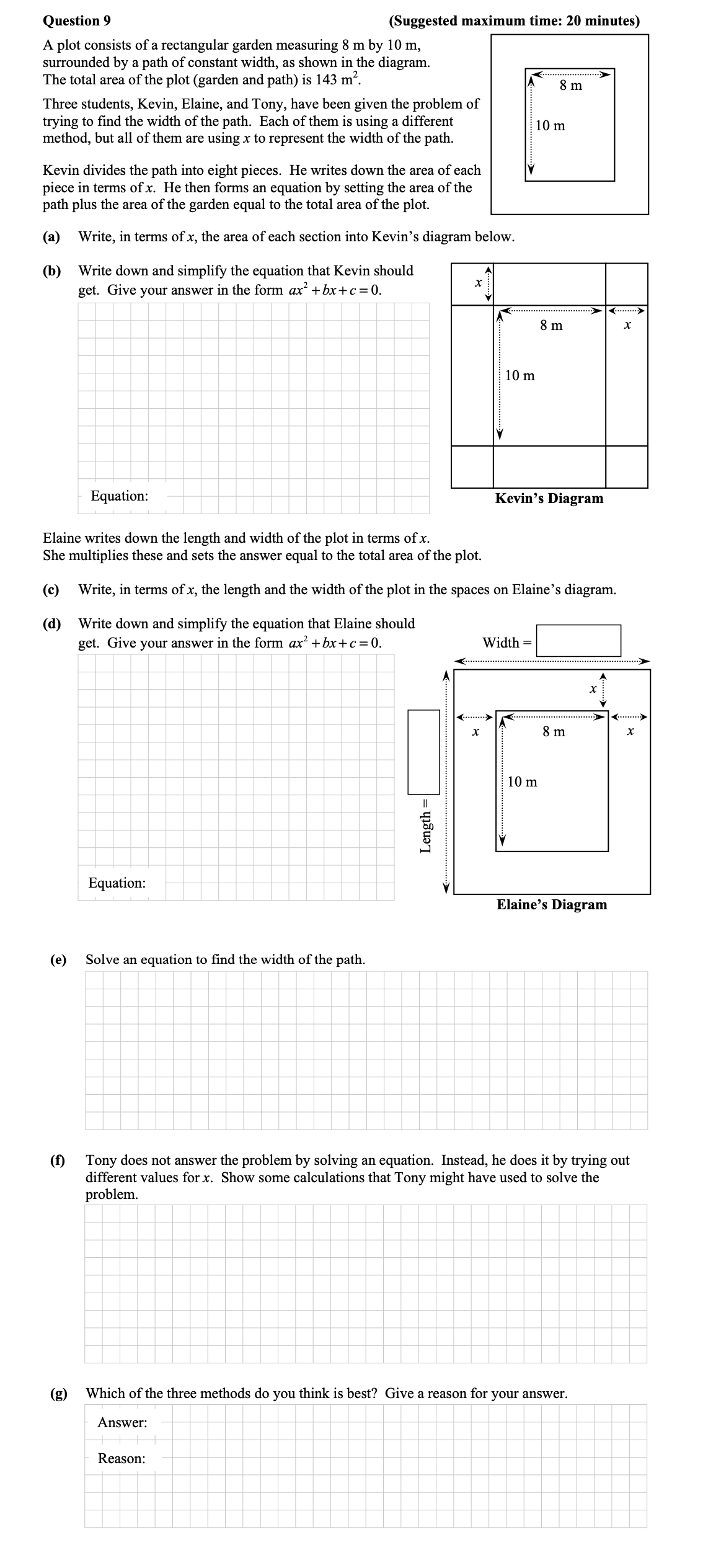

A plot consists of a rectangular garden measuring 8 m by 10 m, surrounded by a path of constant width, as shown in the diagram - Junior Cycle Mathematics - Question 9 - 2015
Question 9
A plot consists of a rectangular garden measuring 8 m by 10 m, surrounded by a path of constant width, as shown in the diagram.
The total area of the plot (garden an... show full transcript
Worked Solution & Example Answer:A plot consists of a rectangular garden measuring 8 m by 10 m, surrounded by a path of constant width, as shown in the diagram - Junior Cycle Mathematics - Question 9 - 2015
Step 1
Write, in terms of x, the area of each section into Kevin's diagram below.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
First, we categorize the sections in Kevin's diagram:
Corners: Each corner square has an area of x2 m², and since there are 4 corners, the total area for the corners is 4x2 m².
Top and Bottom Rectangles: Each rectangle at the top and bottom has dimensions of 8 m by x, hence the total area is 2(8x)=16x m².
Sides: The area of the two side rectangles is ximes10 m, so the total area is 2(10x)=20x m².
Center Rectangle: The area of the center is given by 8imes10=80 m².
Putting it all together, the total area becomes:
extTotalArea=4x2+16x+20x+80
Step 2
Write down and simplify the equation that Kevin should get. Give your answer in the form ax² + bx + c = 0.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Setting the total area equal to 143 m², we have:
4x2+36x+80=143
This simplifies to:
4x2+36x−63=0
Step 3
Write, in terms of x, the length and width of the plot in the spaces on Elaine's diagram.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In Elaine's diagram, the total width of the plot, including the path, is given by:
Width = 8+2x m
Length = 10+2x m
Step 4
Write down and simplify the equation that Elaine should get. Give your answer in the form ax² + bx + c = 0.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The area given by Elaine is the product of the length and the width equal to the total area:
(8+2x)(10+2x)=143
Expanding this gives:
80+16x+20x+4x2=143
This simplifies to:
4x2+36x−63=0
Step 5
Solve an equation to find the width of the path.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
We can factor the equation as follows:
4x2+36x−63=0
Factoring yields:
(2x−3)(2x+21)=0
Thus:
Either x=23=1.5 or x=−21 (not valid as width must be positive). Therefore, the width of the path is 1.5 m.
Step 6
Show some calculations that Tony might have used to solve the problem.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Tony's approach involves testing values for x:
Let’s choose x=1,2,3:
For x=1:
Area=(8+2(1))(10+2(1))=(8+2)(10+2)=10imes12=120extm2
For x=2:
Area=(8+2(2))(10+2(2))=(8+4)(10+4)=12imes14=168extm2
For x=3:
Area=(8+2(3))(10+2(3))=(8+6)(10+6)=14imes16=224extm2
Since the total area is 143 m², the closest estimates are between x=1 and x=2. Tony might conclude by estimating x=1.5.
Step 7
Which of the three methods do you think is best? Give a reason for your answer.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Answer: Elaine's method is best.
Reason: Although all three methods yield the correct result, Elaine's method is the quickest and simplest. Tony's method relies on trial and error rather than systematic solving, while Kevin's method involves more complex calculations.
