The diagram below shows a Horcrux - Junior Cycle Mathematics - Question 12 - 2018

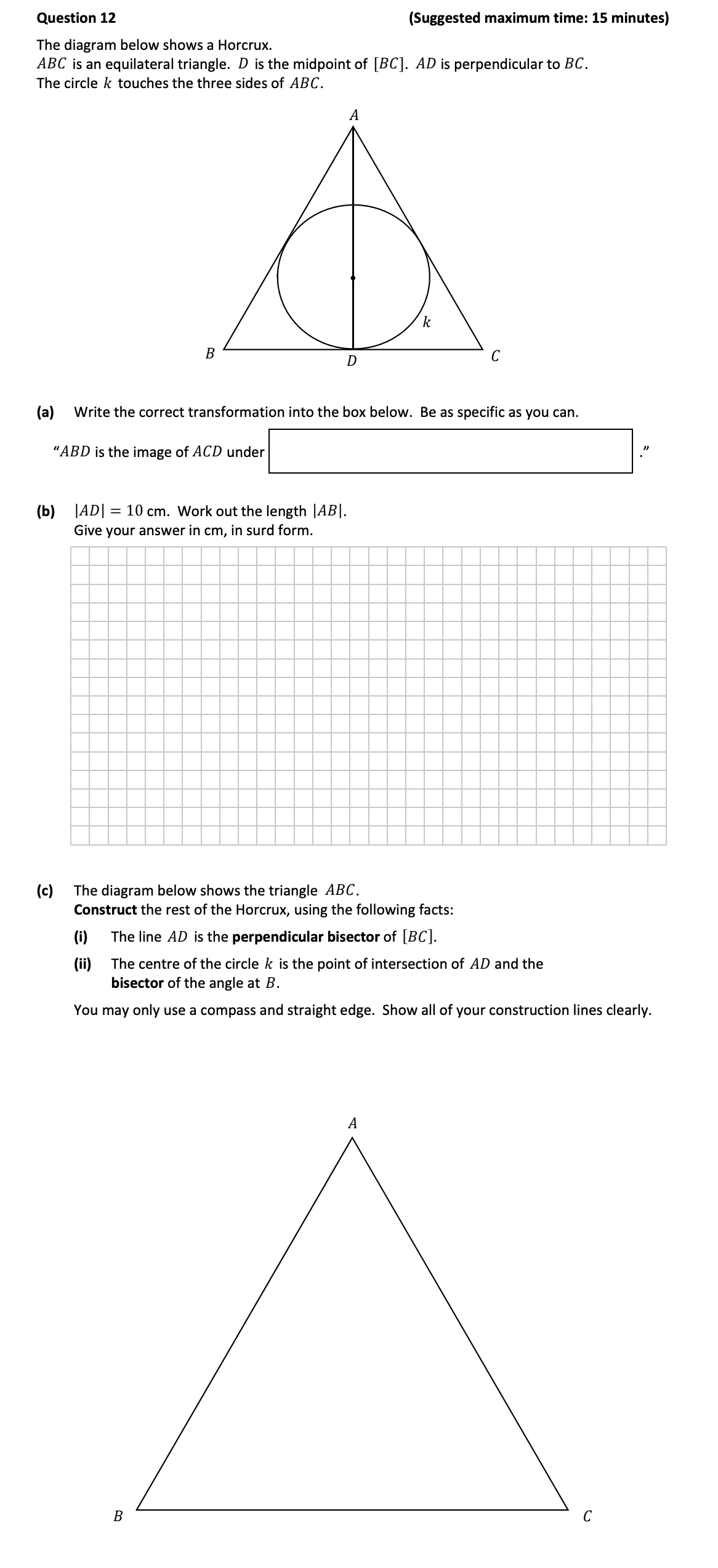

Question 12
The diagram below shows a Horcrux.
ABC is an equilateral triangle. D is the midpoint of [BC]. AD is perpendicular to BC.
The circle k touches the three sides of ABC.... show full transcript
Worked Solution & Example Answer:The diagram below shows a Horcrux - Junior Cycle Mathematics - Question 12 - 2018
Step 1
Write the correct transformation into the box below. Be as specific as you can.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
“ABD is the image of ACD under axial symmetry in the line AD.”
Step 2
|AD| = 10 cm. Work out the length |AB|.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Using trigonometry, we can set up the relation:
∣AB∣=sin60∘10
Calculating this gives:
∣AB∣=2310=320 cm
Thus, the final answer in surd form is:
∣AB∣=3203 cm
Step 3
Construct the rest of the Horcrux, using the following facts:
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Start by drawing triangle ABC with sides AB, BC, and AC equal.
Locate point D on line BC such that AD is perpendicular to BC. This ensures that D is the midpoint of segment BC.
To find the center of circle k, construct the bisector of angle B.
Where line AD intersects the bisector of angle B is the center of circle k.
Clearly mark all points and the circle that touches the sides of triangle ABC.
