Question 13

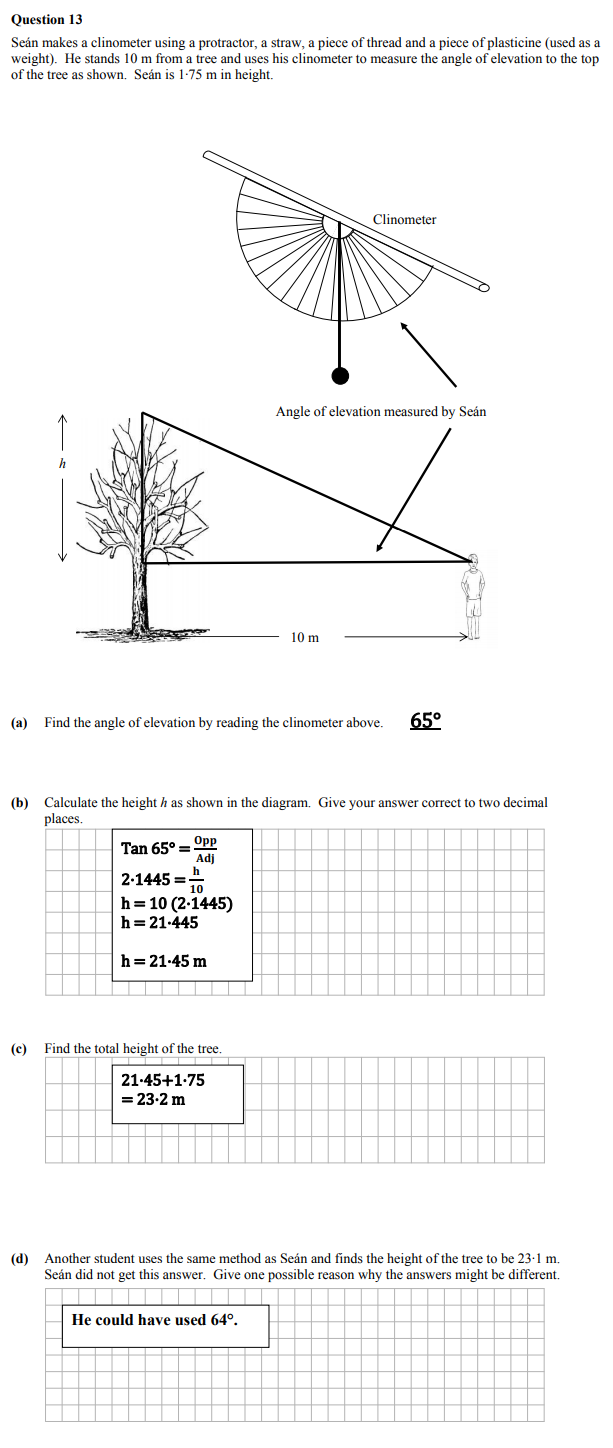

Séan makes a clinometer using a protractor, a straw, a piece of thread and a piece of plasticine (used as a weight). He stands 10 m from a tree and uses his clinomet... show full transcript
Worked Solution & Example Answer:Séan makes a clinometer using a protractor, a straw, a piece of thread and a piece of plasticine (used as a weight) - Junior Cycle Mathematics - Question 13 - 2012
Step 1
Find the angle of elevation by reading the clinometer above.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The angle of elevation read from the clinometer is given as 65°.
Step 2
Calculate the height h as shown in the diagram. Give your answer correct to two decimal places.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Using the tangent function:
tan(65°)=10h
We know that:
h=10×tan(65°)
Calculating:
h=10×2.1445 gives
h=21.445 m
Rounding to two decimal places, we get
h = 21.45 m.
Step 3
Find the total height of the tree.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The total height of the tree is calculated by adding Séan's height to the height calculated:
Total height=h+extSeˊan′sheight=21.45+1.75
Thus, the total height of the tree is
23.20 m.
Step 4
Another student uses the same method as Séan and finds the height of the tree to be 23.1 m. Séan did not get this answer. Give one possible reason why the answers might be different.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
One possible reason for the difference in height could be that the other student measured the angle of elevation differently, perhaps reading 64° instead of 65°. Small variations in angle can lead to significant differences in height calculations due to the tangent function’s sensitivity.
