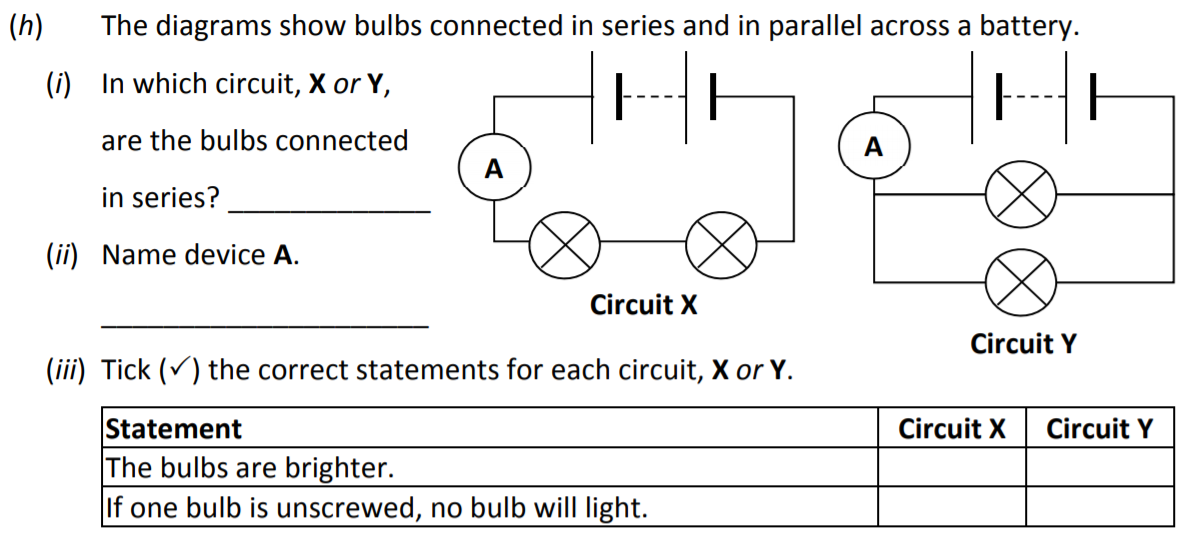

The diagrams show bulbs connected in series and in parallel across a battery.
(i) In which circuit, X or Y, are the bulbs connected in series?
_________________ ... show full transcript
Worked Solution & Example Answer:The diagrams show bulbs connected in series and in parallel across a battery - Junior Cycle Science - Question h - 2018
Step 1
In which circuit, X or Y, are the bulbs connected in series?
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The bulbs are connected in series in Circuit X. In a series connection, the current flows through each bulb one after the other, which is evident in the diagram where the bulbs are aligned in a single path.
Step 2
Name device A.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Device A is an ammeter. Ammeters are used to measure the current flowing through the circuit.
Step 3
Tick (✓) the correct statements for each circuit, X or Y.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The bulbs are brighter: This is true for Circuit Y because in parallel circuits, the voltage across each bulb is the same and thus they receive full voltage, making them brighter.
If one bulb is unscrewed, no bulb will light: This is true for Circuit X, as in a series circuit, if one bulb is removed, the circuit is broken and all bulbs will go out.
