A student set up the circuits shown to investigate how current flows through a light emitting diode (LED) - Junior Cycle Science - Question c - 2017
Question c

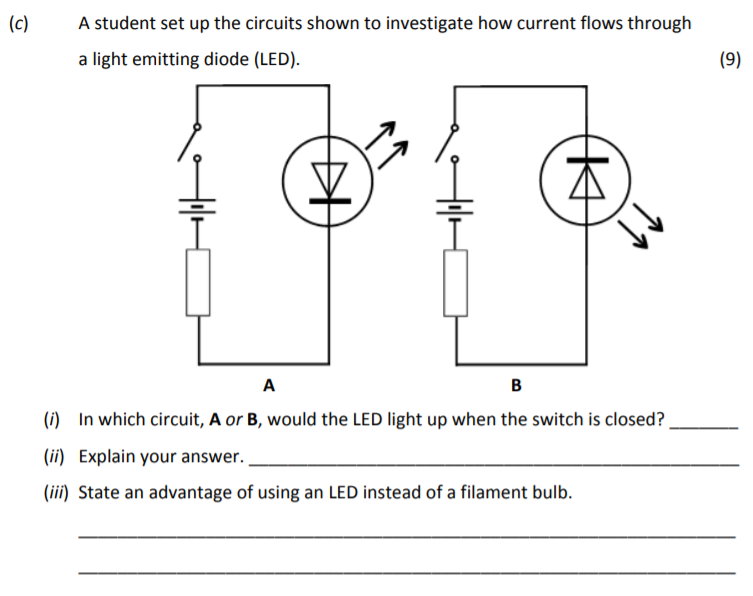

A student set up the circuits shown to investigate how current flows through a light emitting diode (LED).
(i) In which circuit, A or B, would the LED light up when... show full transcript
Worked Solution & Example Answer:A student set up the circuits shown to investigate how current flows through a light emitting diode (LED) - Junior Cycle Science - Question c - 2017
Step 1
In which circuit, A or B, would the LED light up when the switch is closed?
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The LED would light up in circuit A.
Step 2
Explain your answer.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In circuit A, the LED is forward biased, allowing current to flow through it when the switch is closed. In contrast, circuit B does not provide the correct polarity for the LED, preventing current from flowing.
Step 3
State an advantage of using an LED instead of a filament bulb.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
An advantage of using an LED is that it uses less current, making it more energy-efficient and cheaper to operate over time.
