A student set up the circuit shown to investigate the magnetic effect of a constant electric current - Junior Cycle Science - Question 9 - 2015
Question 9

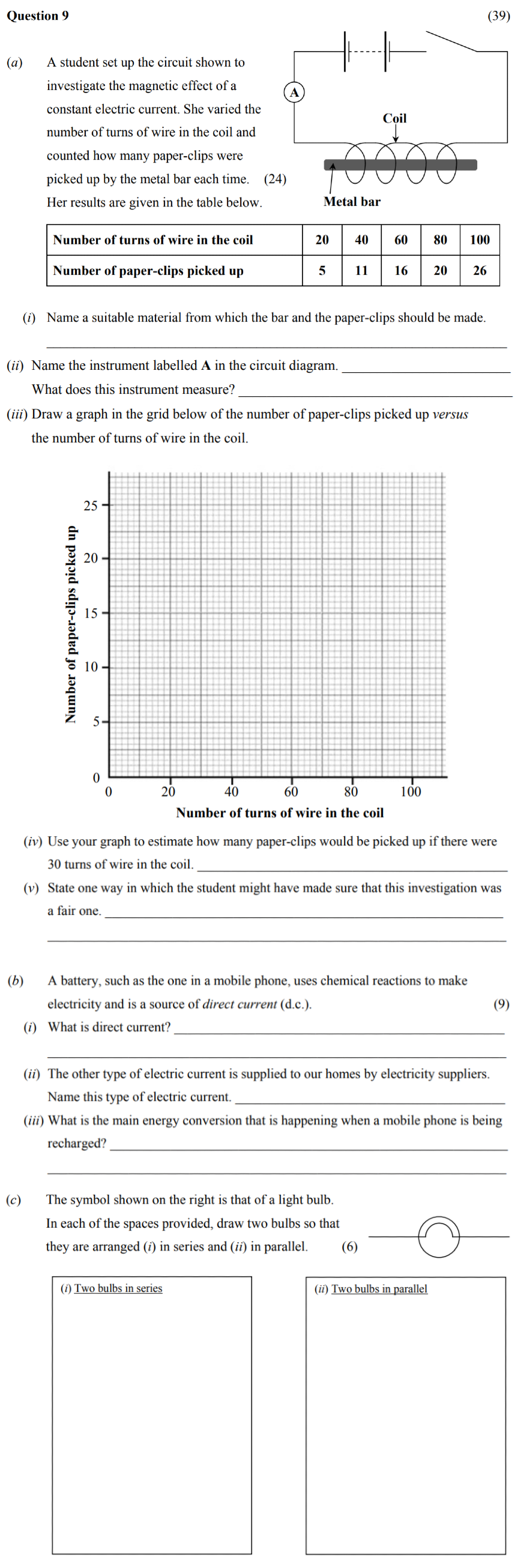

A student set up the circuit shown to investigate the magnetic effect of a constant electric current. She varied the number of turns of wire in the coil and counted ... show full transcript
Worked Solution & Example Answer:A student set up the circuit shown to investigate the magnetic effect of a constant electric current - Junior Cycle Science - Question 9 - 2015
Step 1
Name a suitable material from which the bar and the paper-clips should be made.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Iron, nickel, steel, or cobalt are suitable materials due to their ferromagnetic properties.
Step 2
Name the instrument labelled A in the circuit diagram. What does this instrument measure?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The instrument labelled A is an ammeter, which measures electric current.
Step 3
Draw a graph in the grid below of the number of paper-clips picked up versus the number of turns of wire in the coil.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Plot the points based on the table: (20, 5), (40, 11), (60, 16), (80, 20), (100, 26). Ensure the graph is accurately plotted with a line of best fit.
Step 4
Use your graph to estimate how many paper-clips would be picked up if there were 30 turns of wire in the coil.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
From the graph, estimate that approximately 8 paper-clips would be picked up with 30 turns of wire in the coil.
Step 5
State one way in which the student might have made sure that this investigation was a fair one.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
One way to ensure a fair investigation is to use the same size and mass of paper clips for each trial.
Step 6
What is direct current?
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Direct current (d.c.) is the flow of electric charge in one direction only.
Step 7
The other type of electric current is supplied to our homes by electricity suppliers. Name this type of electric current.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This type of electric current is known as alternating current (a.c.).
Step 8
What is the main energy conversion happening when a mobile phone is being recharged?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The main energy conversion is from electrical energy to chemical energy.
Step 9
Draw two bulbs in series.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A drawing showing two bulbs connected end-to-end with a single path for current.
Step 10
Draw two bulbs in parallel.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A drawing showing two bulbs connected side-by-side with separate paths for current.
