The diagram shows a section through part of a leaf - Leaving Cert Agricultural Science - Question b - 2008
Question b

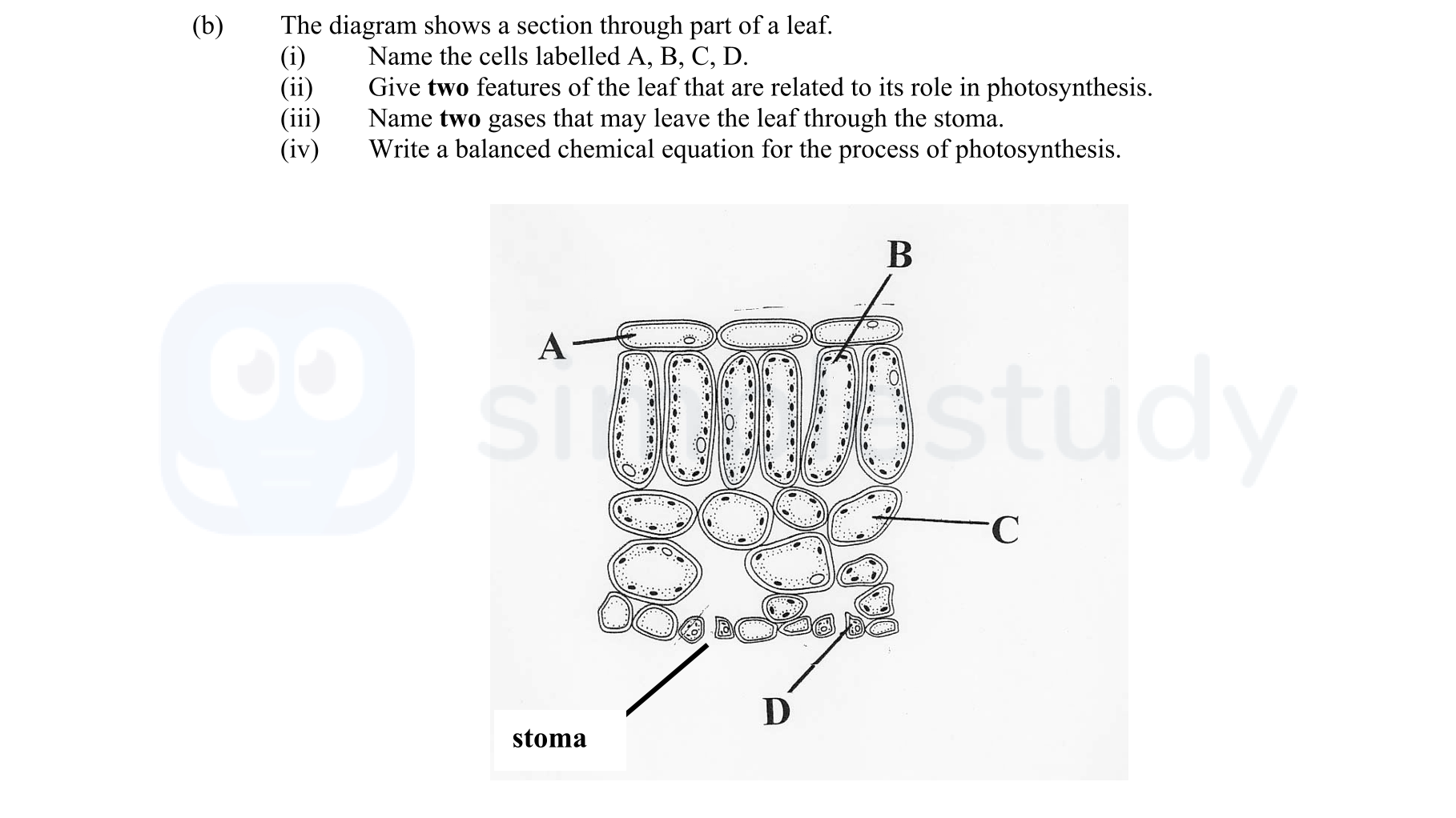

The diagram shows a section through part of a leaf.
(i) Name the cells labelled A, B, C, D.
(ii) Give two features of the leaf that are related to its role in phot... show full transcript
Worked Solution & Example Answer:The diagram shows a section through part of a leaf - Leaving Cert Agricultural Science - Question b - 2008
Step 1
Name the cells labelled A, B, C, D.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A = epidermal (cell), B = palisade (cell), C = spongy (cell), D = guard cell.
Step 2
Give two features of the leaf that are related to its role in photosynthesis.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Chloroplasts are present in the palisade layer, which is located near the upper surface of the leaf, allowing for maximum light absorption.
The spongy mesophyll allows for a greater surface area for gas exchange, facilitating the absorption of carbon dioxide and release of oxygen.
Step 3
Name two gases that may leave the leaf through the stoma.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Water vapour
Oxygen
Step 4
Write a balanced chemical equation for the process of photosynthesis.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
ightarrow C_6H_{12}O_6 + 6O_2$$
