8. (a) A particle describes a horizontal circle of radius $r$ metres with uniform angular velocity $\omega$ radians per second - Leaving Cert Applied Maths - Question 8 - 2010

Question icon

Question 8

8.-(a)-A-particle-describes-a-horizontal-circle-of-radius-$r$-metres-with-uniform-angular-velocity-$\omega$-radians-per-second-Leaving Cert Applied Maths-Question 8-2010.png

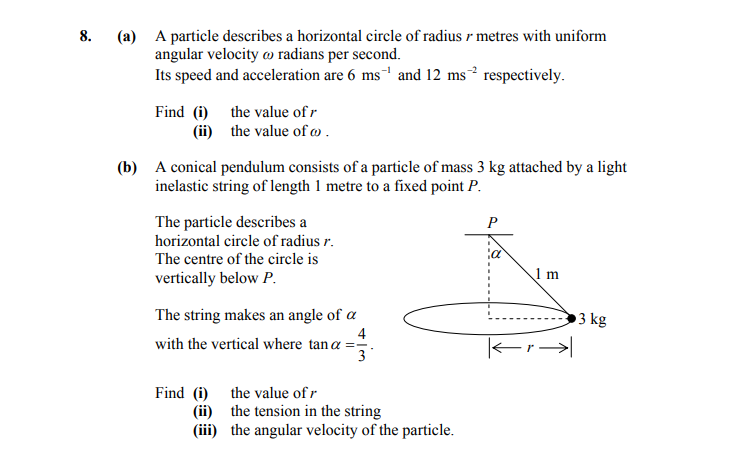

8. (a) A particle describes a horizontal circle of radius $r$ metres with uniform angular velocity $\omega$ radians per second. Its speed and acceleration are 6 ms$^... show full transcript

Worked Solution & Example Answer:8. (a) A particle describes a horizontal circle of radius $r$ metres with uniform angular velocity $\omega$ radians per second - Leaving Cert Applied Maths - Question 8 - 2010

Step 1

Find (i) the value of $r$.

96%

114 rated

Answer

Using the relationship between speed, angular velocity, and radius for circular motion, we have:

v=rωv = r\omega Given that the speed v=6v = 6 ms1^{-1}, we can express this as:

6 = r\omega \tag{1}

Next, using the relationship for centripetal acceleration:

a=v2ra = \frac{v^2}{r} Given that acceleration a=12a = 12 ms2^{-2}, we replace vv with 66:

12=(6)2r12 = \frac{(6)^2}{r} This simplifies to:

12=36r12 = \frac{36}{r} By rearranging, we find:

r=3612=3 mr = \frac{36}{12} = 3 \text{ m}

Step 2

Find (ii) the value of $\omega$.

99%

104 rated

Answer

Substituting the value of rr into equation (1):

6=3ω6 = 3\omega Solving for ω\omega gives:

ω=63=2 radians per second\omega = \frac{6}{3} = 2 \text{ radians per second}

Step 3

Find (i) the value of $r$.

96%

101 rated

Answer

For the conical pendulum, we use the relationship involving the angle α\alpha and the component of the forces:

Using the given value:

tanα=43    sinα=45,cosα=35\tan \alpha = \frac{4}{3} \implies \sin \alpha = \frac{4}{5}, \cos \alpha = \frac{3}{5}

Considering vertical and horizontal components of the tension TT, we have:

  1. Vertical component: Tcosα=mg    T35=3g    T=5gT \cos \alpha = mg \implies T \cdot \frac{3}{5} = 3g\implies T = 5g

Substituting g10g \approx 10 ms2^{-2} results in:

T=50 NT = 50 \text{ N}

To find rr, we can again examine the circular motion: Tsinα=mv2rT \sin \alpha = m\frac{v^2}{r} So: 5045=3v2r    40=3v2r50 \cdot \frac{4}{5} = 3\frac{v^2}{r} \implies 40 = 3 \cdot \frac{v^2}{r} Substituting for v=ωr=0.8ωv = \omega r = 0.8 \omega yields:

r=0.8 mr = 0.8 \text{ m}

Step 4

Find (ii) the tension in the string.

98%

120 rated

Answer

From our earlier calculation, we established that: T=50 NT = 50 \text{ N}

Step 5

Find (iii) the angular velocity of the particle.

97%

117 rated

Answer

We know: Tsinα=mv2rT \sin \alpha = m \frac{v^2}{r} Substituting what we have: 5045=3(0.8ω)20.850 \cdot \frac{4}{5} = 3\frac{(0.8\omega)^2}{0.8} This simplifies to: 40=30.8ω2    ω2=402.440 = 3 \cdot 0.8 \omega^2 \implies \omega^2 = \frac{40}{2.4} Solving gives: ω4.08 radians per second\omega \approx 4.08 \text{ radians per second}
