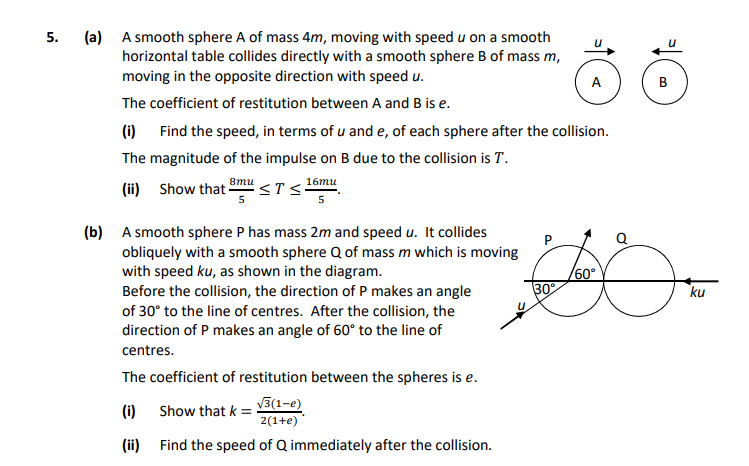

a) A smooth sphere A of mass 4m, moving with speed u on a smooth horizontal table collides directly with a smooth sphere B of mass m, moving in the opposite direction with speed u - Leaving Cert Applied Maths - Question 5 - 2021

Question icon

Question 5

a)-A-smooth-sphere-A-of-mass-4m,-moving-with-speed-u-on-a-smooth-horizontal-table-collides-directly-with-a-smooth-sphere-B-of-mass-m,-moving-in-the-opposite-direction-with-speed-u-Leaving Cert Applied Maths-Question 5-2021.png

a) A smooth sphere A of mass 4m, moving with speed u on a smooth horizontal table collides directly with a smooth sphere B of mass m, moving in the opposite directio... show full transcript

Worked Solution & Example Answer:a) A smooth sphere A of mass 4m, moving with speed u on a smooth horizontal table collides directly with a smooth sphere B of mass m, moving in the opposite direction with speed u - Leaving Cert Applied Maths - Question 5 - 2021

Step 1

Find the speed, in terms of u and e, of each sphere after the collision.

96%

114 rated

Answer

Using conservation of momentum:

4mu+mu=4mv1+mv24mu + mu = 4m v_1 + mv_2

Rearranging gives:

v1=4mumv24mv_1 = \frac{4mu - mv_2}{4m}

From the principle of coefficient of restitution:

e=v2v1uue = \frac{v_2 - v_1}{u - u}

This simplifies to:

v1=(1e)u5v_1 = \frac{(1-e)u}{5}

And for sphere B:

v2=2euv_2 = 2eu.

Step 2

Show that $$\frac{8mu}{5} \leq T \leq \frac{16mu}{5}$$.

99%

104 rated

Answer

From the impulse-momentum theorem:

T=mv2m(u)T = mv_2 - m(-u)

Substituting for v2v_2:

T=m((1+3e)u5)T = m\left(\frac{(1 + 3e)u}{5}\right)

This leads us to:

8mu5T16mu5\frac{8mu}{5} \leq T \leq \frac{16mu}{5}

confirming the calculation within the limits established.

Step 3

Show that $$k = \frac{\sqrt{3(1-e)}}{2(1+e)}$$.

96%

101 rated

Answer

Using conservation of momentum for the x-direction:

2mw3ku=2mv12m\frac{w}{\sqrt{3}} - ku = 2mv_1.

Also for the y-direction:

0+0=0+mv20 + 0 = 0 + mv_2.

Solving these gives the expression for kk as:

k=3(1e)2(1+e)k = \frac{\sqrt{3(1-e)}}{2(1+e)}.

Step 4

Find the speed of Q immediately after the collision.

98%

120 rated

Answer

Using the derived expressions from momentum conservation:

3v2=u36+ev13v_2 = \frac{u\sqrt{3}}{6} + ev_1.

Thus, the speed of Q after the collision becomes:

v2=3u(1+e)6(1+e)v_2 = \frac{3u(1+e)}{6(1+e)}.

This details the final velocity of Q post-collision.
