1. (a) A car passes four collinear markers A, B, C, and D while moving in a straight line with uniform acceleration - Leaving Cert Applied Maths - Question 1 - 2017

Question icon

Question 1

1.-(a)-A-car-passes-four-collinear-markers-A,-B,-C,-and-D-while-moving-in-a-straight-line-with-uniform-acceleration-Leaving Cert Applied Maths-Question 1-2017.png

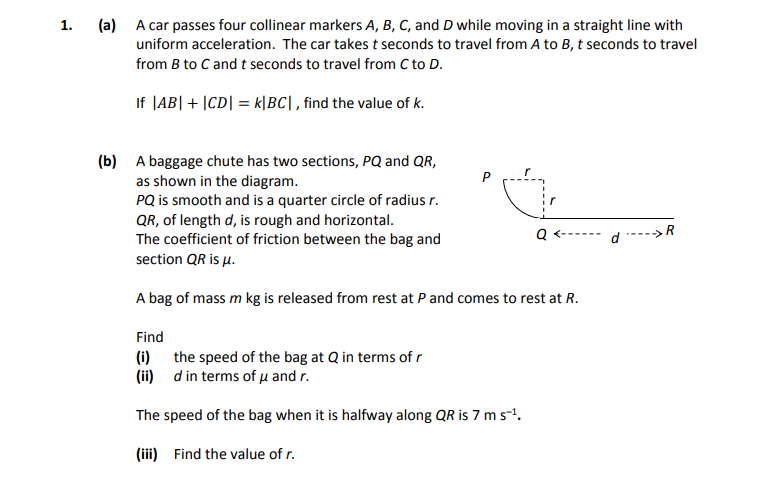

1. (a) A car passes four collinear markers A, B, C, and D while moving in a straight line with uniform acceleration. The car takes t seconds to travel from A to B, t... show full transcript

Worked Solution & Example Answer:1. (a) A car passes four collinear markers A, B, C, and D while moving in a straight line with uniform acceleration - Leaving Cert Applied Maths - Question 1 - 2017

Step 1

Find the value of k

96%

114 rated

Answer

To find the value of k, we start by calculating the distances between the markers:

  • The distance |AB| is given by the formula:

    AB=ut+12at2|AB| = ut + \frac{1}{2}at^2

  • The distance |AC| can be expressed as:

    AC=u(2t)+12a(2t)2=2ut+2at2|AC| = u(2t) + \frac{1}{2}a(2t)^2 = 2ut + 2at^2

  • Similarly, the distance |AD| is:

    AD=u(3t)+12a(3t)2=3ut+92at2|AD| = u(3t) + \frac{1}{2}a(3t)^2 = 3ut + \frac{9}{2}at^2

  • The distance |BC| can be found as:

    BC=u(t)+12a(t)2=ut+12at2|BC| = u(t) + \frac{1}{2}a(t)^2 = ut + \frac{1}{2}at^2

  • The distance |CD| is:

    CD=u(t)+12a(t)2=ut+12at2|CD| = u(t) + \frac{1}{2}a(t)^2 = ut + \frac{1}{2}at^2

Now, substituting into the equation |AB| + |CD| = k|BC|:

AB+CD=(2ut+3at2)=k(2ut+2at2)|AB| + |CD| = (2ut + 3at^2) = k(2ut + 2at^2)

From here, we simplify to find that k = 2.

Step 2

Find the speed of the bag at Q in terms of r

99%

104 rated

Answer

To find the speed of the bag at point Q:

Using the conservation of energy:

12mv2=mgh\frac{1}{2}mv^2 = mgh

Where h is the height equal to the radius r. Thus:

v2=2grv^2 = 2gr

So the speed v can be expressed as:

v=2grv = \sqrt{2gr}

Step 3

Find d in terms of μ and r

96%

101 rated

Answer

Considering the horizontal section QR with coefficient of friction μ, the forces acting on the bag give:

F=μmgF = \mu mg

Using the equations of motion:

v2=u2+2adv^2 = u^2 + 2ad

Where u is the speed at Q, we substitute to find:

0=2gr2ad\Rightarrow 0 = 2gr - 2a d

Thus we can express d as a function of μ and r:

Step 4

Find the value of r

98%

120 rated

Answer

Using energy considerations at halfway through QR:

Given speed at halfway is 7 m s⁻¹, we can set up:

v2=u2+2adv^2 = u^2 + 2ad

Substituting values:

49=(grg)+2ad49 = \left( \frac{gr}{g} \right) + 2a d

This leads us to solve and find:

r=5mr = 5 \, m
