The diagram shows a cell - Leaving Cert Biology - Question a - 2015
Question a

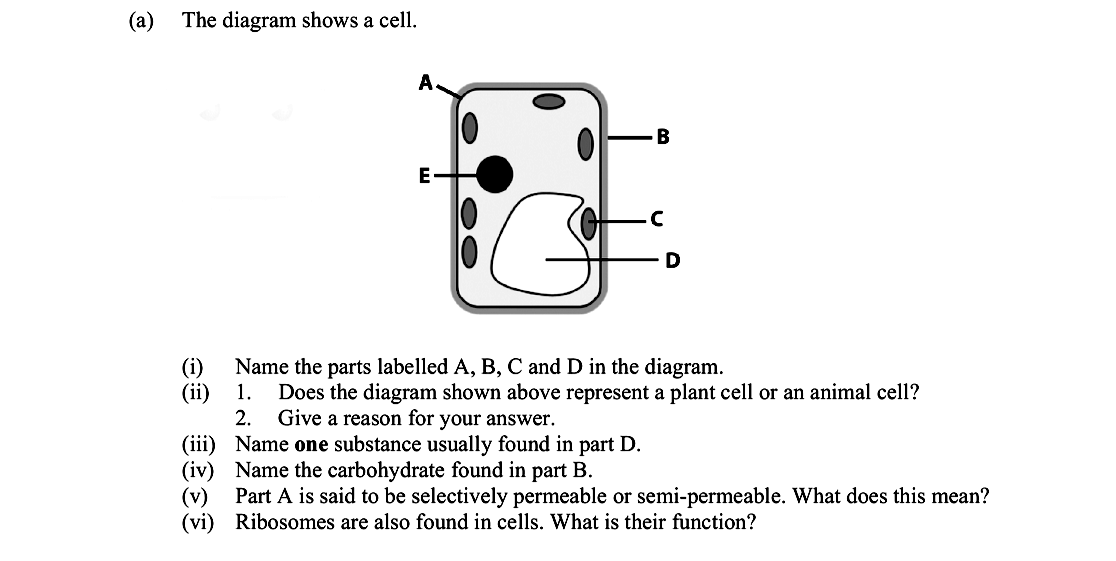

The diagram shows a cell.
(i) Name the parts labelled A, B, C and D in the diagram.
(ii) 1. Does the diagram shown above represent a plant cell or an animal cell?
... show full transcript
Worked Solution & Example Answer:The diagram shows a cell - Leaving Cert Biology - Question a - 2015
Step 1
Name the parts labelled A, B, C and D in the diagram.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A = Cell membrane
B = Cell Wall
C = Chloroplast or mitochondrion
D = Vacuole
Step 2
Does the diagram shown above represent a plant cell or an animal cell? Give a reason for your answer.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Plant Cell
The presence of a cell wall (B) and chloroplast(s) (C) indicates it is a plant cell, as these structures are typically found in plant cells but not in animal cells.
Step 3
Name one substance usually found in part D.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Water or sugar, salt, or pigments can typically be found in the vacuole.
Step 4
Name the carbohydrate found in part D.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Cellulose is the carbohydrate usually found in the cell wall.
Step 5
Part A is said to be selectively permeable or semi-permeable. What does this mean?
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This means that Part A (the cell membrane) allows certain substances to pass through it while restricting others, thus maintaining the internal environment of the cell.
Step 6
Ribosomes are also found in cells. What is their function?
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Ribosomes are responsible for synthesizing proteins, which are essential for various cellular functions.
