The diagram shows part of a transverse section through a dicotyledonous stem - Leaving Cert Biology - Question c - 2006
Question c

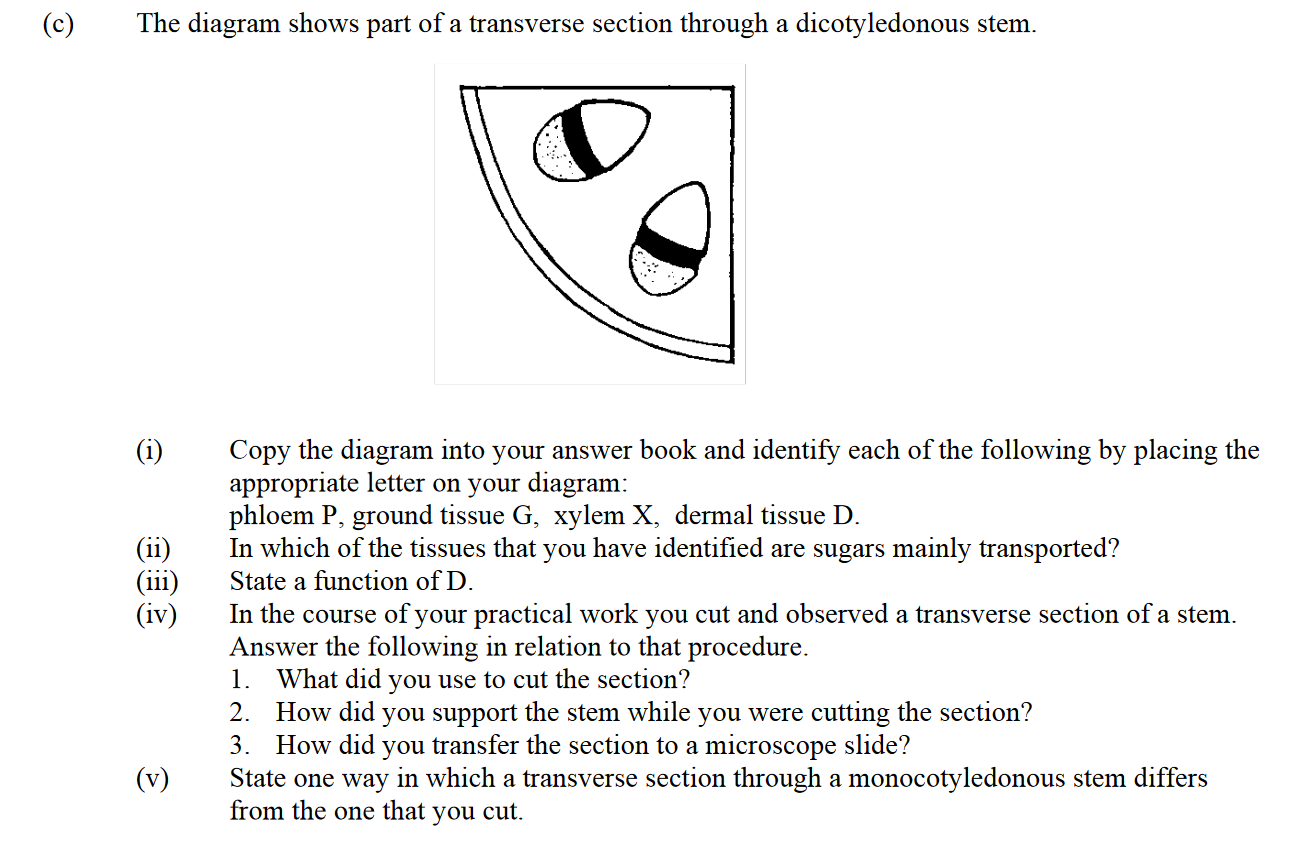

The diagram shows part of a transverse section through a dicotyledonous stem.
(i) Copy the diagram into your answer book and identify each of the following by placi... show full transcript
Worked Solution & Example Answer:The diagram shows part of a transverse section through a dicotyledonous stem - Leaving Cert Biology - Question c - 2006
Step 1
Copy the diagram into your answer book and identify each of the following by placing the appropriate letter on your diagram: phloem P, ground tissue G, xylem X, dermal tissue D.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In the diagram, label the following:
P for phloem
G for ground tissue
X for xylem
D for dermal tissue.
Step 2
In which of the tissues that you have identified are sugars mainly transported?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Sugars are mainly transported in the phloem (P).
Step 3
State a function of D.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The function of D (dermal tissue) is to provide protection, such as preventing water loss and protecting against infection or to maintain turgor pressure.
Step 4
What did you use to cut the section?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
I used a blade or scalpel to cut the section.
Step 5
How did you support the stem while you were cutting the section?
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
I supported the stem using a pith holder or by holding it with my hand.
Step 6
How did you transfer the section to a microscope slide?
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
I used a mounted needle or a section lifter or forceps or a paintbrush to transfer the section to a microscope slide.
Step 7
State one way in which a transverse section through a monocotyledonous stem differs from the one that you cut.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In a transverse section through a monocotyledonous stem, the vascular bundles are scattered, unlike in a dicotyledonous stem where they are arranged in a ring.
