The photograph below shows the tissues in a transverse section of a dicotyledonous (dicot) stem - Leaving Cert Biology - Question a - 2009
Question a

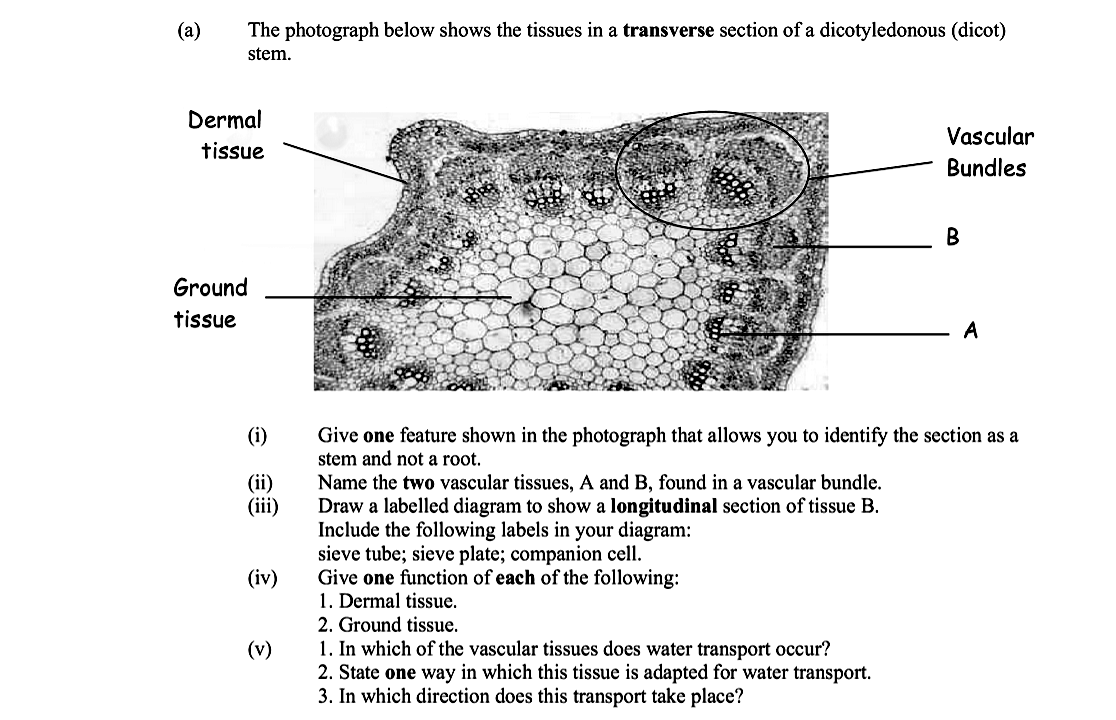

The photograph below shows the tissues in a transverse section of a dicotyledonous (dicot) stem.
Give one feature shown in the photograph that allows you to identif... show full transcript
Worked Solution & Example Answer:The photograph below shows the tissues in a transverse section of a dicotyledonous (dicot) stem - Leaving Cert Biology - Question a - 2009
Step 1
Give one feature shown in the photograph that allows you to identify the section as a stem and not a root.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The presence of vascular bundles arranged in a ring is a key feature that identifies the section as a stem rather than a root.
Step 2
Name the two vascular tissues, A and B, found in a vascular bundle.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A = Xylem
B = Phloem
Step 3
Draw a labelled diagram to show a longitudinal section of tissue B.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The diagram should show two tubes: one wide (the sieve tube) and one narrow (the companion cell). Label them accordingly.
Step 4
Give one function of each of the following:
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Dermal Tissue: Protects the plant and aids in absorption.
Ground Tissue: Stores nutrients and provides support, allowing for diffusion.
Step 5
In which of the vascular tissues does water transport occur?
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Water transport occurs in the Xylem.
Step 6
State one way in which this tissue is adapted for water transport.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The xylem vessels are narrow and continuous, which facilitates the upward movement of water.
Step 7
In which direction does this transport take place?
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This transport takes place upwards.
