The diagram shows part of a transverse section through a dicotyledonous stem - Leaving Cert Biology - Question c - 2006
Question c

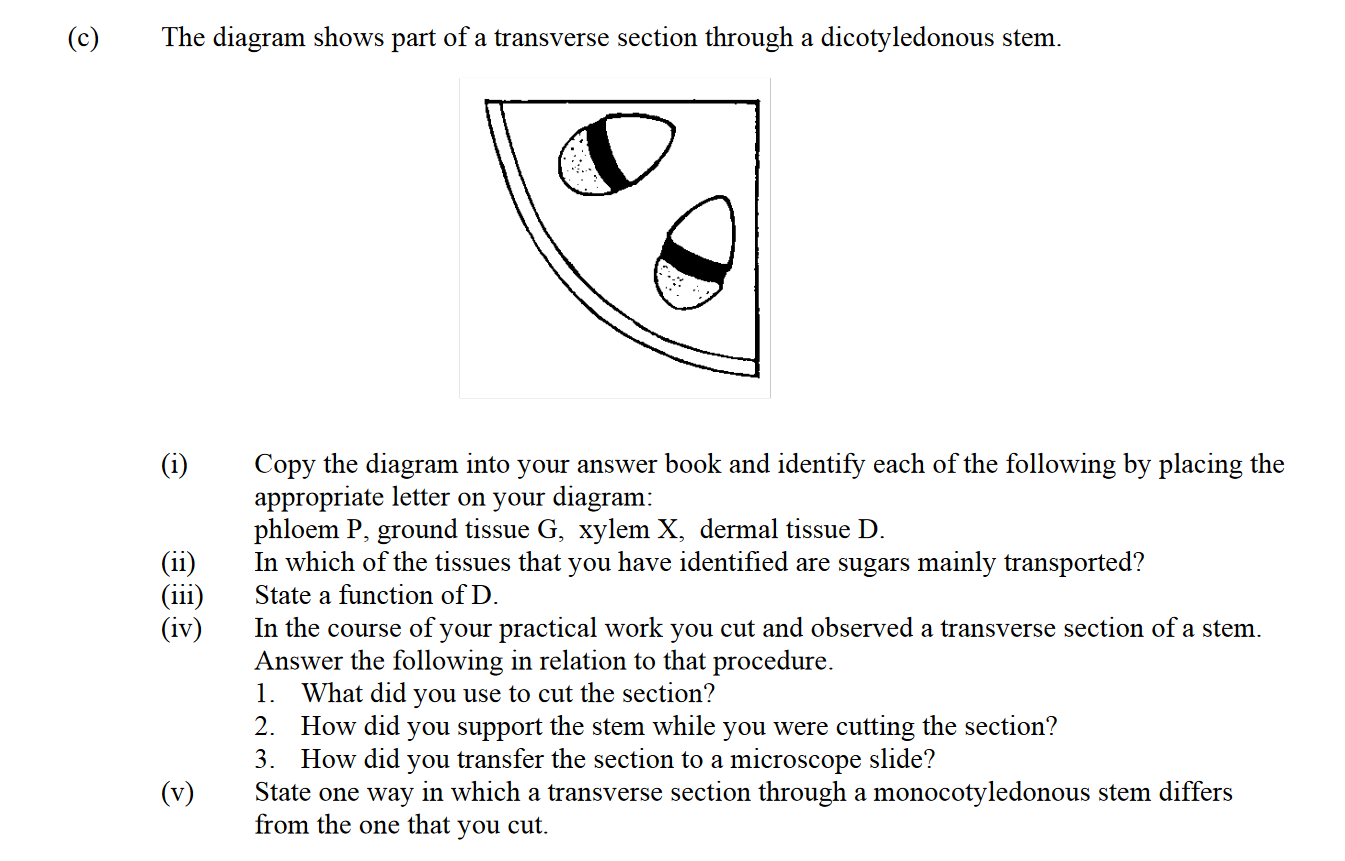

The diagram shows part of a transverse section through a dicotyledonous stem.
(i) Copy the diagram into your answer book and identify each of the following by placi... show full transcript
Worked Solution & Example Answer:The diagram shows part of a transverse section through a dicotyledonous stem - Leaving Cert Biology - Question c - 2006
Step 1
Copy the diagram into your answer book and identify each of the following by placing the appropriate letter on your diagram:
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In the diagram, the following labels should be applied:
P: Phloem
G: Ground Tissue
X: Xylem
D: Dermal Tissue
Step 2
In which of the tissues that you have identified are sugars mainly transported?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Sugars are mainly transported in the Phloem (P) tissue.
Step 3
State a function of D.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The function of the Dermal Tissue (D) is primarily protection, which might include preventing water loss, protecting against infection, or providing structural support.
Step 4
What did you use to cut the section?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
I used a blade or scalpel to cut the section.
Step 5
How did you support the stem while you were cutting the section?
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
I used a holder, hand, or implied support to stabilize the stem while cutting.
Step 6
How did you transfer the section to a microscope slide?
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
I used a mounted needle, section lifter, forceps, or a paintbrush to transfer the section to the microscope slide.
Step 7
State one way in which a transverse section through a monocotyledon stem differs from the one that you cut.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In a transverse section of a monocotyledon stem, the vascular bundles are scattered, in contrast to the organized arrangement seen in a dicotyledonous stem.
