The atoms in a water molecule are joined by covalent bonds - Leaving Cert Chemistry - Question b - 2017

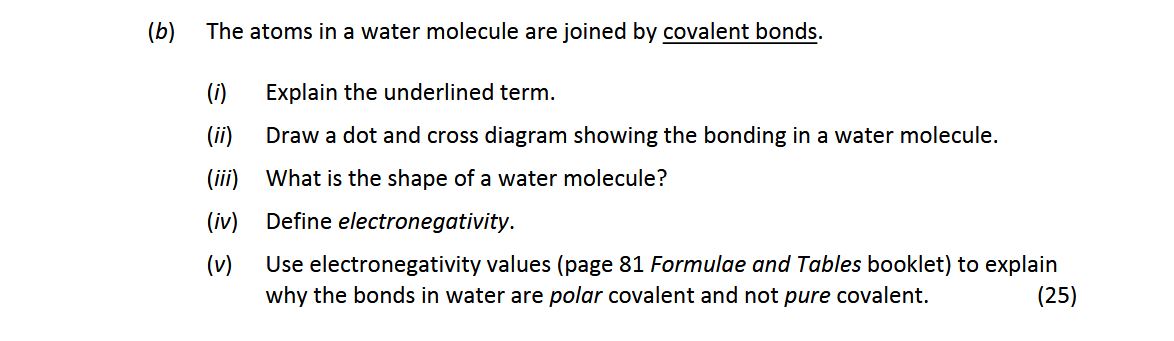

Question b
The atoms in a water molecule are joined by covalent bonds.
(i) Explain the underlined term.
(ii) Draw a dot and cross diagram showing the bonding in a water molec... show full transcript
Worked Solution & Example Answer:The atoms in a water molecule are joined by covalent bonds - Leaving Cert Chemistry - Question b - 2017
Step 1
Explain the underlined term.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Covalent bonds are formed by the attraction between a shared pair of electrons from two atoms. In this type of bonding, atoms share electrons to achieve stability and full outer electron shells.
Step 2
Draw a dot and cross diagram showing the bonding in a water molecule.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The dot and cross diagram for a water molecule (H₂O) illustrates that oxygen has 6 valence electrons and shares one with each of the two hydrogen atoms, represented as follows:
H •
|
O:
\
H •
In the diagram, the dots represent the electrons from hydrogen and the crosses represent the electrons from oxygen.
Step 3
What is the shape of a water molecule?
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The shape of a water molecule is V-shaped or angular due to the two lone pairs of electrons on the oxygen atom, which repel the hydrogen atoms.
Step 4
Define electronegativity.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Electronegativity is a relative measure of an atom's ability to attract shared electrons in a chemical bond. Higher electronegativity values indicate a stronger attraction for electrons.
Step 5
Use electronegativity values to explain why the bonds in water are polar covalent and not pure covalent.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The electronegativity difference between oxygen (2.34) and hydrogen (2.20) is 1.24, indicating that the bonds are polar covalent. This is because the oxygen atom has a stronger attraction for the shared electrons than hydrogen, resulting in a partial negative charge on the oxygen and a partial positive charge on the hydrogen atoms.
