Carbon exists in different physical forms (allotropes), e.g - Leaving Cert Chemistry - Question B - 2014
Question B

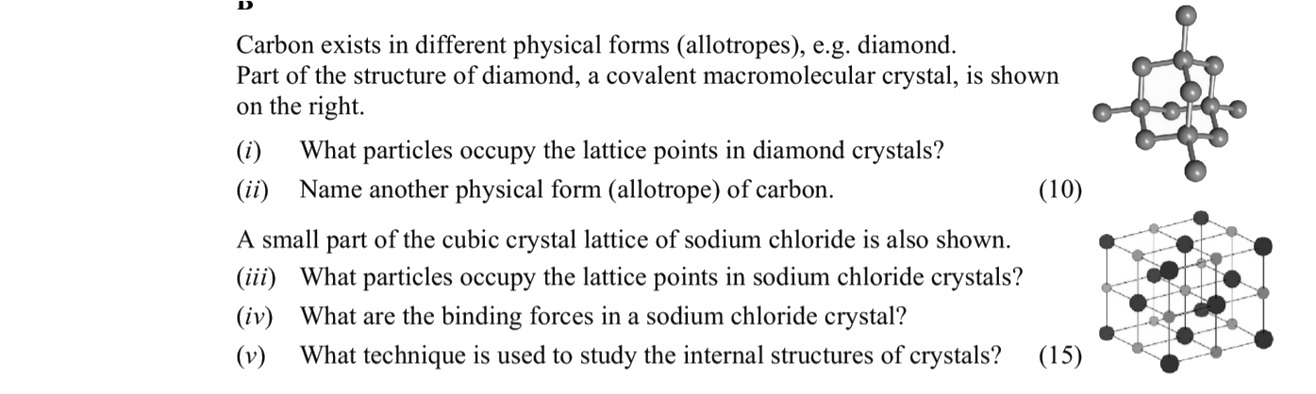

Carbon exists in different physical forms (allotropes), e.g. diamond. Part of the structure of diamond, a covalent macromolecular crystal, is shown on the right.
(i... show full transcript
Worked Solution & Example Answer:Carbon exists in different physical forms (allotropes), e.g - Leaving Cert Chemistry - Question B - 2014
Step 1
What particles occupy the lattice points in diamond crystals?
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The lattice points in diamond crystals are occupied by carbon atoms. Diamond has a tetrahedral structure where each carbon atom is covalently bonded to four other carbon atoms.
Step 2
Name another physical form (allotrope) of carbon.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Another physical form (allotrope) of carbon is graphite. Other examples include buckminsterfullerene, charcoal, and graphene.
Step 3
What particles occupy the lattice points in sodium chloride crystals?
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In sodium chloride crystals, the lattice points are occupied by positive ions (Na extsuperscript{+}) and negative ions (Cl extsuperscript{-}).
Step 4
What are the binding forces in a sodium chloride crystal?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The binding forces in a sodium chloride crystal are ionic bonds. These are electrostatic forces of attraction between the positively charged sodium ions and negatively charged chloride ions.
Step 5
What technique is used to study the internal structures of crystals?
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The technique used to study the internal structures of crystals is X-ray analysis. This method involves directing X-rays at a crystal and analyzing the diffraction pattern to determine the arrangement of atoms within the crystal.
