Copy into your answer book the structure of the ester shown and indicate clearly on your diagram a carbon atom which is in planar geometry in the molecule, and also a carbon atom which is in tetrahedral geometry in the molecule - Leaving Cert Chemistry - Question 7 - 2004

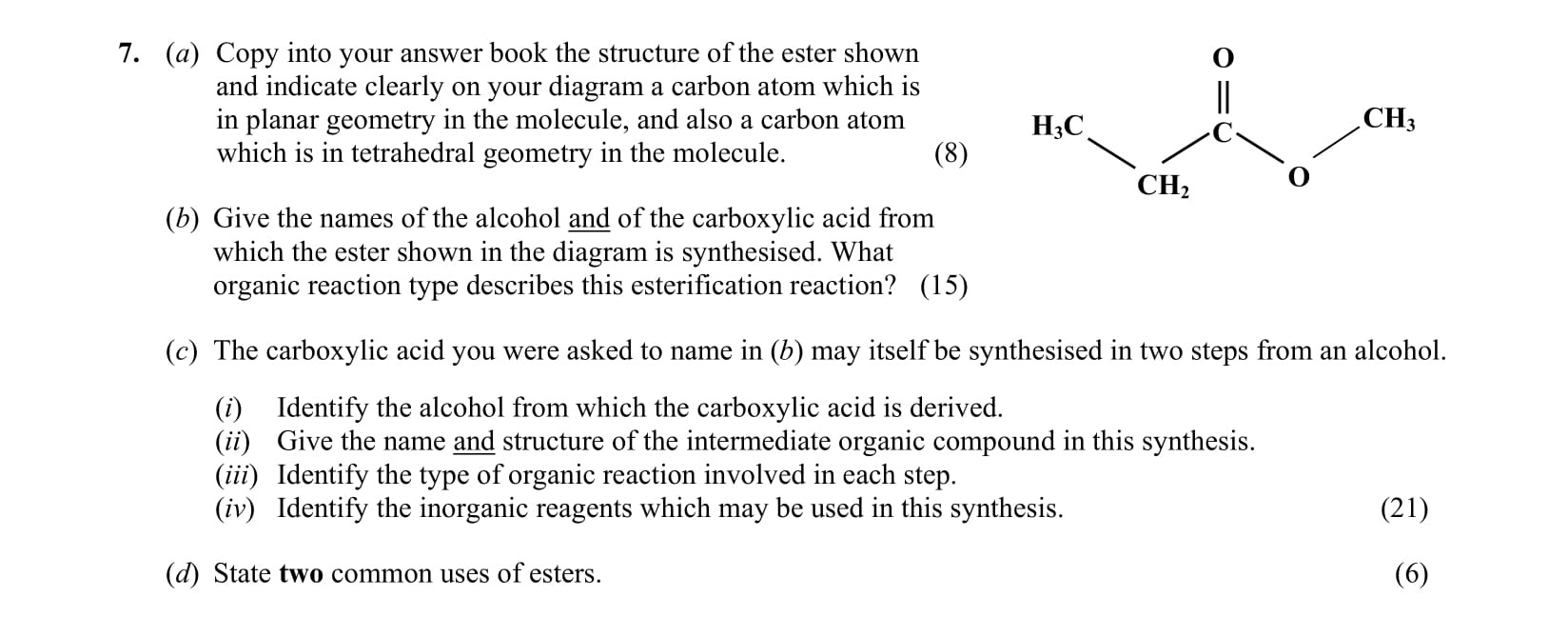

Question 7
Copy into your answer book the structure of the ester shown and indicate clearly on your diagram a carbon atom which is in planar geometry in the molecule, and also ... show full transcript
Worked Solution & Example Answer:Copy into your answer book the structure of the ester shown and indicate clearly on your diagram a carbon atom which is in planar geometry in the molecule, and also a carbon atom which is in tetrahedral geometry in the molecule - Leaving Cert Chemistry - Question 7 - 2004
Step 1
Copy into your answer book the structure of the ester shown and indicate clearly on your diagram a carbon atom which is in planar geometry in the molecule, and also a carbon atom which is in tetrahedral geometry in the molecule.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The structure of the ester is shown as follows:
O
||
H3C - C - O - CH3
|
CH3
The carbon atom involved in a double bond with oxygen (C=O) is planar due to sp² hybridization.
The carbon attached to the two methyl groups (CH3) is tetrahedral because it is sp³ hybridized.
Step 2
Give the names of the alcohol and of the carboxylic acid from which the ester shown in the diagram is synthesised. What organic reaction type describes this esterification reaction?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The alcohol used in the synthesis is:
Methanol (Methyl alcohol)
The carboxylic acid used is:
Propanoic acid
The reaction type that describes this esterification is:
Substitution/condensation (dehydration reaction).
Step 3
Identify the alcohol from which the carboxylic acid is derived.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The alcohol from which the carboxylic acid (propanoic acid) is derived is:
Propan-1-ol (1-propanol).
Step 4
Give the name and structure of the intermediate organic compound in this synthesis.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The intermediate organic compound in this synthesis is:
Propanal (propionaldehyde)
Its structure can be represented as:
H H
| |
H--C--C=O
|
H
Step 5
Identify the type of organic reaction involved in each step.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
For the conversion of propan-1-ol to propanal, the type of organic reaction is:
Oxidation.
For the conversion of propanal to propanoic acid, the type is:
Oxidation (redox reaction).
Step 6
Identify the inorganic reagents which may be used in this synthesis.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The inorganic reagents that may be used in the synthesis are:
Sodium dichromate (Na2Cr2O7) for oxidation to propanal.
Sulfuric acid (H2SO4) for acidic conditions in the reactions.
Potassium permanganate (KMnO4) for further oxidation.
Step 7
State two common uses of esters.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Two common uses of esters include:
As fragrances and flavorings in food and cosmetics.
As solvents in paints, varnishes, and adhesives.
