The drawing shows the elevation and ground floor plan of a terraced house which has been converted from a traditional town shop - Leaving Cert Construction Studies - Question 3 - 2022
Question 3

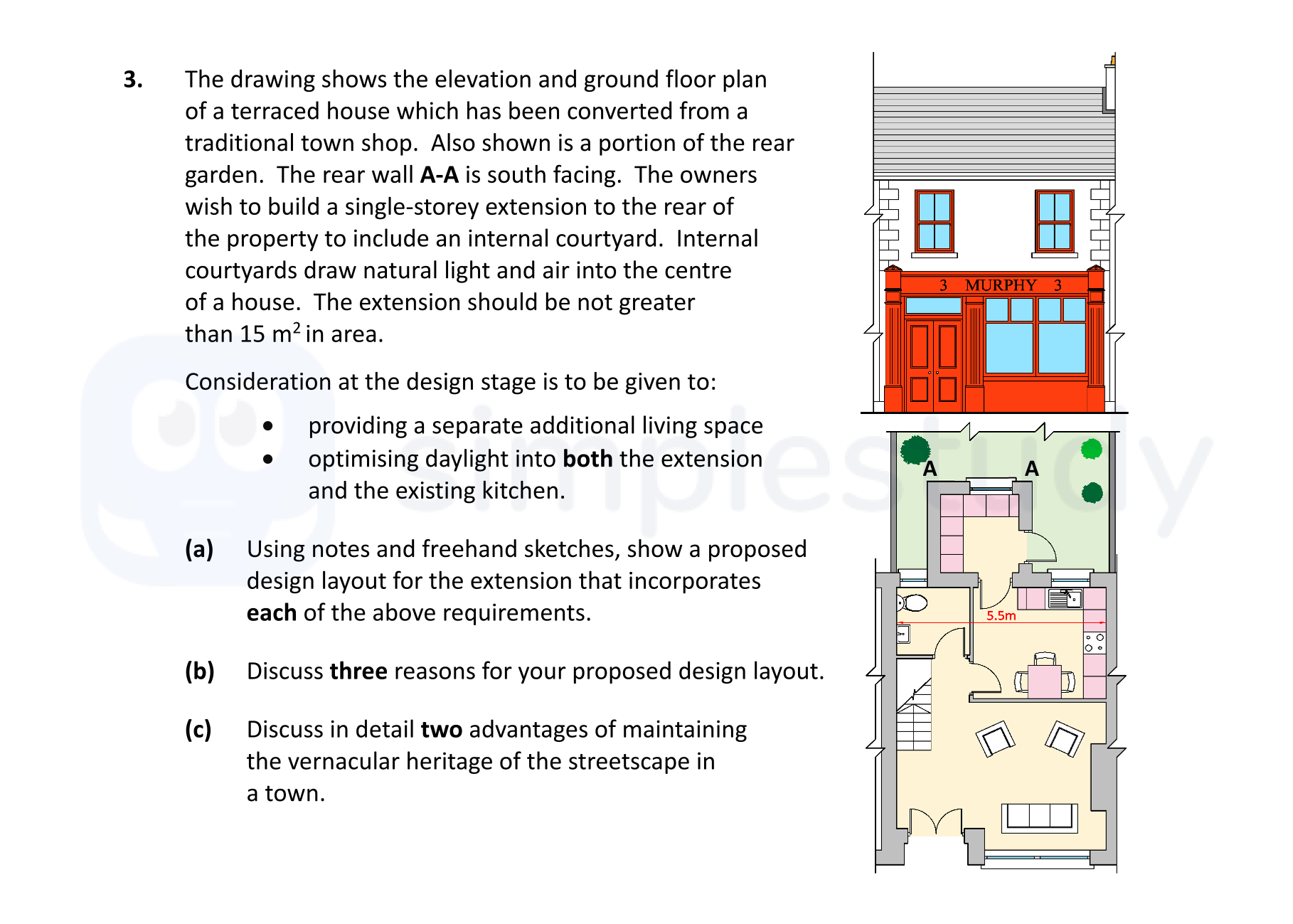

The drawing shows the elevation and ground floor plan of a terraced house which has been converted from a traditional town shop. Also shown is a portion of the rear ... show full transcript
Worked Solution & Example Answer:The drawing shows the elevation and ground floor plan of a terraced house which has been converted from a traditional town shop - Leaving Cert Construction Studies - Question 3 - 2022
Step 1
Using notes and frehand sketches, show a proposed design layout for the extension that incorporates each of the above requirements.
Answer
To meet the requirements of the extension, the proposed design layout includes:
-
Internal Courtyard: An internal courtyard is proposed at the rear between the new extension and the existing kitchen. This courtyard includes:
- Large south-facing windows to maxmise natural light, ensuring well-lit spaces.
- Installation of folding or sliding doors that open to the courtyard, creating a seamless transition and allowing airflow.
-
Separate Additional Living Space: The new extension features an open-plan living area designed to:
- Enhance connectivity with the main house while maintaining privacy.
- Include a dual aspect window that opens onto the courtyard.
-
Optimising Daylight: We incorporate high-performance glazing techniques such as triple or quadruple low-e glazing to:
- Ensure thermal comfort.
- Facilitate a visual connection with the outdoor courtyard.
- Strategically remove sections of the rear wall to allow light to penetrate into the living spaces.
Step 2
Discuss three reasons for your proposed design layout.
Answer
The proposed design layout has been formulated based on several thoughtful considerations:
-
Natural Light Access: The orientation and placement of large south-facing windows allow sunlight to permeate internal spaces throughout the day, creating an inviting environment.
-
Flexible Living Spaces: An open-plan layout allows for versatility in how spaces can be used. The living area can easily accommodate various activities while integrating with the kitchen.
-
Enhanced Connection with Nature: The use of an internal courtyard draws natural elements into the home, thereby reducing stress levels for occupants and enhancing their overall well-being.
Step 3
Discuss in detail two advantages of maintaining the vernacular heritage of the streetscape in a town.
Answer
Maintaining the vernacular heritage of a streetscape provides numerous benefits:
-
Cultural Identity: Historic buildings contribute significantly to the local character and identity of a town, fostering a sense of community pride among residents. This connection encourages investment in local heritage.
-
Sustainable Development: Incorporating existing vernacular buildings into urban planning is key to sustainable development. It helps retain the historical context while minimizing the environmental impact of new constructions, thereby preserving natural resources.
