Using a single-line labelled diagram, sketch a system to supply hot and cold water to a kitchen sink, as shown in the accompanying sketch - Leaving Cert Construction Studies - Question 3 - 2009
Question 3

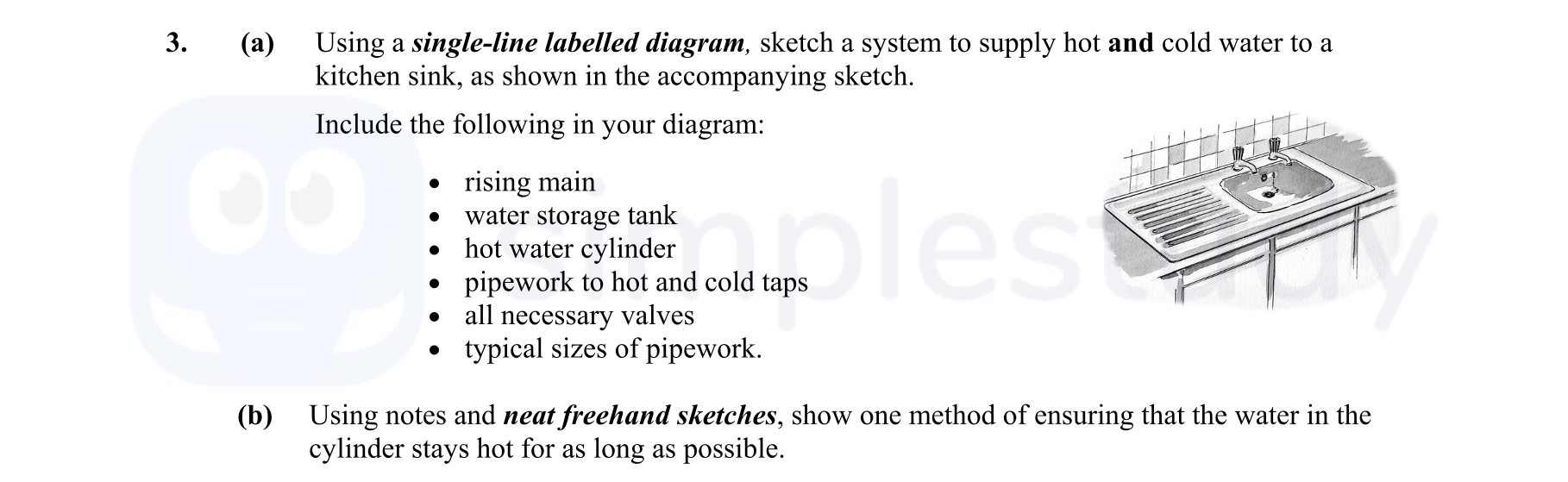

Using a single-line labelled diagram, sketch a system to supply hot and cold water to a kitchen sink, as shown in the accompanying sketch.
Include the following in ... show full transcript
Worked Solution & Example Answer:Using a single-line labelled diagram, sketch a system to supply hot and cold water to a kitchen sink, as shown in the accompanying sketch - Leaving Cert Construction Studies - Question 3 - 2009
Step 1
Rising Main
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The rising main should be a 12 mm pipe that supplies water to the system from the main supply.
Step 2
Water Storage Tank
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Include a water storage tank with a capacity of 230 litres per minute, properly insulated to minimize heat loss.
Step 3
Hot Water Cylinder
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Sketch an insulated hot water cylinder connected to the system.
Step 4
Pipework to Hot and Cold Taps
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Illustrate the pipework leading to the hot and cold taps, indicating the sizes of the pipes, with the cold feed being 22 mm and the hot water supply being 22 mm.
Step 5
Valves
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Include all necessary valves in the diagram:
A stop valve connected to the kitchen sink.
A gate valve on the cold water feed.
A drain off valve for maintenance purposes.
Step 6
Typical Sizes of Pipework
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Indicate that the pipe sizes used in the system should include 22 mm for the cold water feed, 22 mm for the hot water supply, and additional pipe sizes as necessary.
