The sketch shows a portion of the external wall and the first floor of a two storey dwelling house - Leaving Cert Construction Studies - Question 1 - 2014

Question icon

Question 1

The-sketch-shows-a-portion-of-the-external-wall-and-the-first-floor-of-a-two-storey-dwelling-house-Leaving Cert Construction Studies-Question 1-2014.png

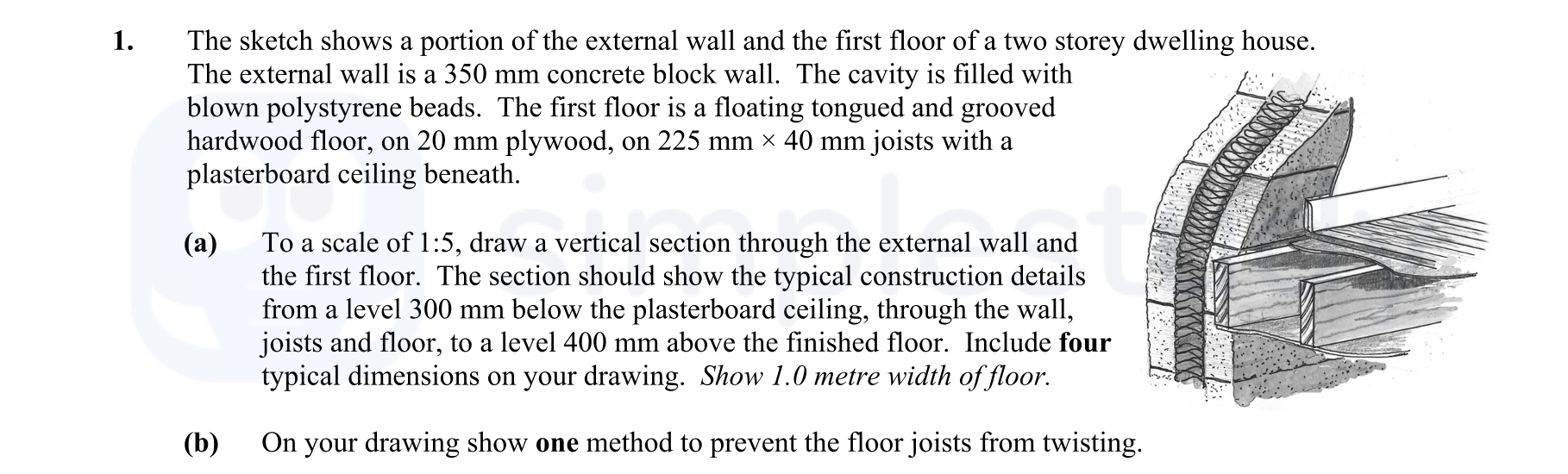

The sketch shows a portion of the external wall and the first floor of a two storey dwelling house. The external wall is a 350 mm concrete block wall. The cavity is ... show full transcript

Worked Solution & Example Answer:The sketch shows a portion of the external wall and the first floor of a two storey dwelling house - Leaving Cert Construction Studies - Question 1 - 2014

Step 1

To a scale of 1:5, draw a vertical section through the external wall and the first floor.

96%

114 rated

Answer

  1. Begin by drawing the external wall as a 350 mm concrete block structure. Indicate the wall's cavity filled with blown polystyrene beads.

  2. Illustrate the first floor showing the floating tongued and grooved hardwood floor supported by 20 mm plywood on top of the 225 mm × 40 mm joists.

  3. Add the plasterboard ceiling beneath the joists, ensuring to show the dimensions correctly scaled at 1:5.

  4. Focus on construction details from a level 300 mm below the plasterboard ceiling down to a level 400 mm above the finished floor. Ensure typical dimensions are clearly marked in your drawing for clarity.

  5. Label elements such as floor joists, plywood, and insulation, and include markers for the width of the floor, which should show 1.0 metre.

Step 2

On your drawing show one method to prevent the floor joists from twisting.

99%

104 rated

Answer

  1. Indicate a method of installing herringbone bracing between the joists. This consists of diagonal members that connect between joists at regular intervals to enhance stability and help resist twisting.

  2. Label the herringbone bridging clearly indicating it is 50 mm × 40 mm typical or proprietary metal bridging.

  3. Alternatively, show solid bridging layout, which consists of 225 mm × 40 mm typical dimensions between joists for additional support against twisting.
