Parents Pricing Home Leaving Cert Construction Studies Heat & U-Value Calculations Using the following data, calculate the U-value of the external wall of a new dwelling house
Using the following data, calculate the U-value of the external wall of a new dwelling house - Leaving Cert Construction Studies - Question 5 - 2015 Question 5

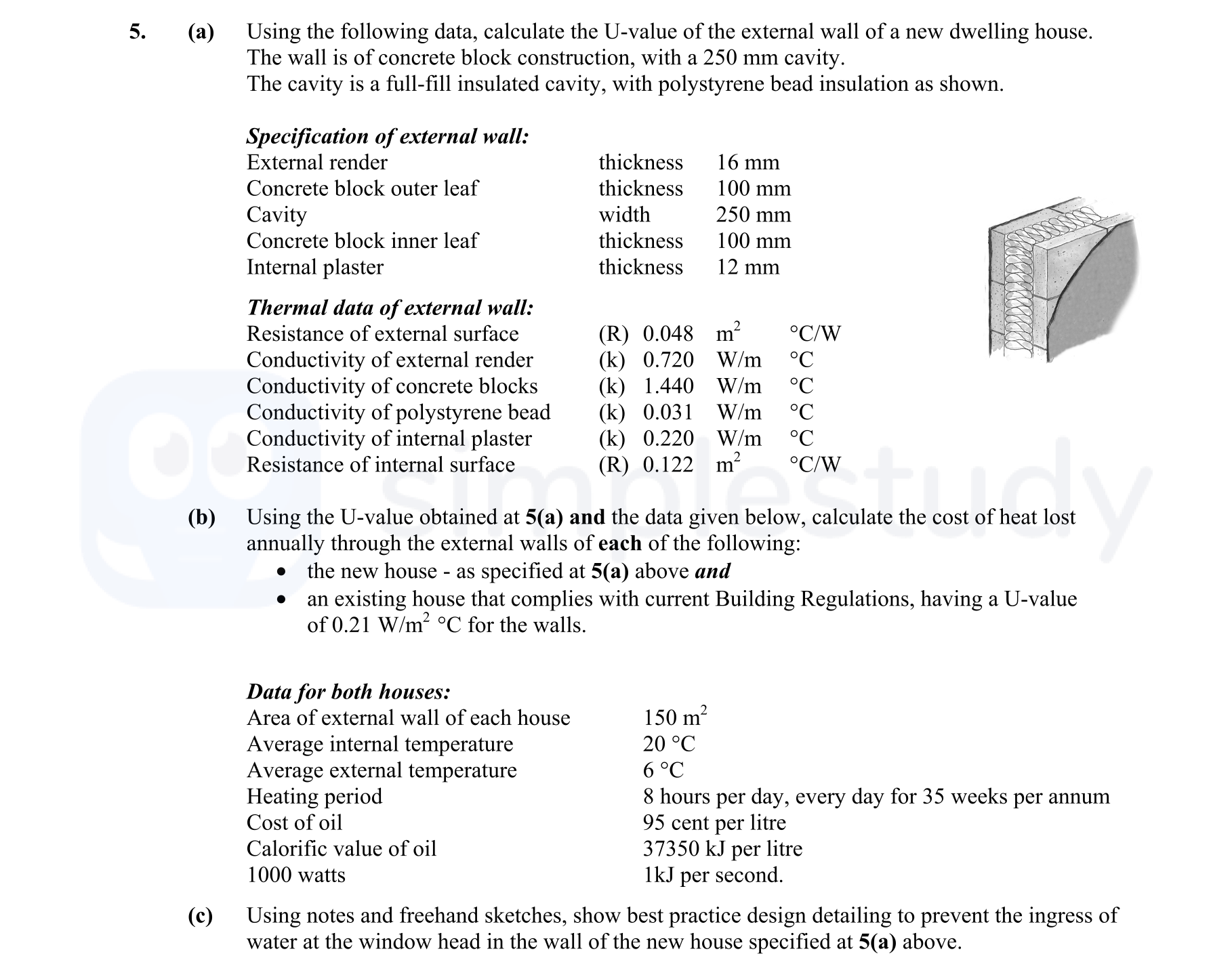

View full question Using the following data, calculate the U-value of the external wall of a new dwelling house. The wall is of concrete block construction, with a 250 mm cavity. The c... show full transcript
View marking scheme Worked Solution & Example Answer:Using the following data, calculate the U-value of the external wall of a new dwelling house - Leaving Cert Construction Studies - Question 5 - 2015
Calculate the U-value of the external wall Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
To find the U-value, use the formula:
U = 1 R t o t a l U = \frac{1}{R_{total}} U = R t o t a l 1
R t o t a l = R e x t e r n a l + R b l o c k e x t + R c a v i t y + R b l o c k i n t + R i n t e r n a l R_{total} = R_{external} + R_{block_{ext}} + R_{cavity} + R_{block_{int}} + R_{internal} R t o t a l = R e x t er na l + R b l oc k e x t + R c a v i t y + R b l oc k in t + R in t er na l
Given the resistances:
R e x t e r n a l = 0.048 R_{external} = 0.048 R e x t er na l = 0.048 R b l o c k e x t = 100 1.440 = 0.069 R_{block_{ext}} = \frac{100}{1.440} = 0.069 R b l oc k e x t = 1.440 100 = 0.069 R c a v i t y = 250 0.250 = 1.000 R_{cavity} = \frac{250}{0.250} = 1.000 R c a v i t y = 0.250 250 = 1.000 R b l o c k i n t = 100 1.440 = 0.069 R_{block_{int}} = \frac{100}{1.440} = 0.069 R b l oc k in t = 1.440 100 = 0.069 R i n t e r n a l = 0.122 R_{internal} = 0.122 R in t er na l = 0.122
Calculating R t o t a l R_{total} R t o t a l R t o t a l = 0.048 + 0.069 + 1.000 + 0.069 + 0.122 = 1.308 R_{total} = 0.048 + 0.069 + 1.000 + 0.069 + 0.122 = 1.308 R t o t a l = 0.048 + 0.069 + 1.000 + 0.069 + 0.122 = 1.308
Thus,
U = 1 1.308 ≈ 0.765 W/m² °C U = \frac{1}{1.308} \approx 0.765 \text{ W/m² °C} U = 1.308 1 ≈ 0.765 W/m² °C
Calculate the cost of heat loss annually through the external walls for the new house Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Using the U-value calculated above, apply the formula:
Heat loss = U × A × Δ T × t \text{Heat loss} = U \times A \times \Delta T \times t Heat loss = U × A × Δ T × t
Where:
U = 0.765 U = 0.765 U = 0.765 A = 150 A = 150 A = 150 Δ T = 20 − 6 = 14 \Delta T = 20 - 6 = 14 Δ T = 20 − 6 = 14 t = 35 weeks = 35 × 7 × 8 hours = 1960 hours = 7056000 seconds t = 35 \text{ weeks} = 35 \times 7 \times 8 \text{ hours} = 1960 \text{ hours} = 7056000 \text{ seconds} t = 35 weeks = 35 × 7 × 8 hours = 1960 hours = 7056000 seconds
Calculating heat loss:
Heat loss = 0.765 × 150 × 14 × 1960 ≈ 1639062 joules \text{Heat loss} = 0.765 \times 150 \times 14 \times 1960 \approx 1639062 \text{ joules} Heat loss = 0.765 × 150 × 14 × 1960 ≈ 1639062 joules
Substituting into cost calculations with given prices, total cost is approximately €44.60.
Calculate the cost of heat loss annually through the external walls for the existing house Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
For the existing house with a U-value of 0.21 W/m² °C, use the same formula:
Cost = 0.21 × 150 × 14 × 1960 \text{Cost} = 0.21 \times 150 \times 14 \times 1960 Cost = 0.21 × 150 × 14 × 1960
Performing the calculation:
Cost ≈ 79.13 € \text{Cost} \approx 79.13 € Cost ≈ 79.13€
Design detailing to prevent the ingress of water Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
To detail the window head:
Ensure the window sill extends outwards to divert water.
Implement a flashing above the window to shed water away from the wall.
Use a drip edge at the bottom of the flashing to redirect water.
Incorporate weep holes in the masonry to allow moisture drainage.
Freehand sketches should illustrate these elements effectively.
