The drawing shows the elevation of a detached house and the plan of its first floor - Leaving Cert Construction Studies - Question 3 - 2019
Question 3

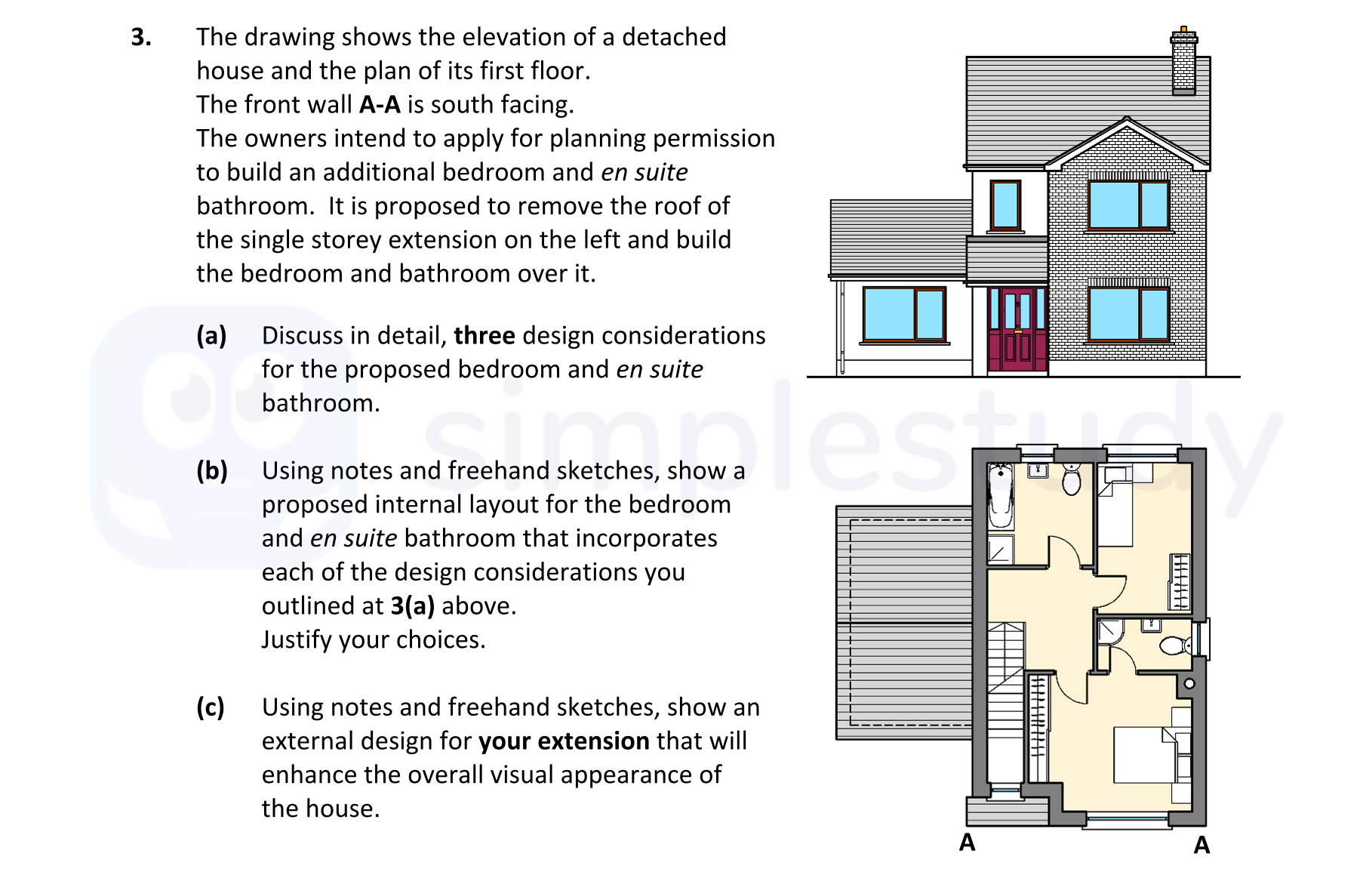

The drawing shows the elevation of a detached house and the plan of its first floor. The front wall A-A is south facing. The owners intend to apply for planning perm... show full transcript
Worked Solution & Example Answer:The drawing shows the elevation of a detached house and the plan of its first floor - Leaving Cert Construction Studies - Question 3 - 2019
Step 1
Discuss in detail, three design considerations for the proposed bedroom and en suite bathroom.
Answer
-
Furniture Layout: The layout of the furniture, including the bed, bedside lockers, wardrobe, and dressing table, should be planned around the primary circulation routes. This ensures that the space is used efficiently and is easily accessible. Additionally, the integration of storage solutions such as built-in wardrobes can help in optimizing the available area, ensuring a clutter-free environment.
-
Access & Escape: It's crucial to design the bedroom and en suite bathroom with appropriate access points, especially concerning emergency escape routes. A direct route to a window or door that leads to the outside can be vital for safety. The placement of the en suite should ensure that it does not compromise the exit routes from the bedroom.
-
Natural Light and Ventilation: Incorporating windows that allow natural light to fill the room will create an open and welcoming atmosphere. Moreover, ensuring proper ventilation is essential for maintaining air quality, especially in the bathroom area. This could be achieved through strategically placed windows and vents.
Step 2
Using notes and freehand sketches, show a proposed internal layout for the bedroom and en suite bathroom that incorporates each of the design considerations you outlined at 3(a). Justify your choices.
Answer
The proposed layout includes:
- Bedroom Area: Positioned to maximize light from the south-facing windows, the bed is centrally located with bedside tables on each side for easy access. A dresser is placed against the wall near the door to maintain circulation space.
- En Suite Bathroom: Adjacent to the bedroom, separated by a wall that provides privacy. It includes a shower, toilet, and sink, arranged to maximize accessibility. A window will provide natural ventilation and light.
This layout facilitates easy movement, ensuring all areas are functional and accessible while also being aesthetically pleasing.
Step 3
Using notes and freehand sketches, show an external design for your extension that will enhance the overall visual appearance of the house.
Answer
The external design proposes:
- Brick Facade: Matching the existing brickwork for visual consistency, the extension maintains the style of the original house.
- Roof Pitch: The same pitch as the existing house ensures harmony in the overall design. It also allows for better water drainage.
- Window Arrangement: Windows will be strategically placed to maintain symmetry while allowing natural light. The design reflects a contemporary approach while complementing the traditional elements of the original structure.
This design not only adheres to aesthetic guidelines but also respects the architectural integrity of the property.
