A front porch with a tiled roof is shown in the sketch - Leaving Cert Construction Studies - Question 1 - 2015
Question 1

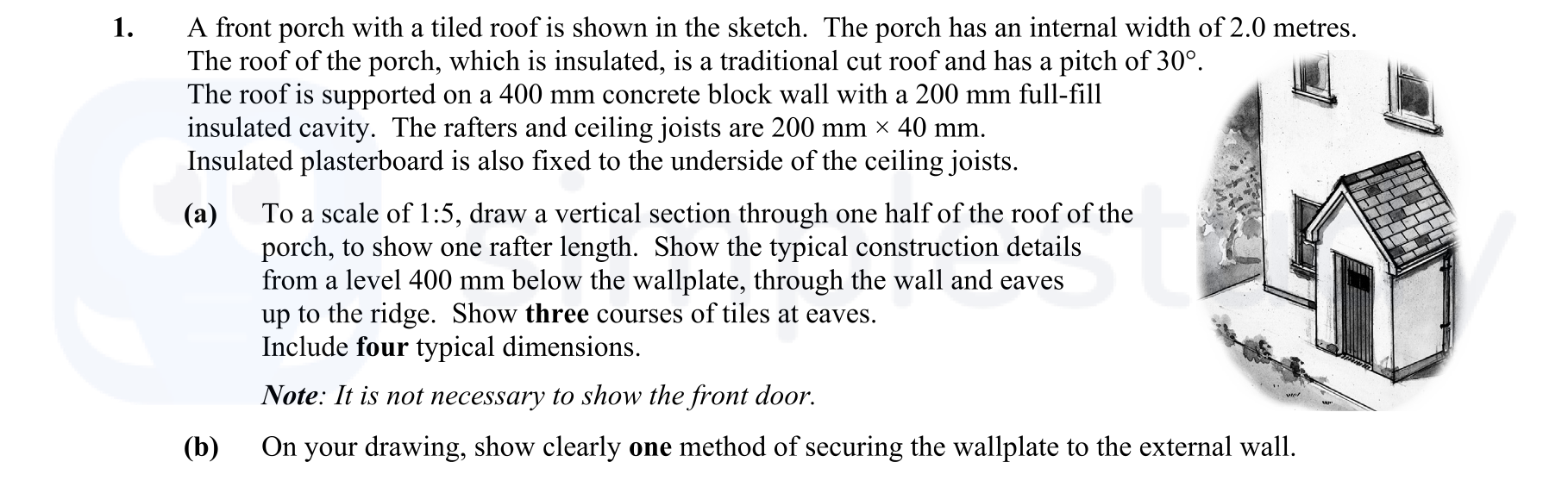

A front porch with a tiled roof is shown in the sketch. The porch has an internal width of 2.0 metres. The roof of the porch, which is insulated, is a traditional cu... show full transcript
Worked Solution & Example Answer:A front porch with a tiled roof is shown in the sketch - Leaving Cert Construction Studies - Question 1 - 2015
Step 1
On your drawing, show clearly one method of securing the wallplate to the external wall.
Answer
-
To illustrate one method of securing the wallplate to the external wall, you can depict L-shaped stainless steel straps.
-
These straps should be shown fixed to both the wall and the wallplate. Indicate:
- Position of the strap, ensuring it is anchored into the concrete block wall.
- Attach the strap securely around the wallplate to resist lateral forces.
-
Make sure the straps are dimensioned as per structural standards, ensuring compliance with current building regulations.
