Leaving Cert Construction Studies Question One Drawing Questions: A kitchen has a solid concrete g

Question

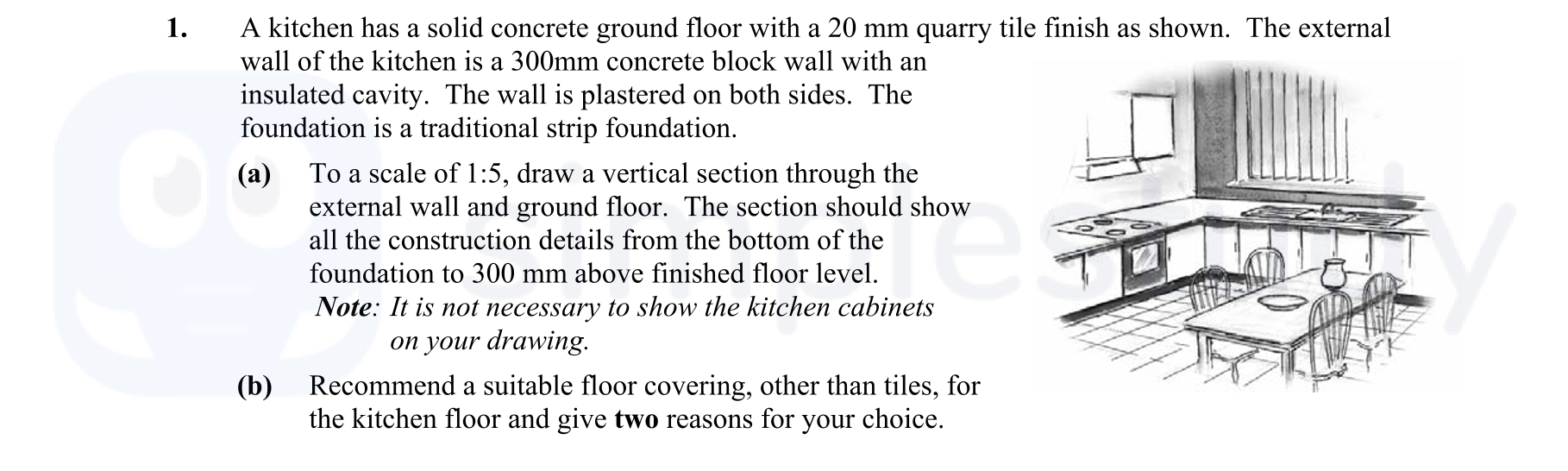

A kitchen has a solid concrete ground floor with a 20 mm quarry tile finish as shown. The external wall of the kitchen is a 300mm concrete block wall with an insulated cavity. The wall is plastered on both sides. The foundation is a traditional strip foundation.

(a) To a scale of 1:5, draw a vertical section through the external wall and ground floor. The section should show all the construction details from the bottom of the foundation to 300 mm above finished floor level.
Note: It is not necessary to show the kitchen cabinets on your drawing.

(b) Recommend a suitable floor covering, other than tiles, for the kitchen floor and give two reasons for your choice.

A kitchen has a solid concrete ground floor with a 20 mm quarry tile finish as shown - Leaving Cert Construction Studies - Question 1 - 2007

Worked Solution & Example Answer:A kitchen has a solid concrete ground floor with a 20 mm quarry tile finish as shown - Leaving Cert Construction Studies - Question 1 - 2007

Recommend a suitable floor covering, other than tiles, for the kitchen floor and give two reasons for your choice.
