Discuss in detail, three considerations when designing the layout for sockets in the electrical system of a domestic house - Leaving Cert Construction Studies - Question 9 - 2021

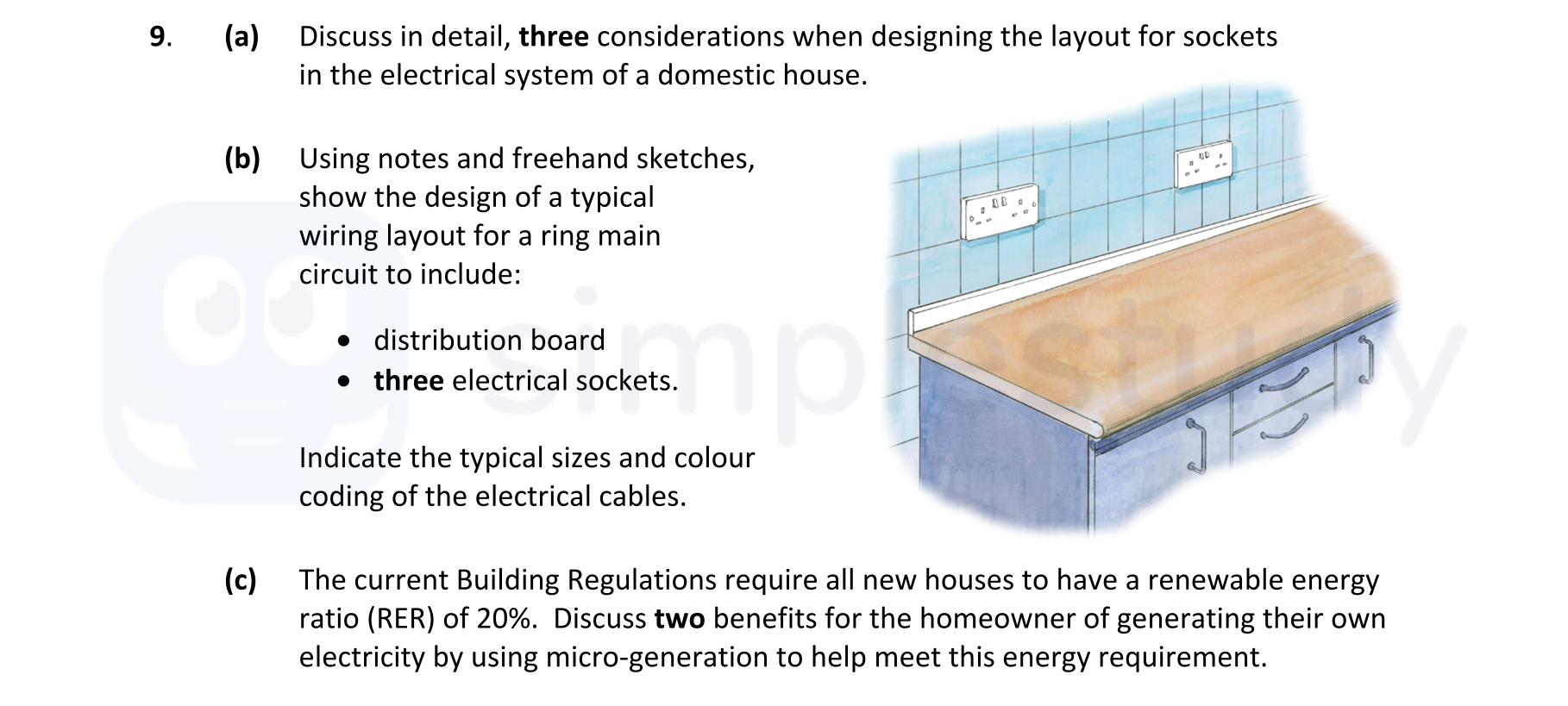

Question 9
Discuss in detail, three considerations when designing the layout for sockets in the electrical system of a domestic house. Using notes and freehand sketches, show ... show full transcript
Worked Solution & Example Answer:Discuss in detail, three considerations when designing the layout for sockets in the electrical system of a domestic house - Leaving Cert Construction Studies - Question 9 - 2021
Step 1
Discuss in detail, three considerations when designing the layout for sockets in the electrical system of a domestic house.
Answer
When designing the layout for sockets in the electrical system of a domestic house, several important considerations must be taken into account:
1. Socket Layout
- Positioning: The position of all sockets should be carefully considered based on the use of the room and future requirements. Commonly, sockets should be placed within easy reach of users and furniture arrangements.
- Height: The recommended height for socket outlets is between 900mm and 1200mm above the floor level to ensure accessibility and usability.
- Quantity: The number of sockets per room depends on the expected usage, taking into account future needs and the cost associated with installation. It is essential to prevent overloading circuits.
2. Safety
- Standards Compliance: All sockets should comply with current safety standards to protect users against electric shock and fire hazards. For example, they must be connected to a miniature circuit breaker (MCB) that protects against overcurrent.
- Residual Current Device (RCD): Utilizing RCDs ensures that the circuit will disconnect automatically in the event of a fault, preventing potential injuries.
3. Distribution Board
- Accessibility: The distribution board must be conveniently located for easy access by electricians for maintenance or in case of troubleshooting. It should enable effective management of the electrical systems in the home.
- Circuit Management: It is crucial to ensure that the electrical system allows for easy identification of circuits, which is essential during faults or repairs.
Step 2
Using notes and freehand sketches, show the design of a typical wiring layout for a ring main circuit to include: distribution board, three electrical sockets.
Answer
The typical wiring layout for a ring main circuit can be illustrated with a simple diagram that includes:
- Distribution Board: Positioned centrally to allow easy access. It distributes power to various circuits, including the ring main.
- Ring Main Circuit: The layout should include at least three electrical sockets connected in a ring formation. It allows for a continuous loop from the distribution board to the sockets and back.
- Wiring: The circuit generally uses 2.5 mm² insulated cable, typically composed of:
- Live Wire: Brown/Red
- Neutral Wire: Blue
- Earth Wire: Green and Yellow
Sketch Description:
- Draw a rectangle to represent the room, and label the position of the distribution board.
- Indicate wires connecting each socket back to the distribution board in a continuous loop.
- Clearly label each socket and indicate the color coding of the wires.
Step 3
Discuss two benefits for the homeowner of generating their own electricity by micro-generation.
Answer
Generating electricity through micro-generation offers several advantages for homeowners:
1. Cost Reduction
- Lower Electricity Bills: By producing their own electricity, homeowners can significantly reduce their monthly electricity expenditure. This is especially beneficial during peak usage times when rates are higher.
- Sell Back Excess Power: Any surplus electricity generated can often be sold back to the national grid, providing an additional income stream which further supports financial sustainability.
2. Environmental Impact
- Carbon Footprint Reduction: Homeowners utilizing micro-generators, such as solar panels or wind turbines, contribute to a decrease in the household's carbon emissions. This promotes a cleaner environment and helps combat climate change.
- Independence from the Grid: Generating their own electricity provides homeowners with greater independence from the primary coal-powered electricity grid, reducing reliance on conventional power sources and enhancing energy security.
