The top portion of an open riser timber stairs is shown in the accompanying sketch - Leaving Cert Construction Studies - Question 7 - 2010
Question 7

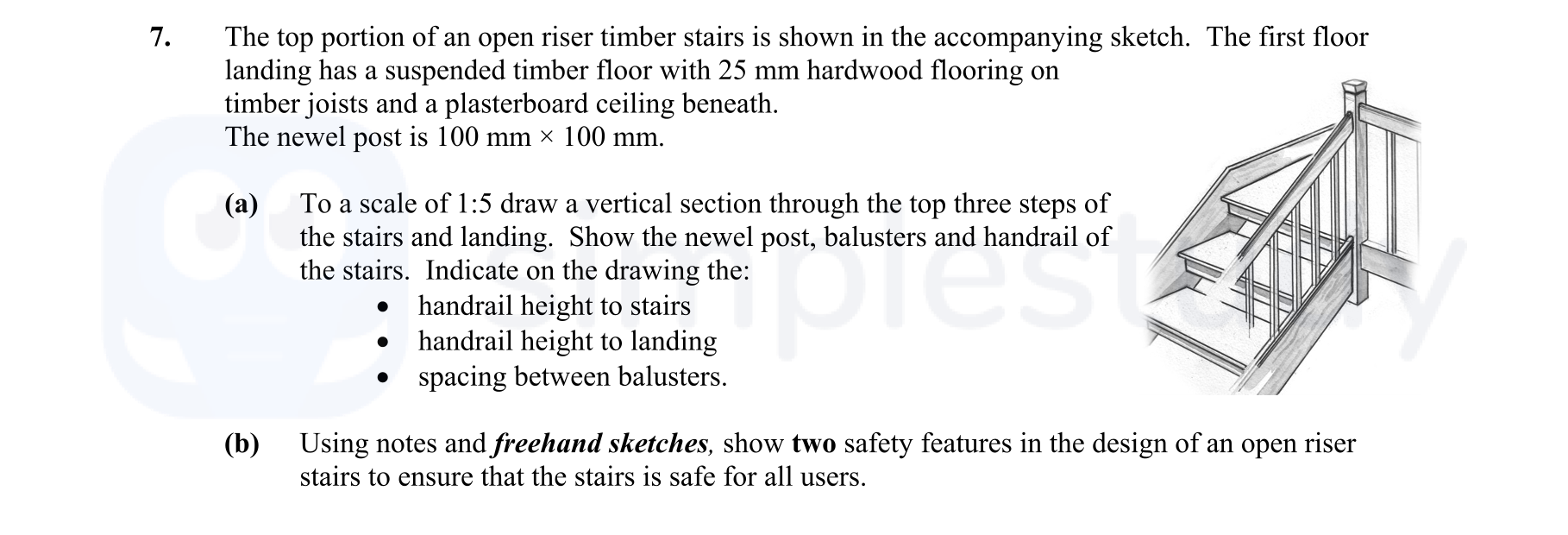

The top portion of an open riser timber stairs is shown in the accompanying sketch. The first floor landing has a suspended timber floor with 25 mm hardwood flooring... show full transcript
Worked Solution & Example Answer:The top portion of an open riser timber stairs is shown in the accompanying sketch - Leaving Cert Construction Studies - Question 7 - 2010
Step 1
handrail height to stairs
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The handrail height for stairs should typically be between 840 mm and 900 mm from the pitch line, ensuring it provides adequate support for users.
Step 2
handrail height to landing
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The handrail height at the landing should also be consistent with the height for the stairs, which is between 840 mm and 900 mm, providing a safe and comfortable grip.
Step 3
spacing between balusters
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The spacing between balusters should be designed so that a 100 mm sphere cannot pass through, which typically results in a maximum spacing of 100 mm between balusters to ensure the safety of users, especially children.
Step 4
Safety Feature 1
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
One important safety feature is the going of the stairs, which should be a minimum of 220 mm. This width helps ensure that users have enough space for their feet while ascending or descending.
Step 5
Safety Feature 2
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Another key safety feature is that handrails should be provided on both sides of any stairs wider than 1000 mm. This provides additional support and safety for users.
