The main entrance door to a two-storey dwelling house is a high performance insulated wooden door, with vertical sheeting on both sides - Leaving Cert Construction Studies - Question 7 - 2018
Question 7

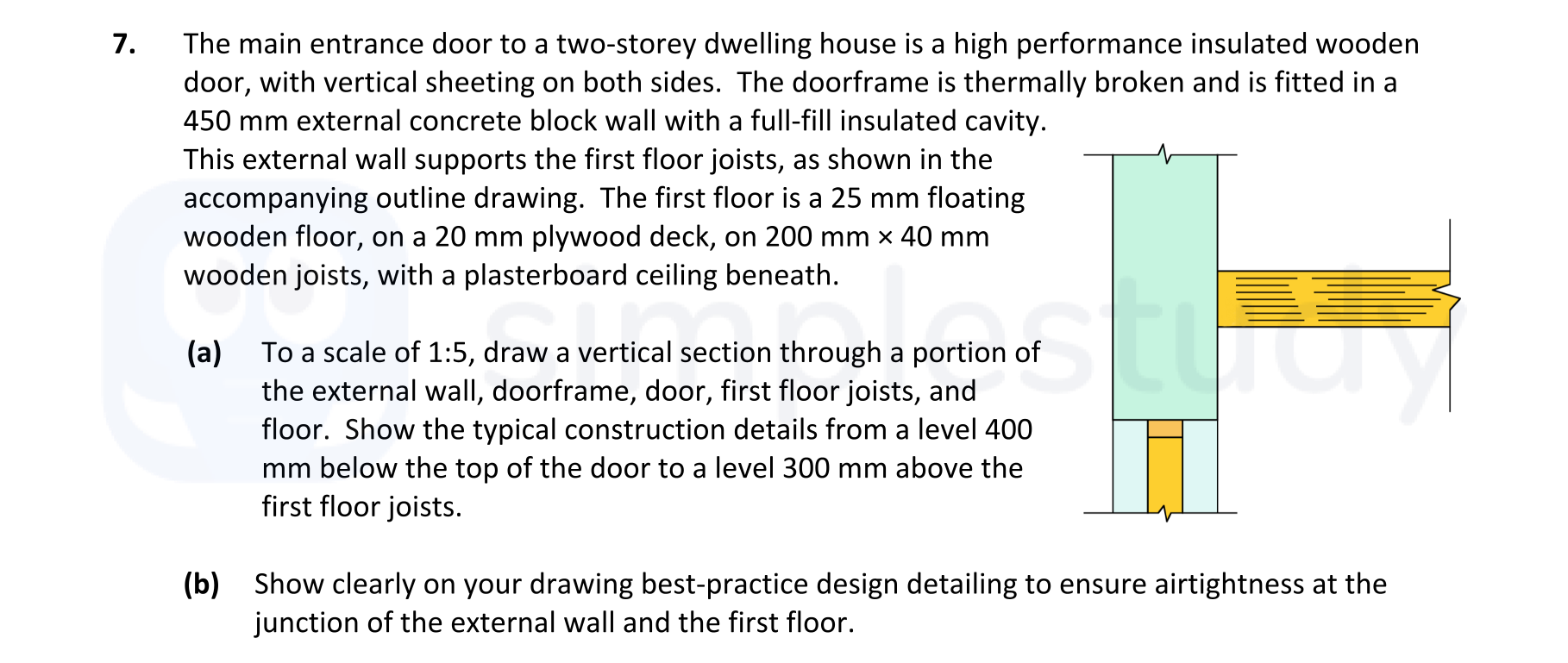

The main entrance door to a two-storey dwelling house is a high performance insulated wooden door, with vertical sheeting on both sides. The doorframe is thermally b... show full transcript
Worked Solution & Example Answer:The main entrance door to a two-storey dwelling house is a high performance insulated wooden door, with vertical sheeting on both sides - Leaving Cert Construction Studies - Question 7 - 2018
Step 1
Draw a vertical section through a portion of the external wall, doorframe, door, first floor joists, and floor
Answer
-
Begin by drawing the outline of the external wall, ensuring to incorporate the 450 mm concrete block wall as the base structure.
-
Add the doorframe, depicting the thermally broken frame and the vertical sheeting on both sides of the door.
-
Detail the door itself, showing any additional mechanisms or insulation present.
-
Illustrate the wooden joists, using 200 mm x 40 mm dimensions at 400 mm centers, supporting the 25 mm floating wooden floor.
-
Include the 20 mm plywood decking underneath the floating floor and the plasterboard ceiling beneath the joists.
-
Mark dimensions accurately to a scale of 1:5 for all components, ensuring clarity in the construction details from the specified levels.
-
Indicate the level 400 mm below the door top and the level 300 mm above the first floor joists to highlight the section range.
-
Ensure all components are labelled clearly within the diagram.
Step 2
Show clearly on your drawing best-practice design detailing to ensure airtightness at the junction of the external wall and the first floor.
Answer
-
Use airtightness tape at the junction where the external wall meets the floor joists to create a seal.
-
Incorporate a breather membrane that is sealed and taped around the joist area to prevent air leakage.
-
Ensure the insulation within the cavity is well fitted and continuous around the junction.
-
Show double rebatded door for draught proofing measures at the door location.
-
Highlight the use of a continuous draught strip along the edges of the door for enhanced airtightness.
-
Label all components that contribute to the airtightness design detailing to clarify their function in the structure.
