The sketch shows an open-plan kitchen and living room - Leaving Cert Construction Studies - Question 4 - 2022
Question 4

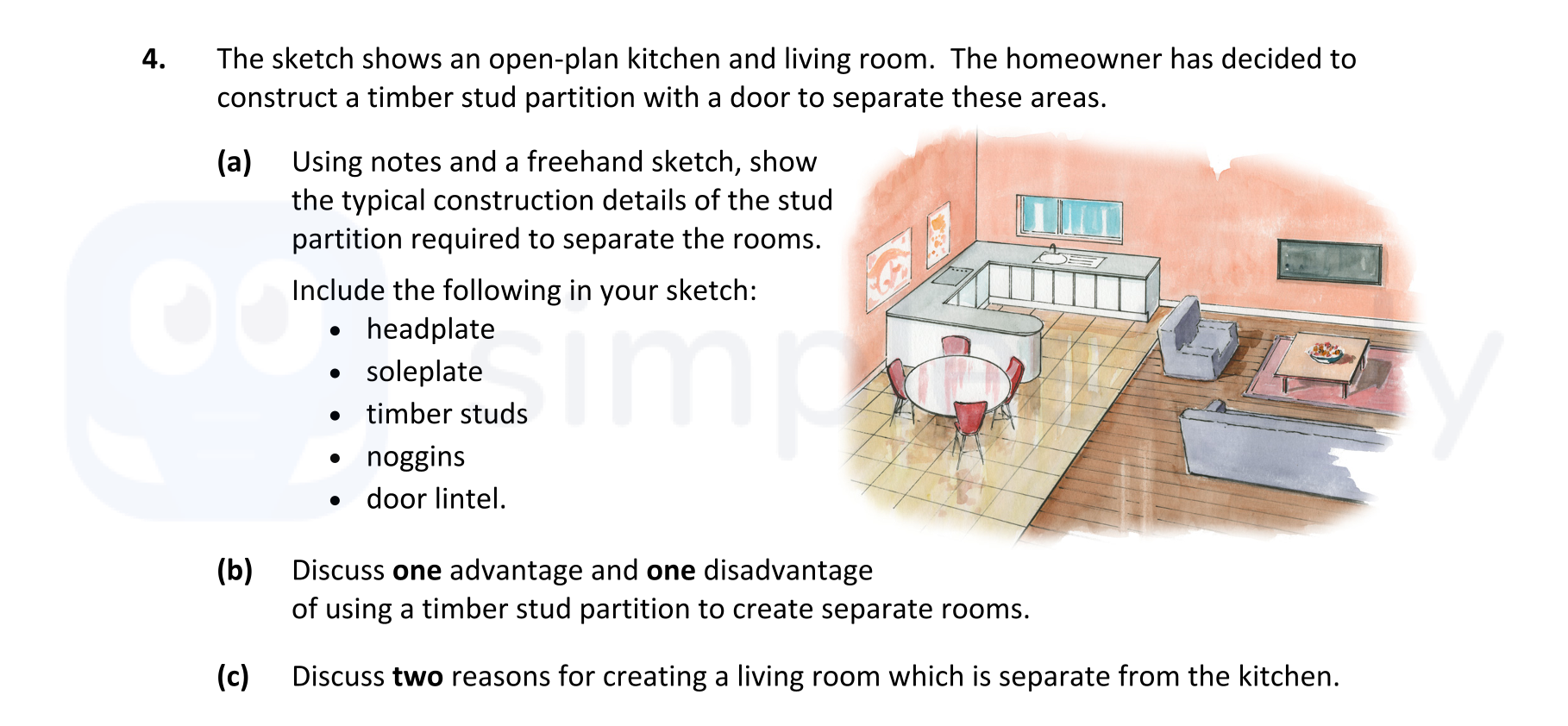

The sketch shows an open-plan kitchen and living room. The homeowner has decided to construct a timber stud partition with a door to separate these areas. (a) Using... show full transcript
Worked Solution & Example Answer:The sketch shows an open-plan kitchen and living room - Leaving Cert Construction Studies - Question 4 - 2022
Step 1
Using notes and a freehand sketch, show the typical construction details of the stud partition required to separate the rooms.
Answer
To illustrate the construction of the stud partition:
- Sole Plate: Draw the sole plate at the base, labeled with dimensions of 100 mm x 45 mm.
- Head Plate: At the top, sketch the head plate, also 100 mm x 45 mm.
- Timber Studs: Indicate vertical timber studs placed at regular intervals, each sized 100 mm x 45 mm.
- Noggins: Add noggins placed between the timber studs, which measure 100 mm x 45 mm, to provide extra support.
- Door Lintel: Above the door opening, sketch the door lintel, sized 100 mm x 45 mm, and label it appropriately.
- Door Jambs: Finally, add the door jambs supporting the door head, also measuring 100 mm x 45 mm.
Include accurate labeling and annotations in your sketch for clarity.
Step 2
Discuss one advantage and one disadvantage of using a timber stud partition to create separate rooms.
Answer
Advantage:
- Quick to Install: Timber stud partitions can be erected rapidly, reducing overall construction time.
Disadvantage:
- Difficult to Stop Sound Travelling Through: Timber partitions may not provide complete sound insulation, allowing noise to pass through more easily than solid wall materials.
Step 3
Discuss two reasons for creating a living room which is separate from the kitchen.
Answer
-
To Reduce Noise Pollution to the Living Room: Creating a separation can help minimize the sounds from cooking and kitchen activities.
-
Allow Privacy to the Occupants of Either Room: Having distinct spaces provides personal areas for family members, enhancing privacy while engaging in different activities.
