To a scale of 1:10, draw a vertical section through the window, the external wall and the roof of a timber-framed house, as shown in the sketch - Leaving Cert Construction Studies - Question 7 - 2006
Question 7

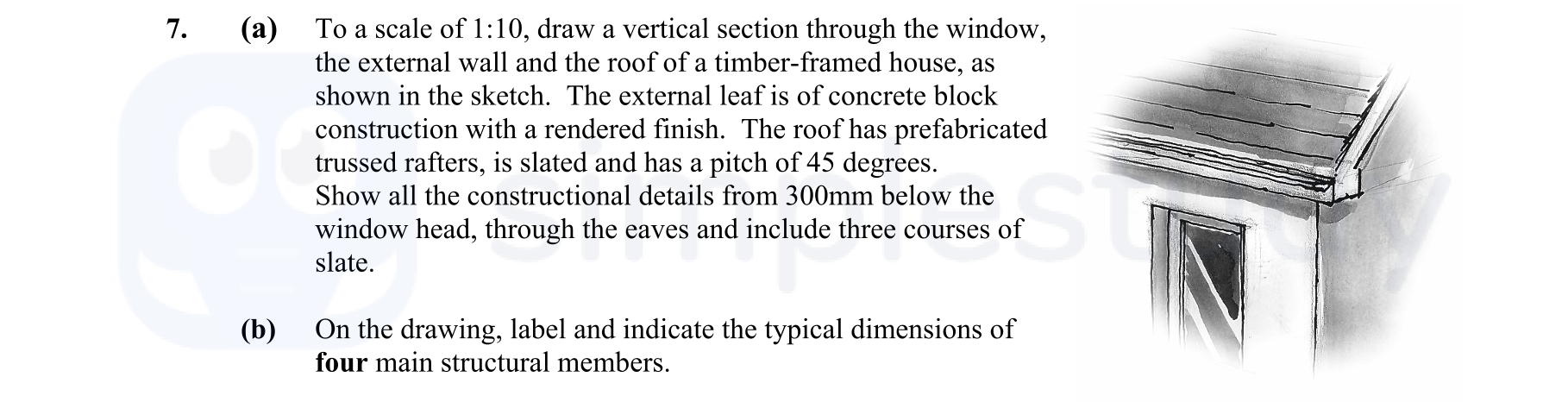

To a scale of 1:10, draw a vertical section through the window, the external wall and the roof of a timber-framed house, as shown in the sketch. The external leaf is... show full transcript
Worked Solution & Example Answer:To a scale of 1:10, draw a vertical section through the window, the external wall and the roof of a timber-framed house, as shown in the sketch - Leaving Cert Construction Studies - Question 7 - 2006
Step 1
Draw a vertical section through the window, the external wall and the roof
Answer
- Start by setting up your drawing scale at 1:10.
- Begin your drawing by sketching the window frame, ensuring that it is accurately represented with appropriate dimensions.
- Next, illustrate the external wall made of concrete blocks. Be sure to show the rendered finish on the blocks.
- Draw the roof structure, ensuring that you depict the prefabricated trussed rafters correctly and at a pitch of 45 degrees.
- Include the three courses of slating on the roof. Ensure the slates are drawn to scale and accurately reflect the material used.
Step 2
On the drawing, label and indicate the typical dimensions of four main structural members.
Answer
- Identify the four main structural members to be labeled, which may include:
- The Wall (external leaf)
- The Roof Truss
- The Window Frame
- The Dormer/Facade
- Mark each member clearly on the drawing with labeled dimensions. For example:
- For the Wall, indicate its thickness and height.
- For the Roof Truss, specify the height, width, and materials used.
- Indicate the dimensions of the window frame.
- Provide the dimensions of the facades or supports.
- Ensure that all labels are easy to read and that the dimensions are in accordance with standard construction practices.
