Details of a Security Camera Bracket, for mounting the two cameras shown, are given in Fig - Leaving Cert DCG - Question C-5 - 2018
Question C-5

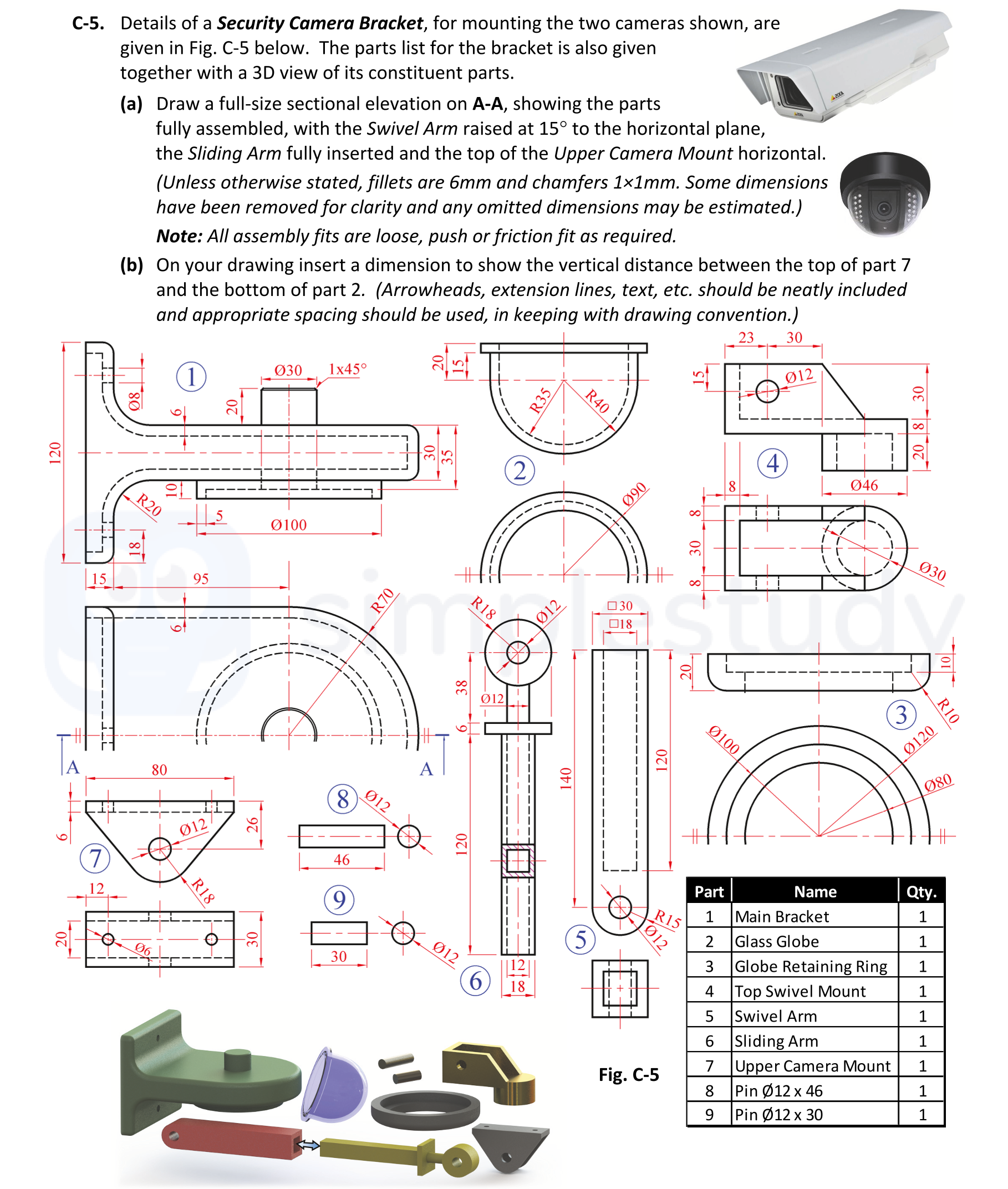

Details of a Security Camera Bracket, for mounting the two cameras shown, are given in Fig. C-5 below. The parts list for the bracket is also given together with a 3... show full transcript
Worked Solution & Example Answer:Details of a Security Camera Bracket, for mounting the two cameras shown, are given in Fig - Leaving Cert DCG - Question C-5 - 2018
Step 1
Draw a full-size sectional elevation on A-A
Answer
Begin by accurately sketching the full-size sectional elevation of the security camera bracket on line A-A. Ensure all parts, including the Swivel Arm, Sliding Arm, and Upper Camera Mount, are depicted in their correct positions. The Swivel Arm should be illustrated at a 15° angle from the horizontal. Include all dimensions as given, paying particular attention to fillets and chamfers as required.
Step 2
Insert a dimension to show the vertical distance between part 7 and part 2
Answer
Determine the vertical distance between the top of part 7 (the Upper Camera Mount) and the bottom of part 2 (the Globe). Use an appropriate dimensioning style that adheres to drawing conventions. Indicate this vertical distance clearly with a dimension line and arrowheads, ensuring spacing is visually appealing and consistent with the rest of the drawing.
