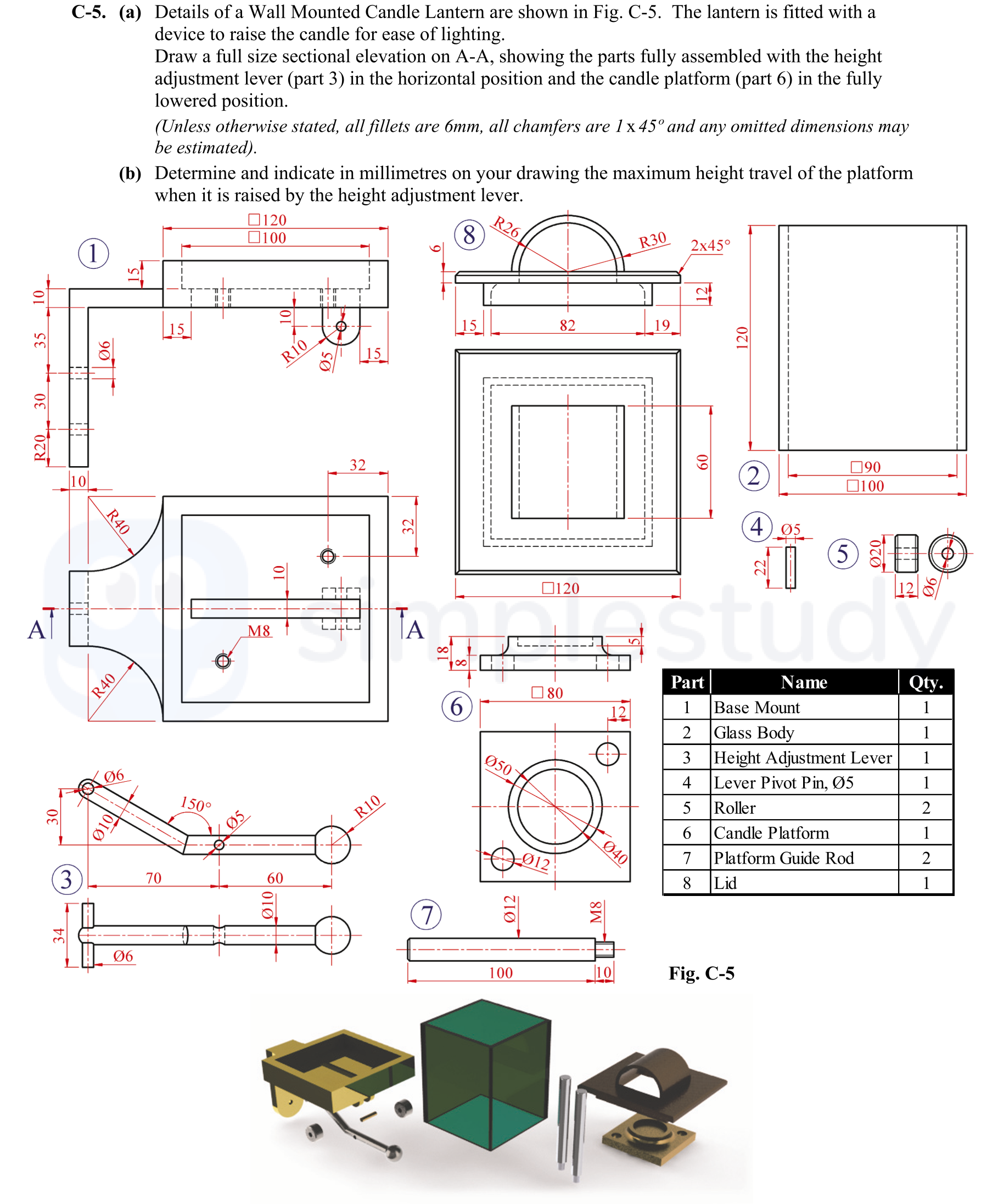

Details of a Wall Mounted Candle Lantern are shown in Fig. C-5. The lantern is fitted with a device to raise the candle for ease of lighting. Draw a full size sectional elevation on A-A, showing the parts fully assembled with the height adjustment lever (part 3) in the horizontal position and the candle platform (part 6) in the fully lowered position. (Unless otherwise stated, all fillets are 1.5x45° and any omitted dimensions may be estimated.) (b) Determine and indicate in millimetres on your drawing the maximum height travel of the platform when it is raised by the height adjustment lever.

Photo AI

Details of a Wall Mounted Candle Lantern are shown in Fig - Leaving Cert DCG - Question C-5 - 2013

Question C-5

Details of a Wall Mounted Candle Lantern are shown in Fig. C-5. The lantern is fitted with a device to raise the candle for ease of lighting. Draw a full size secti... show full transcript

Worked Solution & Example Answer:Details of a Wall Mounted Candle Lantern are shown in Fig - Leaving Cert DCG - Question C-5 - 2013

Step 1

Draw a full size sectional elevation on A-A

96%

114 rated

Answer

Begin by sketching the outline of the lantern as shown in Fig. C-5. Position the parts according to the component numbers and ensure that the height adjustment lever (part 3) is drawn in the horizontal position. Use detailed measurements from the figure for accuracy in dimensions. Include features such as the glass body, base mount, and candle platform.

Step 2

indicating assembled parts

99%

104 rated

Answer

Label each part according to its name and quantity as listed. Show the relative positioning of components clearly, making sure to align them properly. Reference dimensional details such as holes and edges to maintain proportionate positioning.

Step 3

Maximum height travel of platform

96%

101 rated

Answer

To determine the maximum height travel of the platform, calculate the total distance the height adjustment lever can raise the candle platform. Measure the maximum angle through which the lever can operate and translate that into vertical height based on the linkage system in place. Sketch this distance noted in millimeters on the drawing.
