The image below shows an artist's impression of a structure in the ‘Centre Parcs’ holiday resort, currently under construction in county Longford - Leaving Cert DCG - Question A-4 - 2019
Question A-4

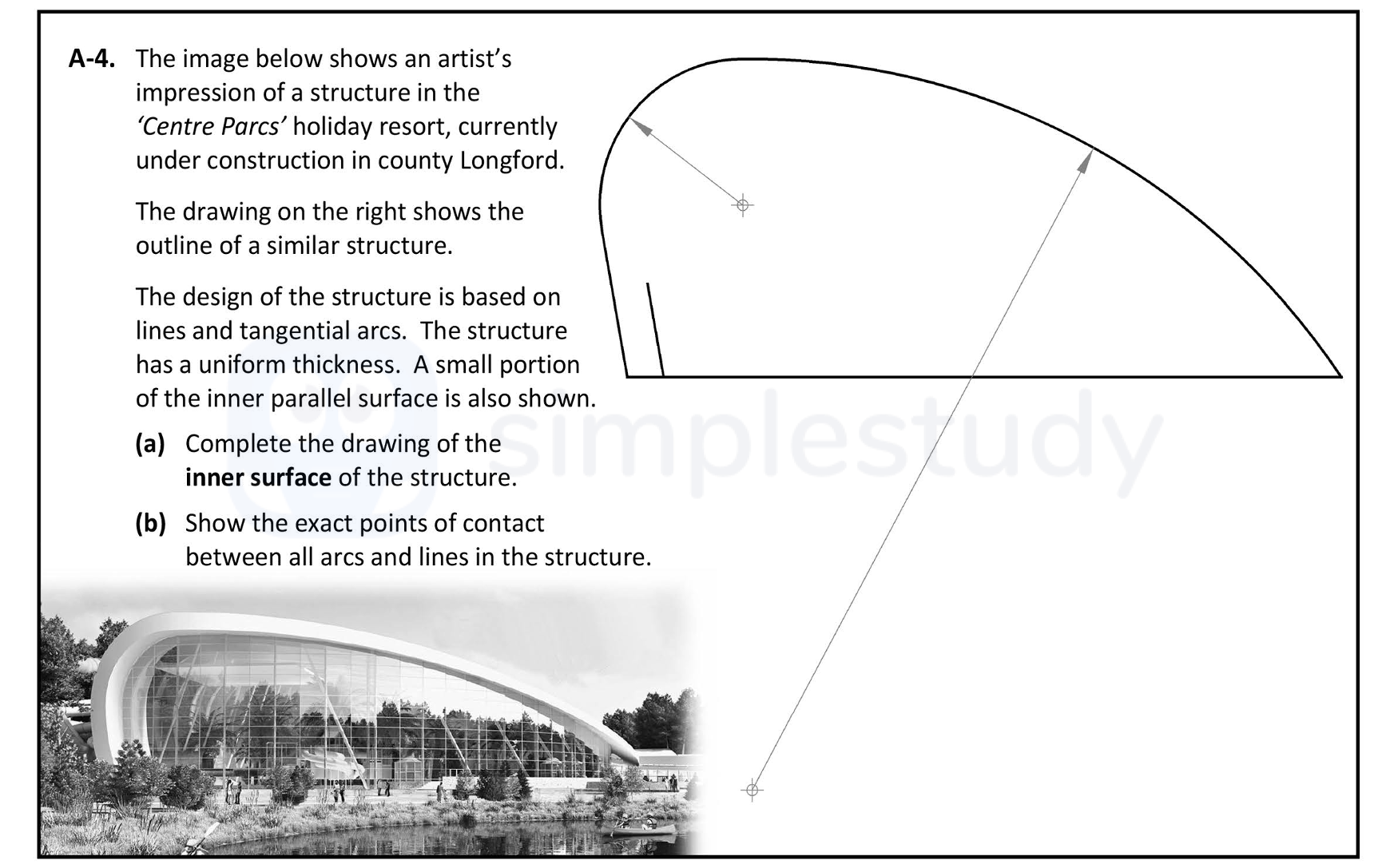

The image below shows an artist's impression of a structure in the ‘Centre Parcs’ holiday resort, currently under construction in county Longford.
The drawing on th... show full transcript
Worked Solution & Example Answer:The image below shows an artist's impression of a structure in the ‘Centre Parcs’ holiday resort, currently under construction in county Longford - Leaving Cert DCG - Question A-4 - 2019
Step 1
Mark the correct thickness of the structure
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To indicate the correct thickness of the structure, draw two parallel lines along the outer edge of the arc, maintaining a consistent distance that represents the structural thickness. Ensure the thickness is visually proportional to the overall drawing.
Step 2
Complete the drawing of the inner surface
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Extend the inner arc parallel to the outer arc, ensuring it follows the same curvature and connects seamlessly to the marked thickness lines. The inner surface should be drawn in a smooth, continuous manner, reflecting the artist's original design.
Step 3
Construct an establishing point of contact
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To establish points of contact for the structure, identify where the arcs intersect with the vertical and horizontal lines. Mark these intersection points clearly for clarity in the drawing.
Step 4
Define points of contact on the inner surface
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The points of contact on the inner surface should be marked where the inner arc meets the vertical lines, highlighting critical structural connections. Ensure these points are accurately indicated for precise representation.
Step 5
Define points of contact on the outer surface
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
On the outer surface, indicate the contact points where the outer arc meets the surrounding lines. Clearly mark these locations to emphasize structural integrity.
Step 6
Presentation
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Ensure the lines are drawn cleanly with a steady hand, maintaining consistency in thickness throughout. Label each part clearly and use a ruler for straight lines to enhance the overall presentation and professionalism of the drawing.
