The accompanying map, located on the back page of Section A, shows ground contours at 5 metre vertical intervals - Leaving Cert DCG - Question C-1 - 2016

Question icon

Question C-1

The-accompanying-map,-located-on-the-back-page-of-Section-A,-shows-ground-contours-at-5-metre-vertical-intervals-Leaving Cert DCG-Question C-1-2016.png

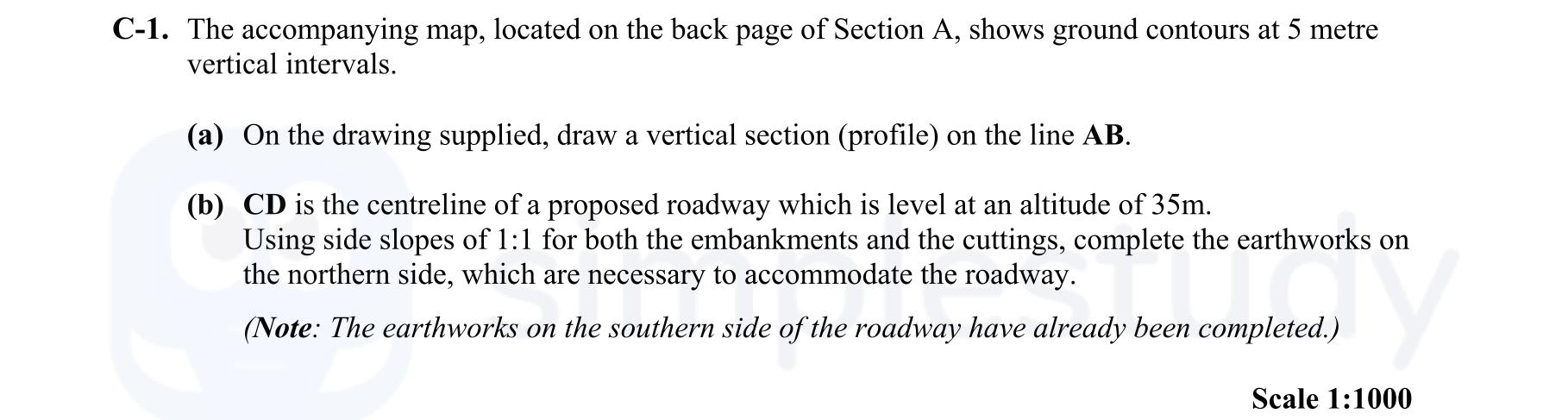

The accompanying map, located on the back page of Section A, shows ground contours at 5 metre vertical intervals. (a) On the drawing supplied, draw a vertical secti... show full transcript

Worked Solution & Example Answer:The accompanying map, located on the back page of Section A, shows ground contours at 5 metre vertical intervals - Leaving Cert DCG - Question C-1 - 2016

Step 1

Draw a vertical section (profile) on the line AB

96%

114 rated

Answer

To draw the vertical section along line AB, follow these steps:

  1. Measure Heights: Begin by measuring the heights at the intersection of line AB with the contour lines on the map. For every 5-meter interval, draw a horizontal line.
  2. Projection from Contours: Project the intersection points between line AB and the contour lines down to your horizontal lines, marking the corresponding height values.
  3. Outline the Profile: Connect the points smoothly to represent the profile. Ensure to maintain the scale used in the original map.

Step 2

Using side slopes of 1:1, complete the earthworks on the northern side

99%

104 rated

Answer

To complete the earthworks:

  1. Determine Cut/Fill: Identify where the proposed roadway (CD) is situated at an altitude of 35m. Compare this with the existing ground profile determined in part (a).
  2. Identify Points on Cutting Curve: For the areas where cutting is required, use a slope of 1:1 (1m vertical drop for every 1m horizontal) to mark points on the cutting curve extending outward from the edge of the roadway.
  3. Identify Points on Embankment Curve: Likewise, for embankments, ensure to extend from the roadway's edge to create points along the embankment slope using the same 1:1 slope ratio.
  4. Draw Earthworks Curves: Finally, connect these identified points to clearly illustrate the required earthworks for both the cuttings and embankments, ensuring the curves are smooth and represent the intended transitions.
