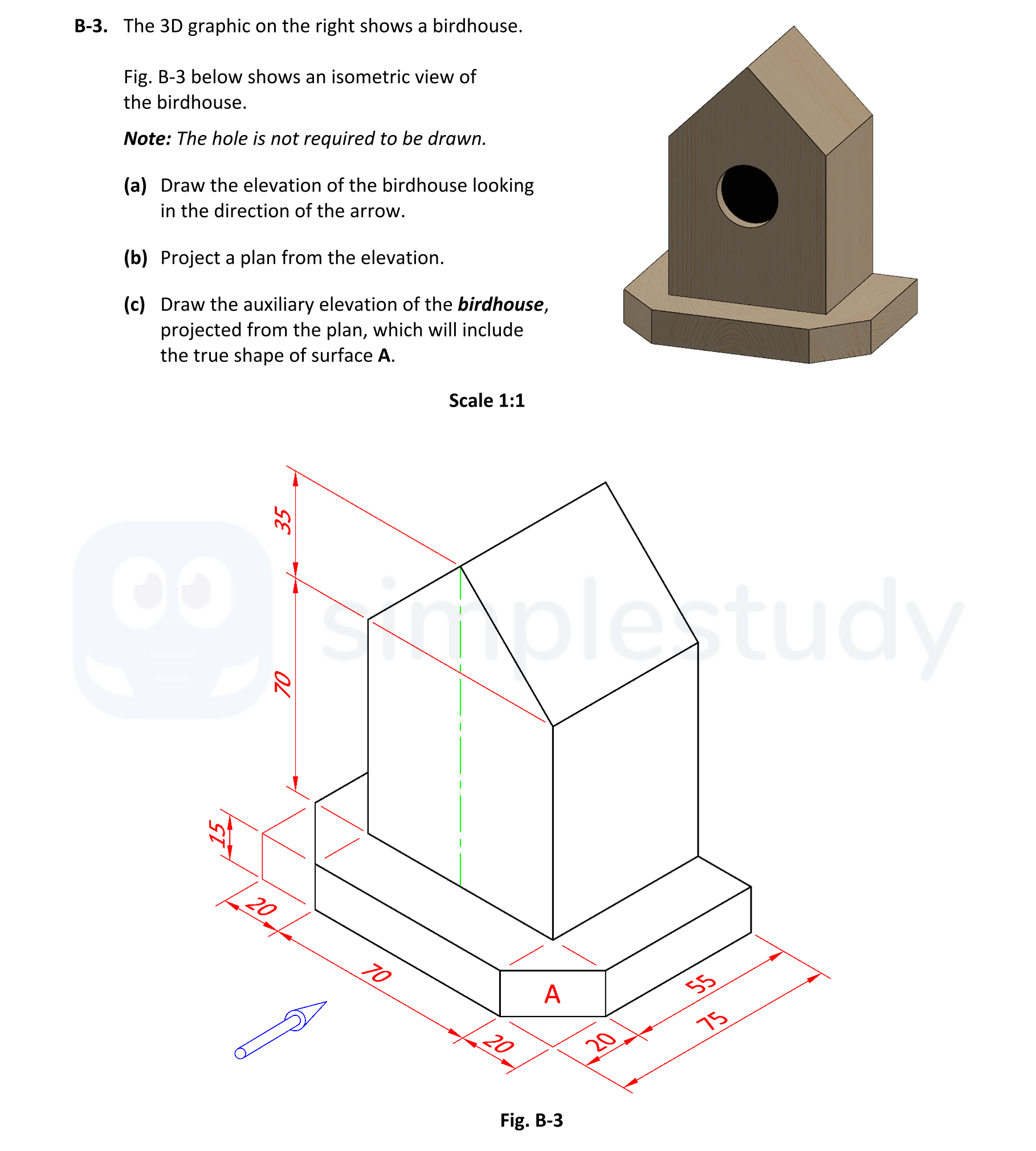

The 3D graphic on the right shows a birdhouse. Fig. B-3 below shows an isometric view of the birdhouse. Note: The hole is not required to be drawn. a) Draw the el... show full transcript

Worked Solution & Example Answer:The 3D graphic on the right shows a birdhouse - Leaving Cert DCG - Question B-3 - 2022

Step 1

Draw the elevation of the birdhouse looking in the direction of the arrow.

96%

114 rated

Answer

To draw the elevation of the birdhouse:

  1. Draw Base of Birdhouse:

    • Start by sketching a rectangle for the base, which measures 70mm x 55mm as per the isometric view.
  2. Outline of Top:

    • From the top corners of the base rectangle, draw two vertical lines at the respective heights from the isometric view.
    • Create a triangular shape for the top, indicating the sloping roof.
  3. Complete Elevation:

    • Add details such as thickness of the walls and any relevant features like the hole outline (if it were to be included).
    • Ensure that the elevation perspective matches the indicated direction in the graphic.

Step 2

Project a plan from the elevation.

99%

104 rated

Answer

To project the plan from the elevation:

  1. Draw Base:

    • Begin with a rectangle as the base of the birdhouse, maintaining the same dimensions used in the elevation.
  2. Outline of Top:

    • Sketch the outline of the roof, using the top edge of the elevation for reference.
  3. Complete Plan:

    • Combine all elements for a comprehensive plan view, making sure to reflect any inclination and relevant features observed in the elevation.

Step 3

Draw the auxiliary elevation of the birdhouse, projected from the plan.

96%

101 rated

Answer

To draw the auxiliary elevation:

  1. X1Y1 Line Parallel to Plan of Surface A:

    • Draw a horizontal line that is parallel to the base of the birdhouse at the point of surface A, this creates the foundation for projections.
  2. Projections from Plan:

    • Project vertical lines from the plan onto the X1Y1 line representing the heights of relevant features.
  3. Transfer of Heights from Elevation:

    • Measure and transfer the height dimensions from the previously drawn elevation to the auxiliary elevation.
  4. Draw Surface A:

    • Sketch the shape of surface A, making sure it aligns with the projected heights and retains accurate proportions.
  5. Complete Auxiliary Elevation:

    • Bring together all lines and features into a fully structured view of the auxiliary elevation, ensuring that surface A is depicted accurately.
    • Maintain neatness and clarity in representation.
